LED strip controller AGGE RGB+CCT Color Controller, RF 2.4 GHz

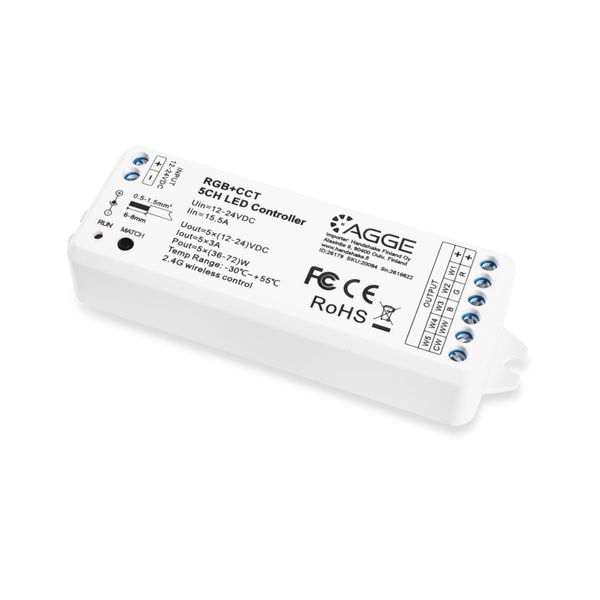

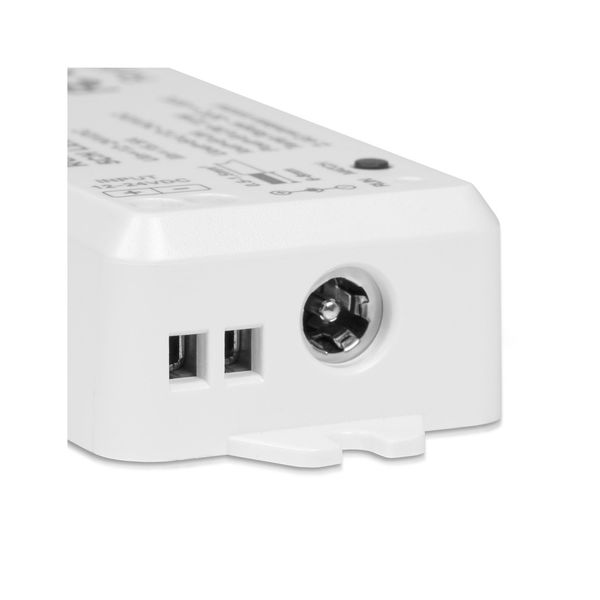

AGGE RGB+CCT Color Controller is a control unit for LED strips with adjustable color temperature and RGB colors, which enables completely stepless brightness, color temperature and light color adjustment of the strip, as well as remote control with a remote control. The controller is installed between the strip and the transformer/power supply so that the transformer is connected to the ready-made connector (or INPUT connectors) of the control unit and the wires of the strip are connected to the OUTPUT connectors of the control unit. After this, the control unit receives commands from the remote control to change the light output, color temperature or color of the strip and adjust the lighting. The control unit operates at a 2.4 GHz radio frequency and can be connected to any remote control operating at the same frequency. In an unobstructed area, the controller has a detection range of 30 meters. The control unit has built-in protection mechanisms against overheating, overload, short circuits and reverse polarization. Intended for dry indoor use (IP20). Two-year (24 months) warranty!

One RGB+CCT Color Controller can handle a maximum load of 5x3A. You can check the table below to see how many LED strips can be connected behind this control unit.

Note! From the product options, you can choose either just the control unit or a complete set, which includes, in addition to the control unit, a remote control of your choice designed for controlling RGB+CCT light strips. Below you can see pictures of the different remote control options:

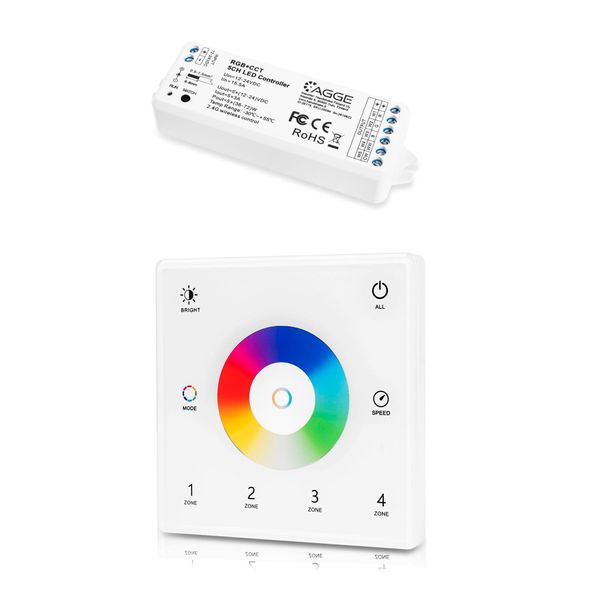

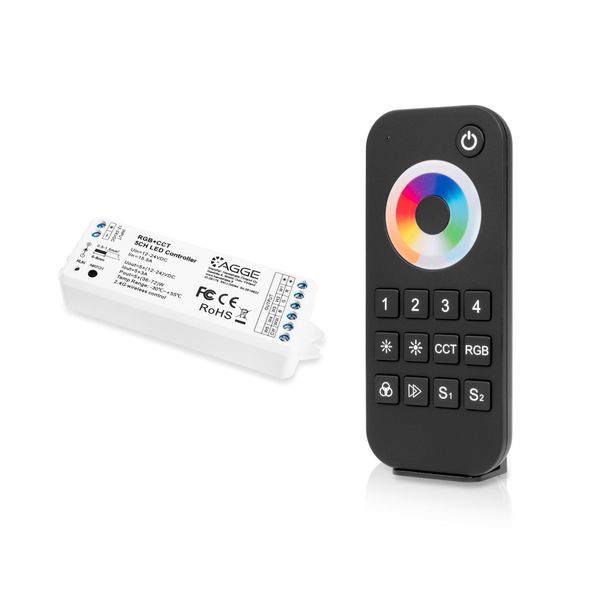

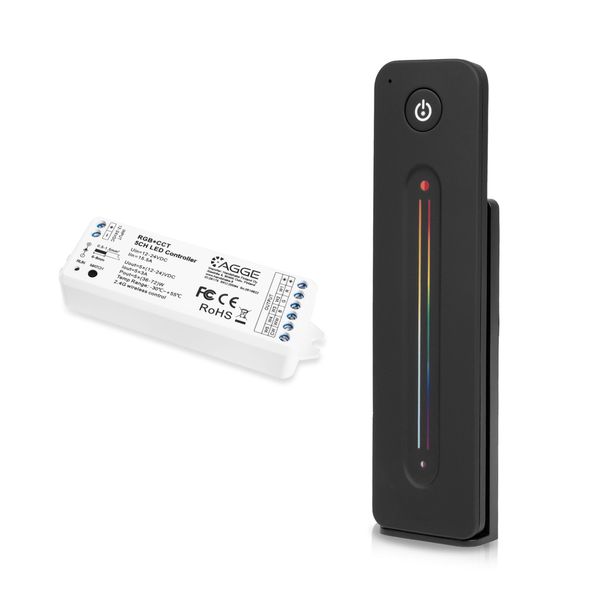

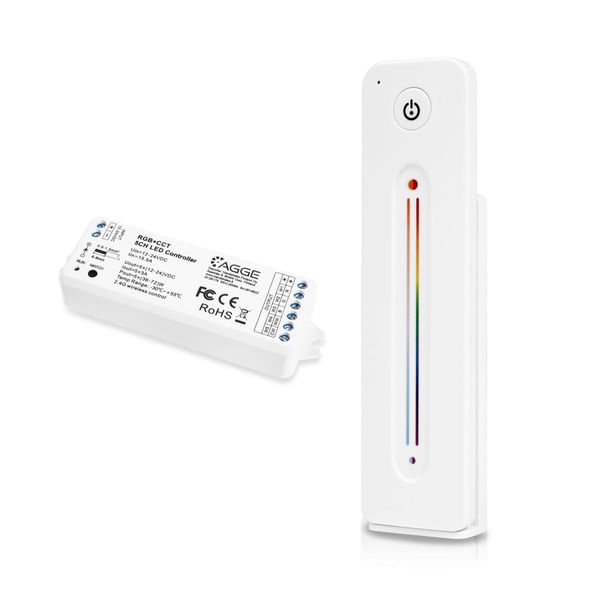

AGGE RGB+CCT Touch Wheel	AGGE RGB+CCT Touch Slide	AGGE RGB+CCT Touch Slide	AGGE RGB+CCT Wall Mount Touch Panel 4-zones

If you want to control the strip with both a phone and a remote, choose this combination controller.

If you have a single-color LED strip or an LED strip with adjustable color temperature, you can find the appropriate control units for them below:

• Control unit AGGE Single Color Color Controller
• Control unit AGGE CCT Color Controller

Specifications

• Product: AGGE RGB+CCT Controller
• Purpose: Control of LED strip functions
• Operating voltage: 12-24V
• Maximum load: 5x3A
• Operating range: 30 m
• Compatible with RGB+CCT light strips
• Operates on 2.4 GHz radio frequency
• Dimensions: 97 x 33 x 18 mm (Width x Height x Depth)
• Operating temperature: -30°C - +55°C
• IP rating: IP20
• Approvals: CE, RoHS, RED
• Control unit electrical number: 2619822
• Control unit SKU: 20094
• Warranty: 24 months

Quick Guide

Install the LED strip in place. Install the transformer/power supply in place and make sure that the wires reach from the transformer to the strip. Connect the power supply to the INPUT connector on the controller and the light strip to the OUTPUT connector. Connect the transformer to a wall outlet or, in the case of a fixed installation, connect it to the mains. Pair the desired remote control with the controller according to the remote control instructions and ensure that the connections are functional.

Note: An unlimited number of control units can be connected to one remote control, and 10 remote controls can be connected to one control unit.

You can find manufacturer's user manual by clicking here.
