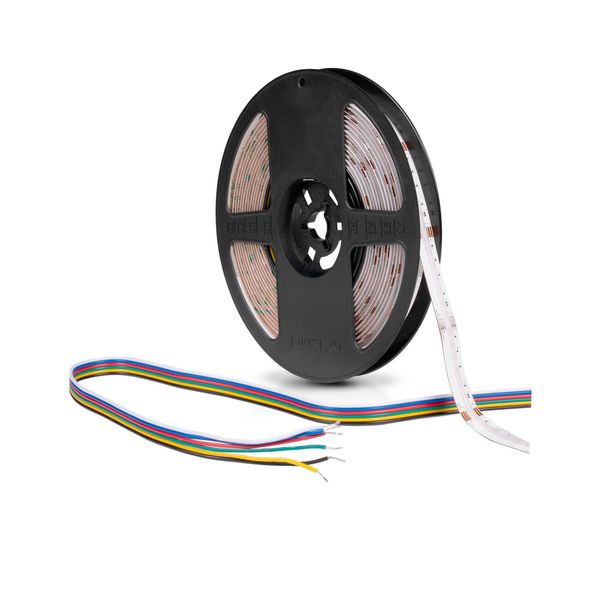

LED strip AGGE COB 24V RGB+CCT - 16W/m / 2700-6500K / IP20/IP65

• Adjustable color temperature (2700-6500K)
• RGB colors
• Light output: white 500 lm/m, colored 250 lm/m
• Color rendering index CRI>9 0
• Voltage 24V
• Length 500 cm
• 200 cm connecting cable at both ends of the strip
• Watertightness: IP20 or IP65

AGGE 24V CCT+RGB LED strip is a high-quality 16 W/m (760 lm/m) light strip for dry or damp spaces (choose IP20 or IP65). The strip is equipped with a continuously adjustable color temperature (2700-6500K) and a changeable light color (RGB). In terms of power and features, it is ideal for mood lighting or creating indirect lighting, e.g. on top of kitchen cabinets or ceiling structures. It can also be used as a backlight for furniture (headboards, chests of drawers, shelves, cabinets), and with the moisture-proof version, you can also create unique lighting in the bathroom or under sauna benches! As a COB type, the strip does not have individual LEDs visible, but rather it glows completely uniformly along its entire length, ensuring perfect spot-free and even lighting. The moisture-proof version is protected by high-quality, non-yellowing silicone, which cannot be distinguished from the tape with the naked eye, meaning that this tape can also be used in visible installations without fear of an unsightly end result. The tape can be shortened or extended and dimmed according to the need for use. Available in 500 cm rolls, suitable for either dry or damp rooms.

All AGGE 24V strips have a very high color rendering index (CRI>90), which means that colors are reproduced naturally and clearly. This is especially important indoors, as the colors of surfaces and furniture are reproduced exactly as they should be, and the lighting does not change the tone in one direction or the other. The strip's 24V operating voltage is a more energy-efficient option than traditional 12V strips, as the 24V strip halves the amount of current flowing in the strip, which results in less current loss. In addition, the 24V operating voltage also enables longer installations without voltage loss and light dimming at the other end.

The 200 cm long connecting cables at both ends of the strip are features appreciated by professionals, which make installation easier and enable a neat installation, as the connections can be hidden from view. In addition, the strip has ready-made cutting points every 4.2 cm so modifying the strip is super easy. When power is supplied from one end, the entire 5-meter roll can be switched on without the strip dimming at any point. Longer installations of up to 10 meters can be carried out by supplying power to the strip from both ends. The moisture-proof strip is supplied with a shrink sleeve, which can be used to restore the watertightness of the cut strip. Installation is made easier by the strong 3M tape on the back of the tape, which allows the tape to be attached to practically anywhere. Two-year (24-month) warranty!

Below you can see images of remote controls designed for operating CCT+RGB LED strips. Click on an image to access the product page of the corresponding remote control.

What is a COB LED strip?

COB stands for Chip on Board, and refers to a LED strip in which individual LED dots are not visible like in cheaper strips, but the light is completely even along the entire length of the strip. COB LED strips with uniform illumination are suitable for situations where the strip is visible or where the strip otherwise requires the most even and high-quality lighting. With a COB strip, for example, a strip mounted near a wall or above a shiny tabletop is not reflected as individual light dots, but as a completely even strip of light.

LED strips enable a wide range of lighting solutions at home, in offices and in public spaces: lighting can be implemented either as so-called direct lighting (the light source is visible, e.g. an LED strip embedded in a slatted ceiling) or as so-called indirect lighting, i.e. the light source is not visible but the light is reflected, e.g. through a wall. LED strips can be used, for example, as a backlight for a bed headboard, chest of drawers or television. They can also be used to illuminate breakfast cabinets, kitchen worktops or steps or railings on staircases. LED strips can also be embedded, e.g. in a slatted ceiling or can be used to highlight recesses and designs in the ceiling or walls. Indirect lighting with LED strips can be created, e.g. in a plinth, under sauna benches, behind mirrors or even on top of kitchen furniture. LED strips allow you to play with light and implement even difficult lighting solutions, which is why they have become an important part of lighting design. Thanks to their easy installation, they can also be added to the interior at a later date.

Note! AGGE offers several LED strips with different power and features. You can check out the other strips in the series below:

Specifications

• Product: AGGE 24V CCT+RGB 16 W/m
• Intended use: Creating direct and indirect lighting
• Operating voltage: 24V
• Manufacturer's declared luminous efficacy: 250 lm/m
• Measured by Valostore:
  • White: 260 lm/m (2700K)
  • White: 530 lm/m (4000K)
  • White: 272 lm/m (6500K)
  • Colored: 283 lm/m
• Manufacturer's declared power: 16 W/m
• Color temperature: 2700-6500K
• Light color: CCT + RGB
• Color rendering (CRI): Ra90+
• Light beam angle: 120°
• Dimmable: Yes
• Dimensions (IP20): 5000 x 1.6 x 12 mm (Length x Height x Depth)
• Dimensions (IP65): 5000 x 1.8 x 12.2 mm (Length x Height x Depth)
• Connection cable length: 2000 mm
• Operating temperature: -20°C - +40°C
• Lifespan: 50,000 hours
• Other: 3M tape on the back for attachment
• IP rating: IP20 OR IP65
• Approvals: CE, RoHS
• SKU 19802, Electrical code: 4159926 (IP20)
• SKU 19803, Electrical code: 4159927 (IP65)
• Warranty: 24 months

Guides

You can find manufacturer's user manual by clicking here (opens in a new window).

• If you install a contorller/dimmer between the transformer and the LED strip (24V power), choose a normal transformer (not dimmable).
• If dimming occurs on the 230V side, e.g. with a TRIAC dimmer in a wall switch, choose a DIMMABLE TRANSFORMER.
• You can find the control unit to be installed between the transformer and the LED strip here:
  • LED strip control unit for RGB strip, AGGE RGB-CCT, 2.4 GHz
