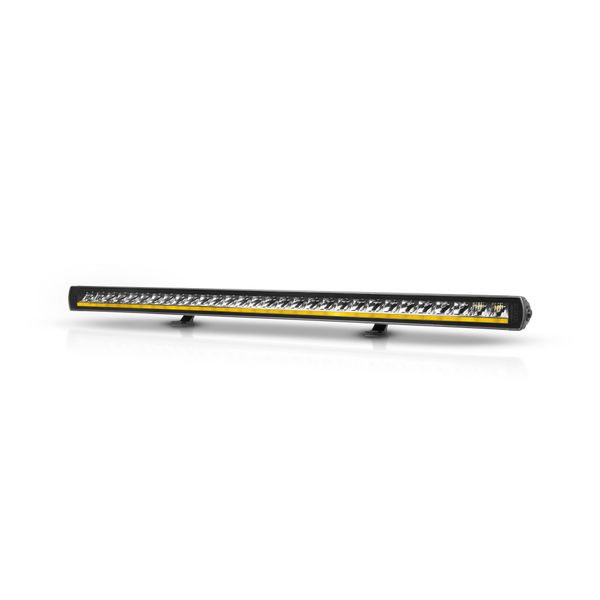

Led bar Strands Siberia XP SR 32" - Straight / 81 cm / 166W / Ref. 20

The Siberia XP SR is an accessory light kit with a chip body that offers both excellent performance and top quality in one package. The Siberia XP SR 32" is the mid-size model in the family. Featuring two different power modes, a wide combined beam and a low-profile design, the XP SR 32" with Xperience off-road mode delivers 10950 lumens of light output and a beam up to 734 metres @ 1 lux, according to the manufacturer. With the more moderate road mode, the light output is 1750 lumens and the range is 300 m @ 1 lux. To ensure a pleasant driving experience, the luminaire is also equipped with a colour temperature of 5700 kelvin, which works more effectively than cooler shades even in poor conditions such as snow and rain. The panel also features a white and amber parking light, which can be activated to activate the "Hello" function, which flashes a few times to greet other motorists. The Siberia XP SRC 32" is suitable for vans and SUVs, for example, as well as for heavy equipment.

The Siberia XP SR series is designed to withstand heavy use and stress, thanks to its weatherproof aluminium body and robust polycarbonate lens. The IP68/IP69K rating makes the panels fully dust and water resistant and the wide operating temperature range (-30°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Thanks to the low reference number (20), more lights can be fitted to most vehicles without having to disable the car's own main beam. Three year (36 months) warranty!

The Strands Siberia XP SR series includes five panels of different sizes and performance. See the other models below:

• Strands Siberia XP SR 12"
• Strands Siberia XP SR 22"
• Strands Siberia XP SR 32"
• Strands Siberia XP SR 42"
• Strands Siberia XP SR 50"

Basic delivery content

• Strands Siberia XP SR 32"
• Power cord without connector
• Width adjustable footrests
• Wiring and installation instructions (EN)

Delivery contents (1 pc - Complete set)

• Basic contents, see above
• Auxiliary light holder for EU plate, Purelux
• Relay wiring harness Purelux HD, 12V
• Stabilizer bracket, 2 pcs

  • Note! The additional light and the relay wiring harness do not have a connector, so you have to do the wiring yourself

Technical data

• Make and model.
• Purpose: As an auxiliary light for vehicles/machinery
• Operating voltage: 10-32V
• Reference number: 20
• Power consumption as stated by the manufacturer:
  • Road use: 2.5A @ 12V / 1.25 @ 24V
  • Xperience mode: 13.8A @ 12V / 6.91A @ 24V
• Power as declared by the manufacturer:
  • Road mode: 30W
  • Xperience mode: 166W
  • White parking light: 14.5W
  • Yellow parking light: 14.5 W
• Light output as declared by the manufacturer: 1750 lm (Road mode) / 10 950 lm (Xperience mode)

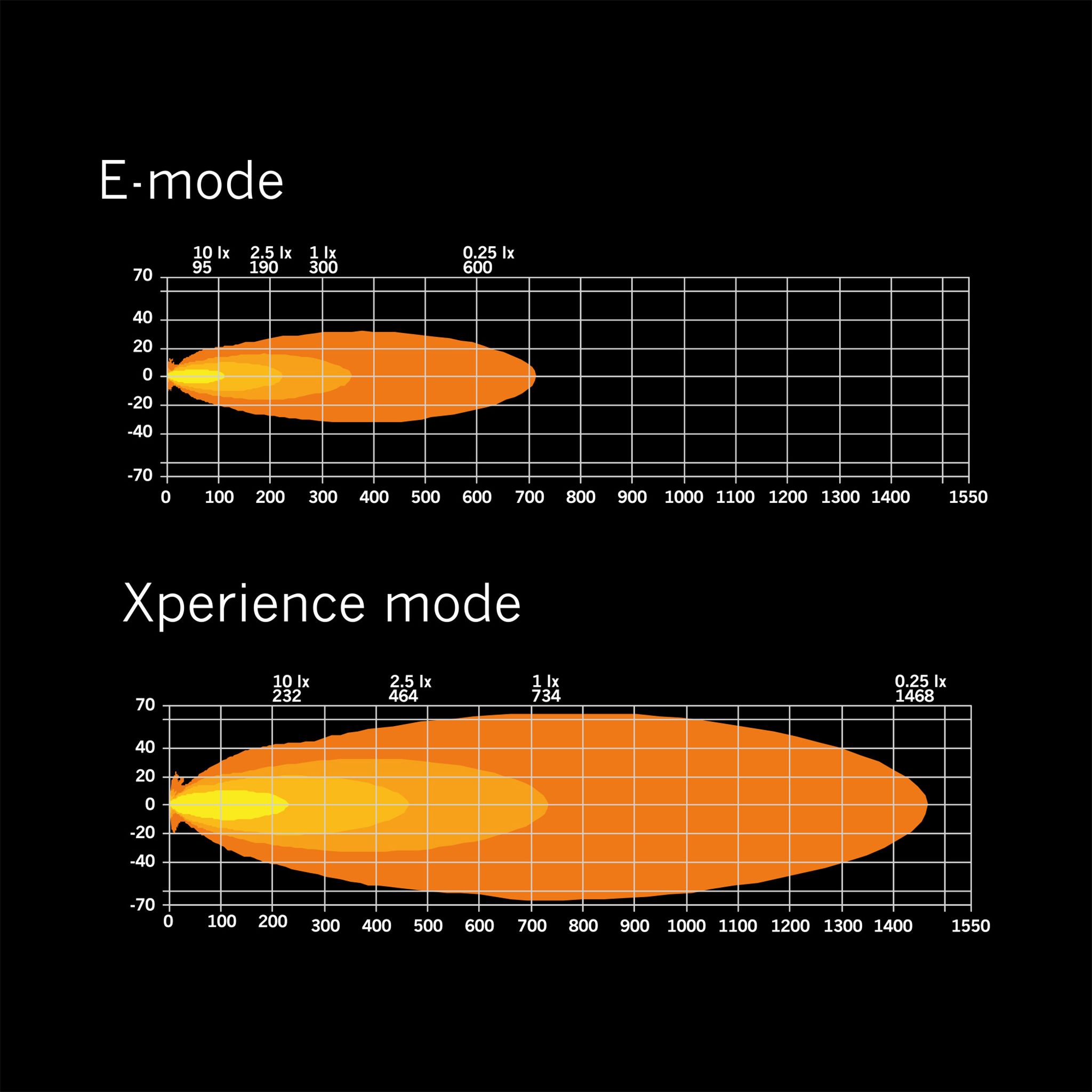

• Range declared by the manufacturer:
  • Road mode: 300 m @ 1 lux / 600 m @ 0.25 lux
  • Xperience mode: 734 m @ 1 lux / 1468 m @ 0.25 lux
• Manufacturer's declared colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: No connector, direct wires
• Cable length: 2500 mm
• Operating temperature: -35°C to +65°C
• Dimensions: 815 x 45 x 55 mm (Width x Height x Depth)
  • Height with feet: 64.5 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10, R148, R149*
  • *Road approval does not apply to Xperience mode.
• Warranty: 36 months

Quick guide

You can find the manufacturer's installation instructions here: Strands Siberia XP SR (opens in a new window).
