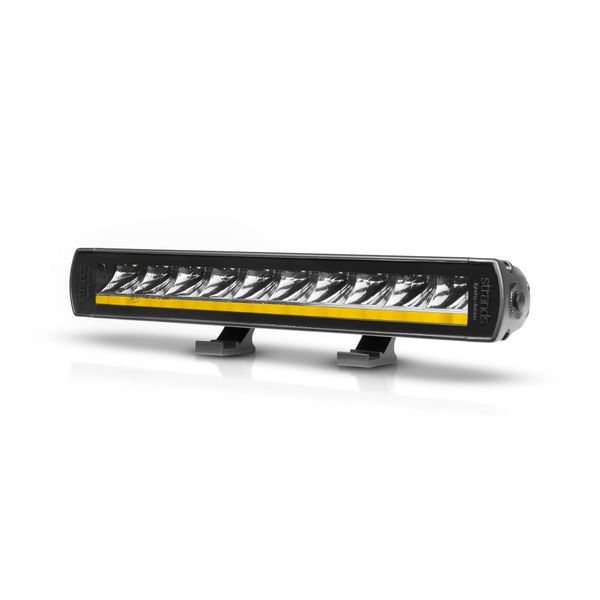

Led bar STRANDS Siberia XP SR 12" - Straight / 30 cm / 50W / Ref. 20

The Siberia XP SR is an accessory light kit with a chip body that offers both excellent performance and top quality in one package. The Siberia XP SR 12" is the smallest of the five different panel sizes available. With two different power modes, a wide combined beam and a low-profile design, the XP SR 12" delivers a light output of 3620 lumens and a beam range of 454 metres @ 1 lux with the Xperience off-road power mode, according to the manufacturer. With the more moderate road mode, the light output is 1725 lumens and the range is 300 m @ 1 lux. To ensure a comfortable driving experience, the lamp is also equipped with a colour temperature of 5700 kelvin, which works more effectively than cooler shades even in poor conditions such as snow and rain. The panel also features white and amber parking lights. The size of the Siberia XP SR 12" makes it ideal for smaller installations such as ATVs, snowmobiles and small cars. With two or more lights, the light output is of course also sufficient for larger vehicles.

The Siberia XP SR series is designed to withstand heavy use and stress, thanks to its weatherproof aluminium body and rugged polycarbonate lens. The IP68/IP69K rating makes the panels fully dust and water resistant and the wide operating temperature range (-30°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Thanks to the low reference number (20), more lights can be fitted to most vehicles without having to disable the car's own main beam. Three year (36 months) warranty!

The Strands Siberia XP SR series includes five panels of different sizes and performance. See the other models below:

• Strands Siberia XP SR 12"
• Strands Siberia XP SR 22"
• Strands Siberia XP SR 32"
• Strands Siberia XP SR 42"
• Strands Siberia XP SR 50"

Basic delivery content (1 piece / 2 pieces)

• Strands Siberia XP SR 12"
• Power cord with DT4 connector
• Width adjustable lower legs
• Connection and installation instructions (EN)

Contents (2 pcs - Complete set)

• Basic contents, see above
• Auxiliary light holder for EU plate, Purelux
• Relay wiring harness Purelux Pro Serie 12V, DT-2 (2 outputs)
• Adapter cable Purelux DT-4 - DT-2, 2 pcs
• Stabilizer, 2 pcs

  • Note! The power cord of the led bar has a DT4 connector and the harness has a DT2 connector. The complete set comes with the DT4-DT2 adapter cables, but the parking lights will not automatically work with the wiring harness, but have to be connected by yourself if you wish.

Technical specifications

• Make and model: Strands Siberia XP SR 12"
• Purpose: As an auxiliary light for vehicles / machinery.
• Operating voltage: 10-32V
• Reference number: 20
• Power consumption as stated by the manufacturer:
  • Road use: 2.08A @ 12V / 1.04A @ 24V
  • Xperience mode: 4.1A @ 12V / 2.08A @ 24V
• Power as declared by the manufacturer:
  • Road mode: 25W
  • Xperience mode: 50W
  • White parking light: 5.1W
  • Yellow parking light: 5.1 W
• Light output as declared by the manufacturer: 1725 lm (Road mode) / 3650 lm (Xperience mode)
• Range declared by the manufacturer:
  • Road mode: 300 m @ 1 lux / 600 m @ 0.25 lux
  • Xperience mode: 454 m @ 1 lux / 908 m @ 0.25 lux
• Manufacturer's declared colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: DT-4
• Cable length: 200 mm
• Operating temperature: -35°C to +65°C
• Dimensions: 306 x 45 x 55 mm (Width x Height x Depth)
  • Height with feet: 64.5 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10, R148, R149*
  • *Road approval does not apply to Xperience mode
• Warranty: 36 months

Quick guide

You can find the manufacturer's installation instructions here: Strands Siberia XP SR (opens in a new window).
