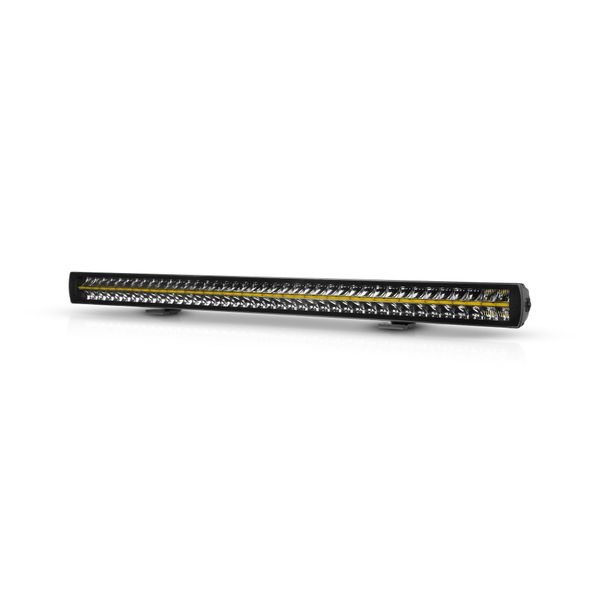

Led bar Strands Siberia XP DR 42" - Straight / 107 cm / 341W / Ref. 20

Siberia XP DR is a modern accessory light kit that offers both maximum performance and top quality in a stylish package. With six different panel sizes, the Siberia XP DR 42" is the second largest and second most powerful model in the family. With two different power modes and a wide combined beam, the XP DR 42" delivers up to 25,500 lumens of light output with the Xperience off-road mode and a beam range of up to 1,110 metres @ 1 lux, according to the manufacturer. With the more moderate road mode, the light output is 1125 lumens and the range is 300 m @ 1 lux. In addition, the panel is equipped with a colour temperature of 5700 kelvin, which works more effectively than cooler shades even in poor conditions such as snow and rain. The panel also features a white and a yellow parking light, which can be activated to activate the "Hello" function if desired, allowing the parking light to flash a few times in style to greet other motorists. Because of its size and power, the Siberia XP DR 42" is best suited to larger installations such as trucks, vans and SUVs.

The Siberia XP DR range is designed to withstand heavy use and stress, thanks to its weather-resistant aluminium body and high-strength polycarbonate lens. The IP68/IP69K rating makes the panels fully dust and water resistant and the wide operating temperature range (-35°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Thanks to the low reference number (20), more lights can be fitted to most vehicles without having to disable the car's own main beam. Three year (36 months) warranty!

The Strands Siberia XP DR series includes six panels of different sizes and performance. See the other models below:

• Strands Siberia XP DR 8"
• Strands Siberia XP DR 12"
• Strands Siberia XP DR 22"
• Strands Siberia XP DR 32"
• Strands Siberia XP DR 42"
• Strands Siberia XP DR 50"

Basic delivery content

• Strands Siberia XP DR 42"
• Power cord without connector
• Width adjustable footrests
• Connection and installation instructions (EN)

Delivery contents (Light + wiring harness)

• As above, but in addition
• Relay wiring harness Purelux HD, 500W
  • Note! Due to the high power, there are no connectors on the light or the wiring harness, so you have to make the connection yourself.

Technical data

• Make and model: Strands Siberia XP DR 42"
• Application: As auxiliary light for vehicles / machinery
• Operating voltage: 10-32V
• Reference number: 20
• Power consumption as stated by the manufacturer:
  • Road use: 1.5A @ 12V / 0.75A @ 24V
  • Xperience mode: 28.4A @ 12V / 14.2A @ 24V
• Power as declared by the manufacturer:
  • Road mode: 18 W
  • Xperience mode: 341 W
  • White parking light: 17.5 W
  • Yellow parking light: 17.4 W
• Manufacturer's declared luminous intensity: 1125 lm (Road mode) / 25 500 lm (Xperience mode)

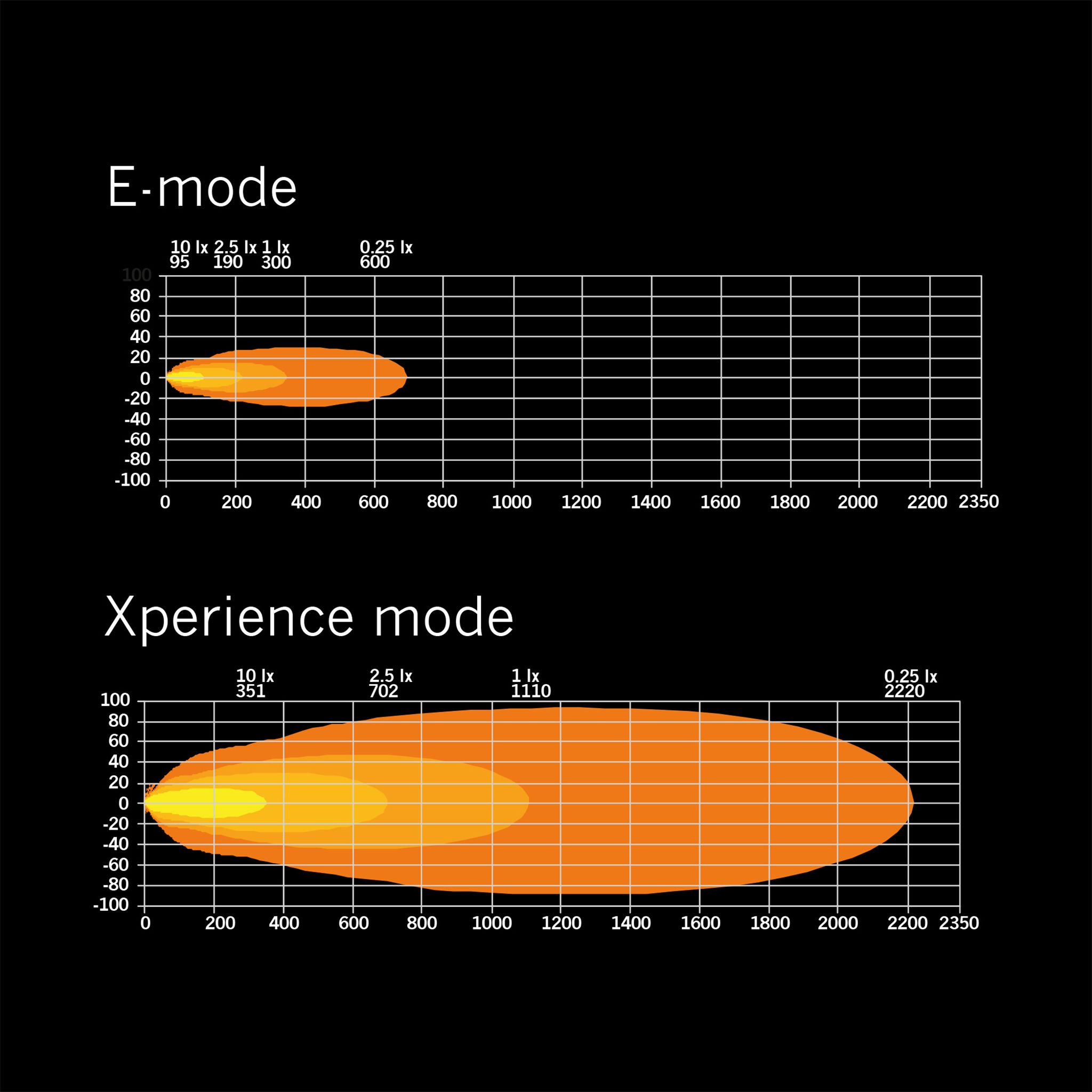

• Range declared by the manufacturer:
  • Road mode: 300 m @ 1 lux / 600 m @ 0.25 lux
  • Xperience mode: 1100 m @ 1 lux / 2200 m @ 0.25 lux
• Manufacturer's declared colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: No connector, direct wires
• Cable length: 2500 mm
• Operating temperature: -35°C to +65°C
• Dimensions: 1075 x 76 x 72 mm (Width x Height x Depth)
  • Height with feet: 96.6 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10, R148, R149*.
  • *Road approval does not apply to Xperience mode
• Warranty: 36 months

Quick guide

The manufacturer's installation instructions can be found here: Strands Siberia XP DR (opens in a new window).
