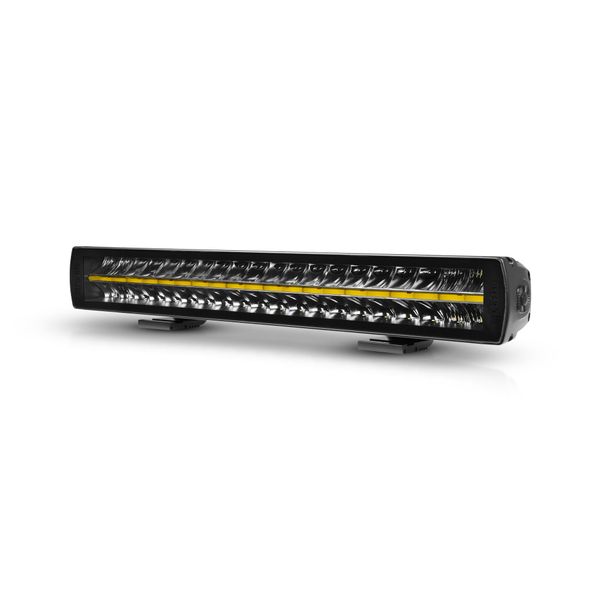

Led bar Strands Siberia XP DR 22" - Straight / 56 cm / 184W / Ref. 20

Siberia XP DR is a modern accessory light kit that offers both maximum performance and top quality in a stylish package. The Siberia XP DR 22" is the mid-size ofthe range and comes in six different panel sizes. Featuring two different power modes and a wide combination beam, the XP DR 22" with Xperience off-road mode delivers a light output of 13050 lumens and a beam up to 853 metres @ 1 lux, according to the manufacturer. With the more moderate road mode, the light output is 1425 lumens and the range is 300 m @ 1 lux. In addition, the panel is equipped with a colour temperature of 5700 kelvin, which works more effectively than cooler shades even in poor conditions such as snow and rain. The panel also features a white and a yellow parking light, which can be activated to activate the "Hello" function if desired, allowing the parking light to flash a few times in style to greet other motorists. In terms of size and power, the Siberia XP DR 22" is ideal for passenger cars, vans and SUVs, and can of course also be used as part of a heavy-duty lighting solution.

Siberia XP DR is designed to withstand heavy use and stress, thanks to its weatherproof aluminium body and robust polycarbonate lens. The IP68/IP69K rating makes the panels fully dust and water resistant and the wide operating temperature range (-35°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Thanks to the low reference value (20), the light can be fitted to most vehicles without the need to disable the car's own main beam. 3 years (36 months) warranty!

The Strands Siberia XP DR series includes six panels of different sizes and performance. See the other models below:

• Strands Siberia XP DR 8"
• Strands Siberia XP DR 12"
• Strands Siberia XP DR 22"
• Strands Siberia XP DR 32"
• Strands Siberia XP DR 42"
• Strands Siberia XP DR 50"

Basic delivery content

• Strands Siberia XP DR 22"
• Power cord without connector
• Width adjustable footrests
• Connection and installation instructions (EN)

Delivery contents (1 pc - Complete set)

• Basic delivery content, see above
• Auxiliary light holder for EU plate, Purelux
• Relay wiring harness Purelux HD, 12V
• Stabilizer, 2 pcs

  • Note! The auxiliary light and the relay wiring harness do not have a connector, so you have to do the wiring yourself

Delivery contents (1 pc - Complete set with adjustable holder)

• Basic delivery content, see above
• Additional adjustable light holder for EU plate, Purelux
• Relay wiring harness Purelux HD, 12V
• Stabilizer, 2 pcs
  • Note! The auxiliary light and the relay wiring harness do not have a connector, so you have to do the wiring yourself

Technical data

• Make and model: Strands Siberia XP DR 22"
• Purpose: As an auxiliary light for vehicles/machinery
• Operating voltage: 10-32V
• Reference number: 20
• Power consumption as stated by the manufacturer:
  • Road use: 1.58A @ 12V / 0.79A @ 24V
  • Xperience mode: 15,.A @ 12V / 7.66A @ 24V
• Power as declared by the manufacturer:
  • Road mode 19 W
  • Xperience mode: 184 W
  • White parking light: 16.9 W
  • Yellow parking light: 16.7 W
• Manufacturer's declared luminous intensity: 1425 lm (Road mode) / 13 050 lm (Xperience mode)

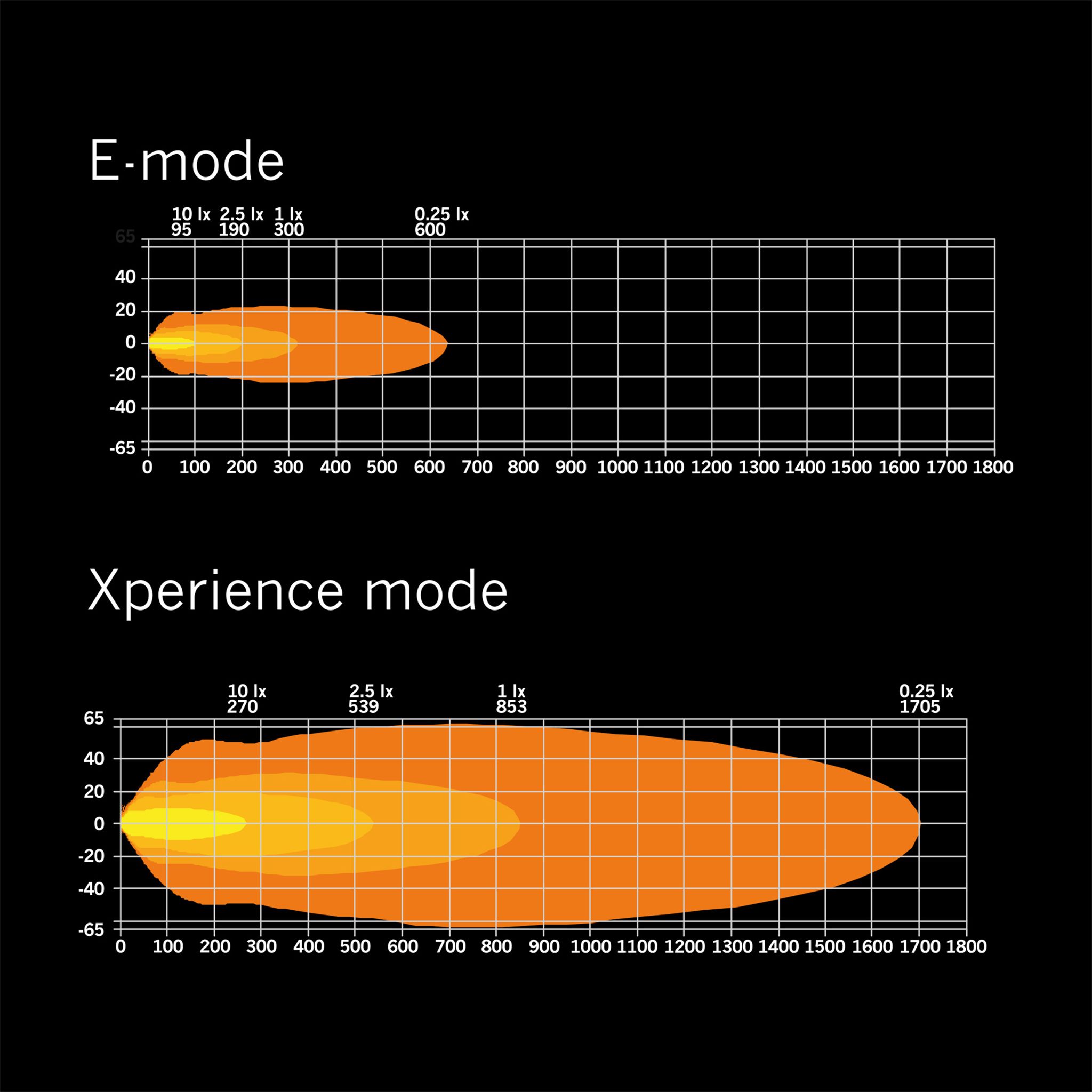

• Range declared by the manufacturer:
  • Road mode: 300 m @ 1 lux / 600 m @ 0.25 lux
  • Xperience mode: 853 m @ 1 lux / 1706 m @ 0.25 lux
• Manufacturer's declared colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: No connector, direct wires
• Cable length: 2500 mm
• Operating temperature: -35°C to +65°C
• Dimensions: 565 x 76 x 72 mm (Width x Height x Depth)
  • Height with feet: 96.6 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10, R148, R149*
  • *Road approval does not apply to Xperience mode
• Warranty: 36 months

Quick guide

The manufacturer's installation instructions can be found here: Strands Siberia XP DR (opens in a new window).
