Auxiliary light OZZ XB1 P9″ White - Straight / 22 cm / 60W / Ref. 27.5

OZZ XB1 P9″ Black LED driving light combines a compact size, modern appearance, powerful light output and an eye-catching dynamic position light into a stylish package. Despite its clean and low-profile design, the black 228 mm light bar delivers impressive performance: 3100 lumens of light output and a 315-metre range @ 1 lux. The wide and long-reaching beam pattern improves visibility on dark roads, while the refined look suits a wide range of vehicles.

OZZ XB1 P9″ Black stands out with its impressive dynamic start-up animation: when the position light is switched on, the LEDs create a striking effect as they light up stylishly one after another. The position light colour can be selected in either white or amber, making it easy to match the light’s appearance to the vehicle’s style and intended use. The 5000 kelvin color temperature of the main driving light is neutral white and comfortable for the eyes, helping to maintain good driving comfort even on longer journeys. Three-year (36-month) warranty!

OZZ XB1 P9″ is available in two different colors:

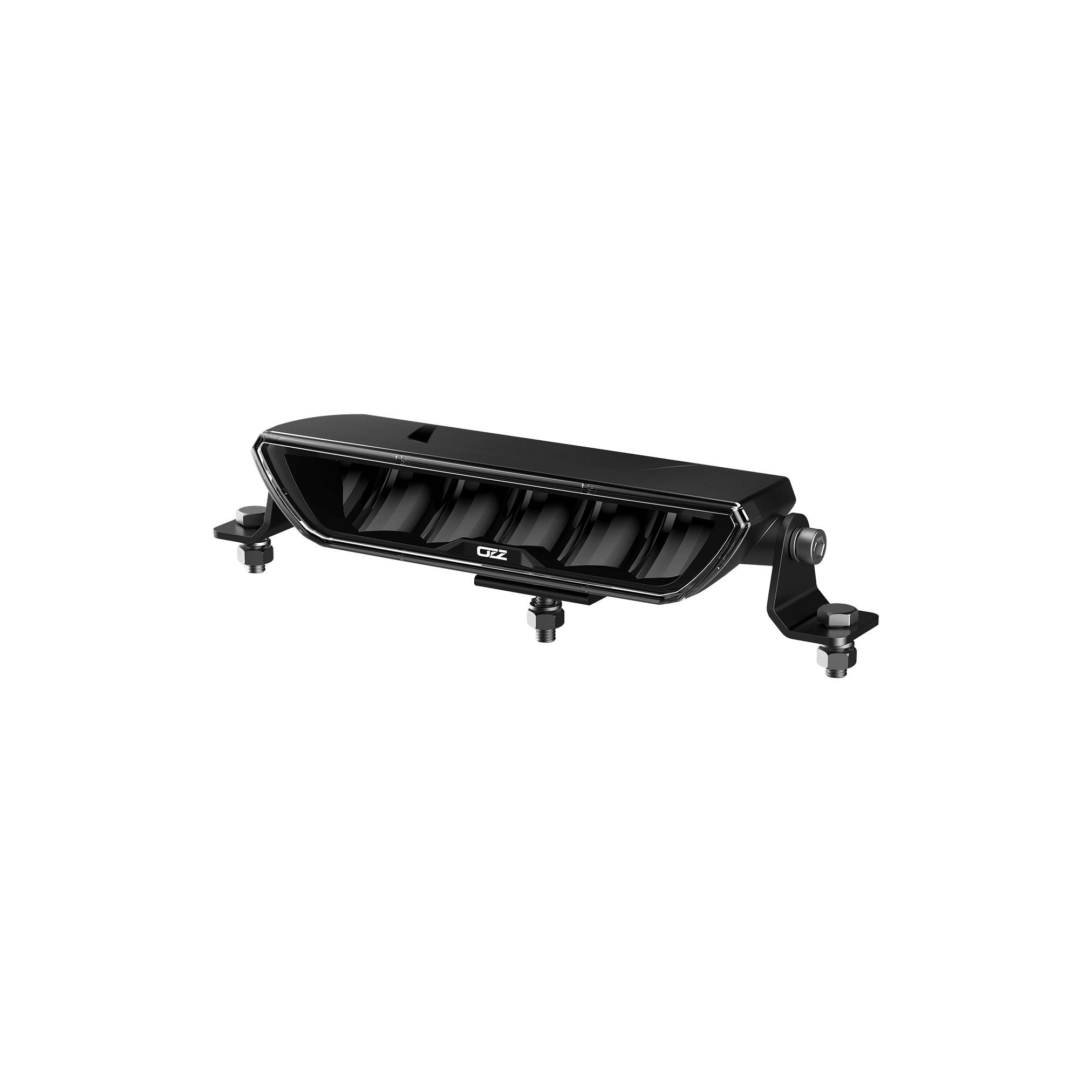

XB1 8″ Black

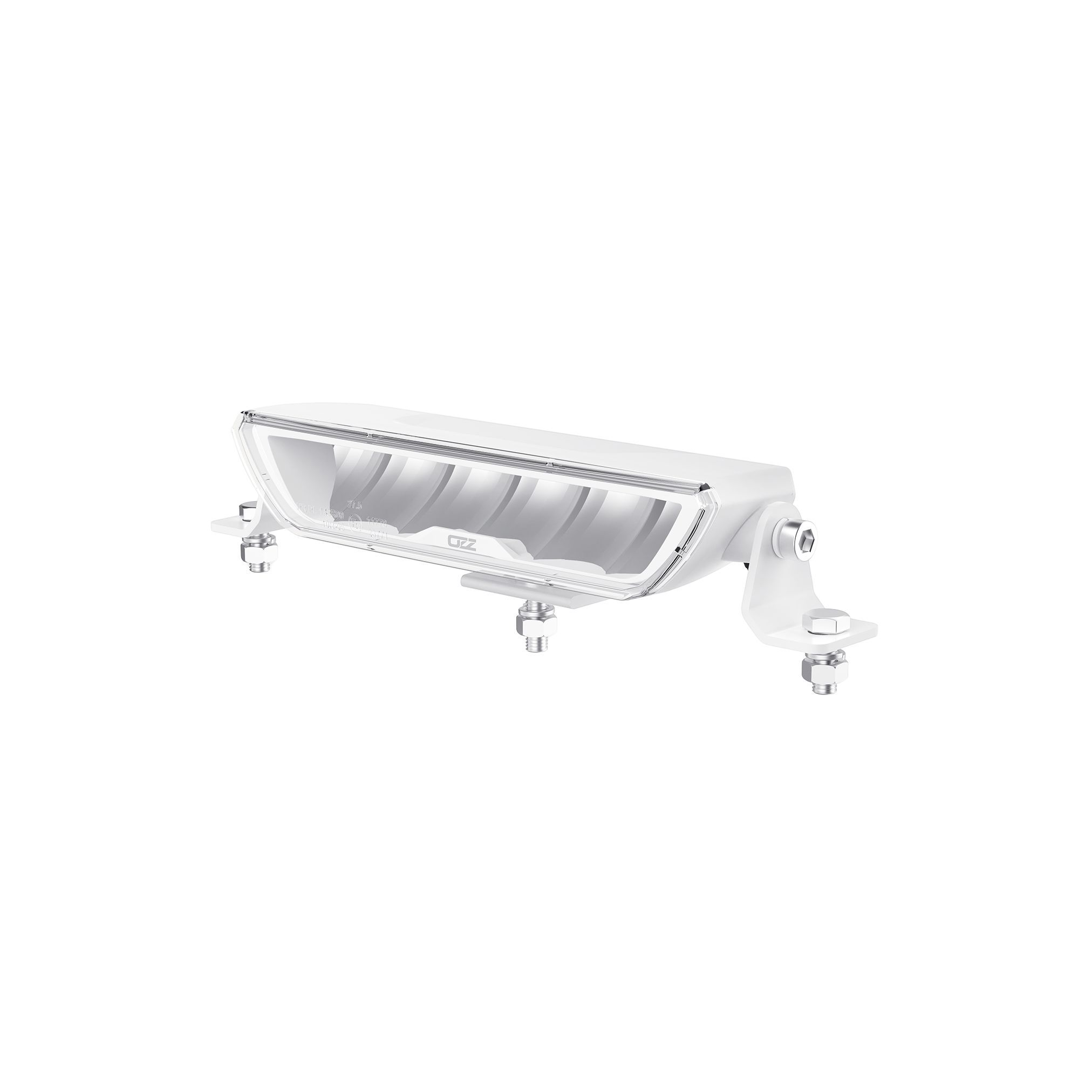

XB1 8″ White

Basic delivery contents

• OZZ XB1 P9″ Black
• Power cable with DT-4 connector, 1000 mm
• Mounting foot

Technical information

• Brand and model: OZZ XB1 P9″ Black
• Intended use: As an auxiliary light in cars / work machines
• Operating voltage: 10–32V DC
• Reference number: 27.5
• Power consumption: 3.5A @ 12V / 1.75A @ 24V
• Rated power: 60 W
• Power stated by the manufacturer: 42 W @ 12V / 42 W @ 24V
• Theoretical light output: 4960 lm
• Light output stated by the manufacturer: 3100 lm
• Range stated by the manufacturer: 315 m @ 1 lux
• Color temperature stated by the manufacturer: 5000 K
• Mounting: Mounting foot
• Connector: DT-3
• Cable length: 1000 mm
• Dimensions: 228 x 50 x 70/74 mm (Width x Height x Depth)
• Height with stand: 51/58.3 mm
• Protection class: IP68, IP69K
• Approvals: E-approved, ECE R149, ECE R10
• Warranty: 36 months

Installation guide

Manufacturer’s user manual (PDF)
