Auxiliary light OZZ XB1 20" Black - Straight / 53 cm / 140W / Ref. 50

OZZ XB1 20″ Black is a 533 mm wide LED auxiliary light that combines a slim design, modern appearance, and powerful light output. The low-profile black housing gives the light a refined and discreet look, making it well suited for a wide range of vehicles, from passenger cars and off-road vehicles to heavy-duty equipment. In Boost mode, the auxiliary light produces up to 7000 lumens and illuminates up to 610 meters @ 1 lux. The beam pattern, which reaches both wide and far, improves visibility in varying driving conditions.

OZZ XB1 20″ Black stands out with its impressive dynamic start-up animation, where the LEDs light up in a stylish sequence when power is connected to the blue wire. The 5000 kelvin color temperature of the main driving light is neutral white and comfortable for the eyes, helping to maintain good driving comfort even on longer journeys. Three-year (36-month) warranty!

OZZ XB1 20" is available in two different colors:

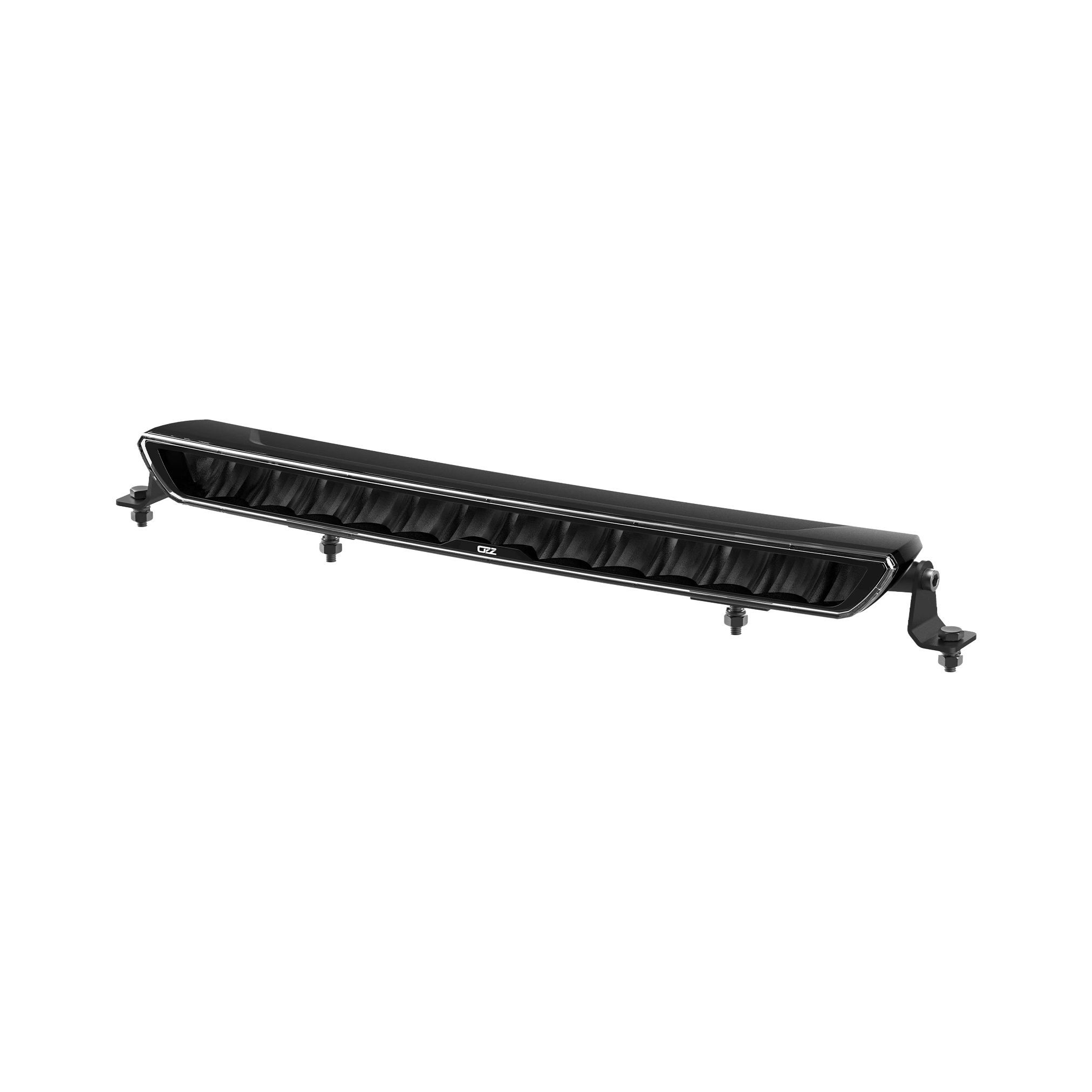

XB1 20″ Black

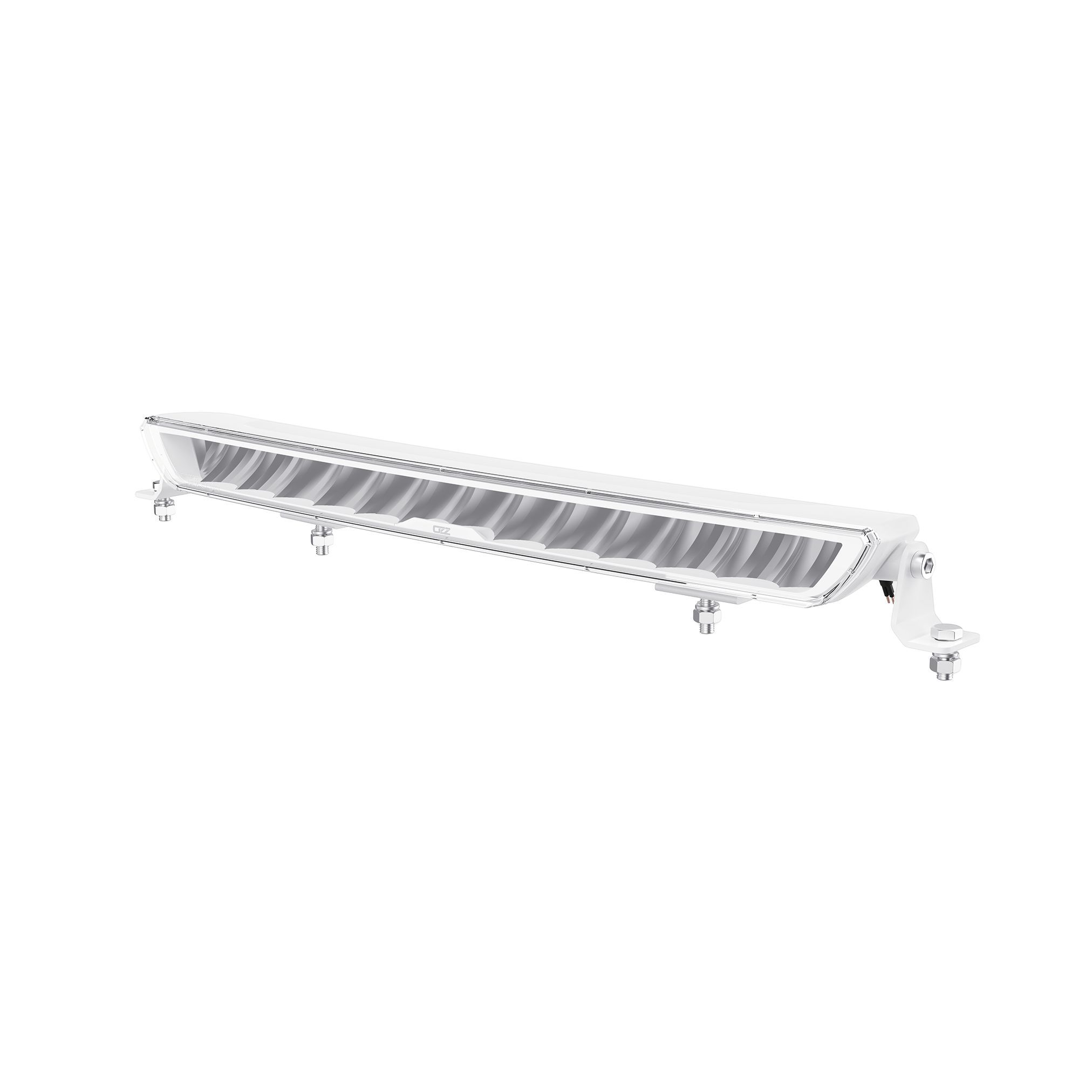

XB1 20″ White

Basic delivery contents

• OZZ XB1 20" Black
• Power cable with DT-3 connector, 1000 mm
• Mounting foot

Delivery content (1 piece - Complete set)

• Basic delivery content
• Additional light bracket for EU license plate, Purelux
• Relay cable set Purelux Pro Serie 12V, DT-3 (1 output)
• Support bars, 2 pcs

Delivery content (1 pc - Complete set with flush mounting bracket)

• Basic delivery content
• Adjustable additional light bracket for EU license plate, Purelux
• Relay cable set Purelux Pro Serie 12V, DT-3 (1 output)
• Support bars, 2 pcs

Technical information

• Brand and model: OZZ XB1 20" Black
• Intended use: As an auxiliary light in cars / work machines
• Operating voltage: 10–32V DC
• Reference number: 50
• Power consumption:
  • R112: 6.39A @ 12V / 3.01A @ 24V
  • Boost: 8.14A @ 12V / 4.54A @ 24V
• Rated power: 140 W
• Power stated by the manufacturer:
  • R112: 77 W @ 12V / 73 W @ 24V
  • Boost: 98 W @ 12V / 109 W @ 24V
• Theoretical light output: 11200 lm
• Light output stated by the manufacturer:
  • R112: 4900 lm
  • Boost: 7000 lm
• Range stated by the manufacturer:
  • R112: 480 m @ 1 lux
  • Boost: 590 m @ 1 lux
• Color temperature stated by the manufacturer: 5000 K
• Mounting: Mounting foot
• Connector: DT-3
• Cable length: 1000 mm
• Dimensions: 530.7/533 x 43 x 70/80 mm (Width x Height x Depth)
• Height with stand: 51.5/61 mm
• Protection class: IP68, IP69K
• Approvals: E-approved, ECE R149, ECE R10
• Warranty: 36 months
