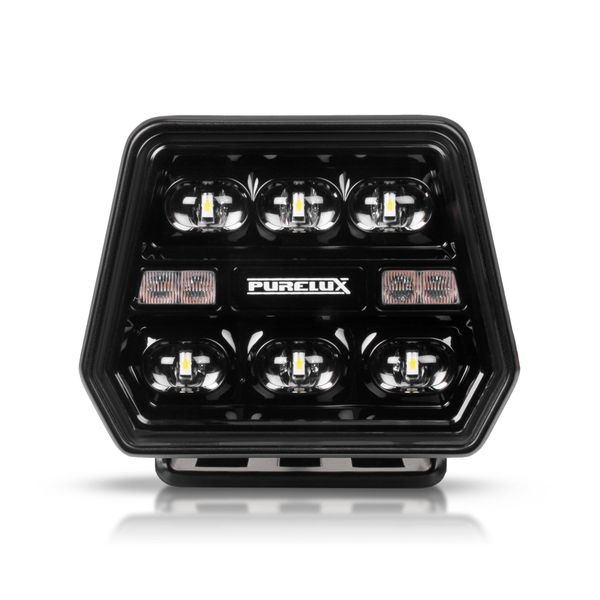

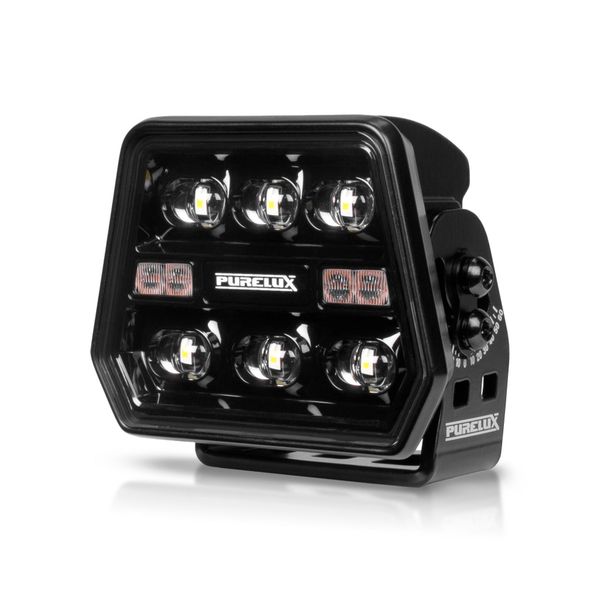

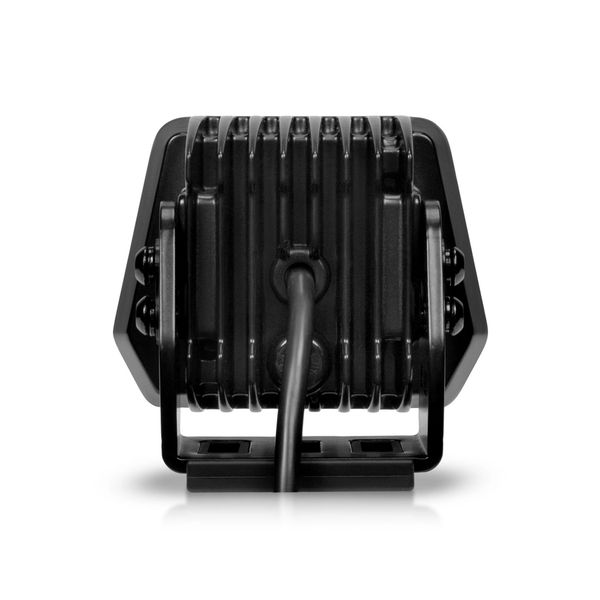

Work light PURELUX Panther Alpha 40 - 11 cm / 45W / Wide

⭐️ SUPER STYLISH DESIGN ⭐️
⭐️ INCREDIBLE STYLE-POWER-QUALITY ⭐️

The Purelux Panther Alpha 40 is a wide-beam work light designed for challenging conditions, equipped with an ECE R65-approved warning light. Unlike other lights in the series, the LEDs of the Alpha 40 are equipped with "fisheye lenses", which make the beam really wide and even. The lens optics reduce light leakage outside the desired beam, so that all light remains within the beam and the illumination of the working area is maximized . The power of the Alpha 40 is limited to 40 watts, which allows the light to be used even on work machines where the maximum power of a single lamp is limited. The light produces a light output of 4150 lumens, which is enough to illuminate even a larger area.

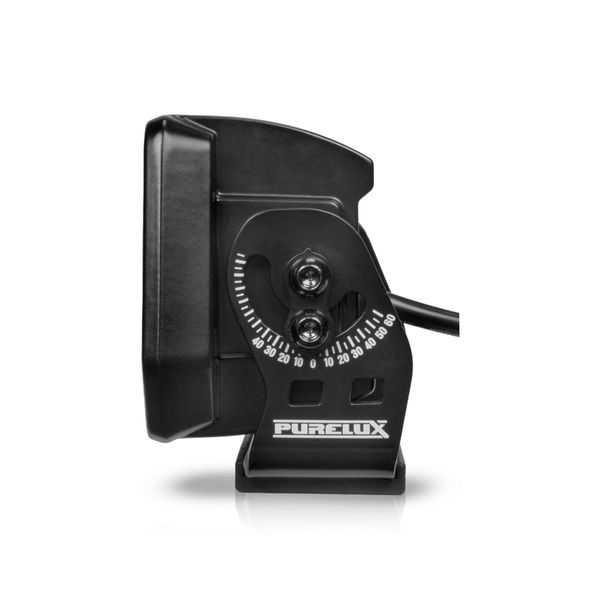

In addition to its excellent beam and ECE R65 Class 1 warning light, the Panther Alpha 40 is equipped with a neutral 5000K color temperature, which is the optimal choice for general lighting. The neutral color temperature reproduces the colors of the environment naturally and works better than cold tones in bad weather conditions, such as fog and rain. When the above features are combined with an exceptionally wide and soft light pattern, the lighting is suitable for all weather conditions. Since the light does not leak outside the beam, glare can also be reduced by directing the luminaires. The mounting foot can be turned above the light if desired, which allows for hanging installation.

In addition to their excellent lighting properties, the Panther Alpha lights are also extremely stylish, and their unique design language is completely different from other work lights on the market. In addition, these lights are created to withstand challenging conditions, as evidenced by, among other things, their highest possible tightness rating (IP69K), a durable aluminum frame and a lens made of practically unbreakable polycarbonate. The lights also feature an intelligent thermal management system that prevents overheating even during long working days and ensures safe and worry-free working even during seasonal work. The exceptionally wide operating temperature range (-50°C - +60°C) makes the Alpha 40 a reliable partner even in extreme conditions.

The Panther Alpha series lights have a DT-4 connector integrated into the power cord, which makes installation easier. A mating connector is also included. The Panther Alpha 40 is radio interference-protected according to R10 and CISPR25 Class 4. Three-year (36 months) warranty!

Delivery content

• Purelux Panther Alpha 40
• Sturdy mounting foot
• Mounting bolt
• Power cord with DT-4 connector, 70 cm
• Connector counterpart
• Connection and installation instructions (EN, FI, SE, NO, DK)

Specifications

• Brand and model: Purelux Panther Alpha 40
• Intended use: As a work light in construction machinery, heavy equipment and cars
• Operating voltage: 9-36V
• Power consumption measured by Valostore:
  • Work light: 1.83A @ 24V
  • Warning light: 0.52A @ 24V
• Manufacturer's theoretical power: 40 W
  • Measured by Valostore: 44 W (Work light)
  • Measured by Valostore: 12.5 W (Warning light)
• Manufacturer's declared luminous efficacy: 4300 lm
  • Measured by Valostore: 4150 lm
• Range measured by Valostore: 44 m @ 1 lux / 88 m @ 0.25 lux
• Manufacturer's stated color temperature: 5000 K
  • Measured by Valostore: 5113 K
• Mounting: Mounting stand
• Connector: DT-4
• Cable length: 70 cm
• Dimensions: 106 x 82 x 67 mm (Width x Height x Depth)
  • Height with foot: 97 mm
• Weight: 600g
• IP rating: IP69K
• Operating temperature: -50°C - +60°C
• Approvals: EMC: ECE R10 R65, CISPR25 Class 4, CE, RoHS
• Warranty: 36 months

Quick Guide

Connecting:

• Brown: Power (+)
• Black: Ground (-)
• Yellow: Warning light (+)
• Blue: Warning light synchronization and mode switching (+)

  • Quick tap to power cable changes the warning light pattern
  • Synchronization: connect the blue wires of the lights together

Manufacturer's installation instructions (PDF)
