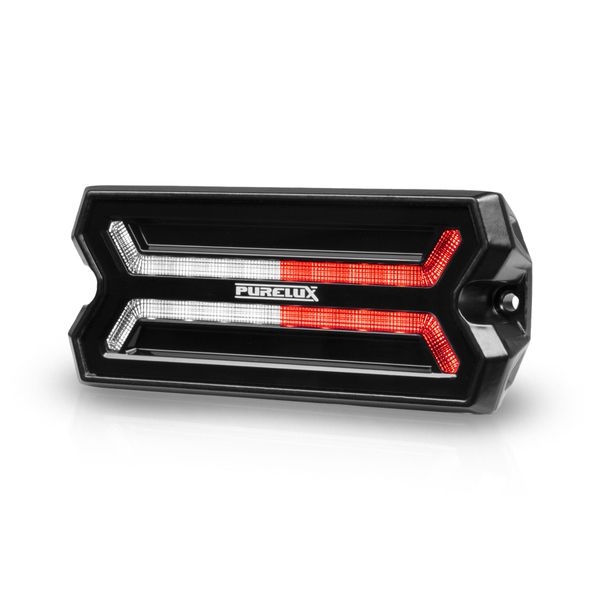

Reverse light / Marker light Purelux Panther Core-S - 12/24V / 14W / 105 mm

Purelux Panther Core-S is an extremely stylish rear light with a road-approved reversing light and a red marker light. The Core-S is part of the Panther marker light series created by Purelux's product development team, which emphasizes practical features, absolute reliability and exceptional style. All Core lights are equipped with optics that imitate the darkness of the night sea when the lights are off, but when turned on, they create an almost hypnotic, stunning light illusion on the outer edges of the vehicle. The powerful reversing light with a neutral 5000K color temperature integrated into a small and slender body and the steady red warning/marker light make this light the perfect choice for all vehicles that move or work a lot in poorly lit or unlit areas. Such vehicles include, for example, distribution and service vehicles, tractors, forestry machinery and trucks, as well as trailers, vans, campers and roadside assistance units, benefit from both features of the Core-S. Thanks to its striking appearance, the lamp can also be installed for purely stylistic reasons on practically any vehicle whose lines you want to emphasize and at the same time give the reversing light that often-needed extra boost.

The Core lights feature two light bars running across the lens, with a unique design, high-performance LEDs and even light distribution that will catch your eye from afar. In addition, the sleek black body and dark optics blend the light into any vehicle's structure, ensuring a clean installation. Thanks to the low power consumption, multiple lights can be installed on the same vehicle without any worries, and the Core series lights can also be synchronized to work harmoniously with each other. This ensures a uniform, stylish and finished lighting for the vehicle, with the Purelux Panther Core at its core.

Panther Core lights are very easy to install, as the power cord has its own wires for all functions. Made of high-quality components, the lights are protected from water and dust according to the highest possible tightness rating (IP69K), and their impact-resistant body ensures reliable operation even in challenging conditions. Thanks to the excellent protection, the lights can be installed high or low, as sand dust raised by tires, stone or oxygen splashes, UV radiation from the sun, heavy rain, sub-freezing water or even hail do not affect their operation. In addition, the lights are protected from radio interference according to the R10 standard, and the wide operating voltage (9-36V) allows installation in both 12V and 24V systems. Three-year (36 months) warranty!

Note: The Purelux Panther Core series includes four different lights, each with different functions. You can check out the other lights in the series below.

Core-X	White marker light Amber marker light Turn signal
Core-R	Red marker light Brake light Turn signal
Core-W	Warning light (R65) Amber marker light White marker light
Core-S	Red marker light Reversing light

Delivery content

• Purelux Panther Core-S
• Power cord, 300 mm
• Rubber mounting backing
• Mounting screws
• Installation and connection instructions (FI/EN/SE/NO/DK)

Specifications

• Product: Purelux Panther Core-S
• Intended use: As a reversing and side light in work machines/vehicles
• Operating voltage: 9-36V
• Power measured by the light bulb:
  • Reversing light: 14 W
  • Marker light: 2.5 W
• Functions: Reversing light + red marker light
• Light color: Red and white
• Manufacturer's declared luminous efficacy: 980 lm
  • Measured by the light bulb: 680 lm
• Range measured by the light tower: 21 m @ 1 lux / 42 m @ 0.25 lux
• Manufacturer's stated color temperature: 5000K
  • Measured by Valostore: 5016 K

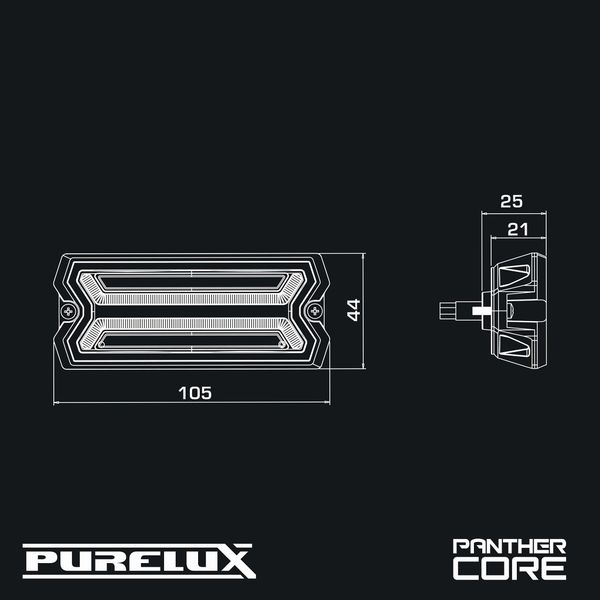

• Dimensions: 105 x 21 x 44 mm (Width x Height x Depth)
  • Height with mounting foot: 25 mm
• Power cable length: 300 mm
• Connector: No connector, straight wires
• Weight: 115g
• IP rating: IP69K
• Operating temperature: -40°C - +60°C
• Approvals: EMC: ECE R10, R7, R23, R148, CE, RoHS
• Warranty: 36 months

Quick guide

Coupling

• Red: Red rear marker light
• Black: Ground
• White: Reverse light

You can find the manufacturer's installation and connection instructions by clicking here.
