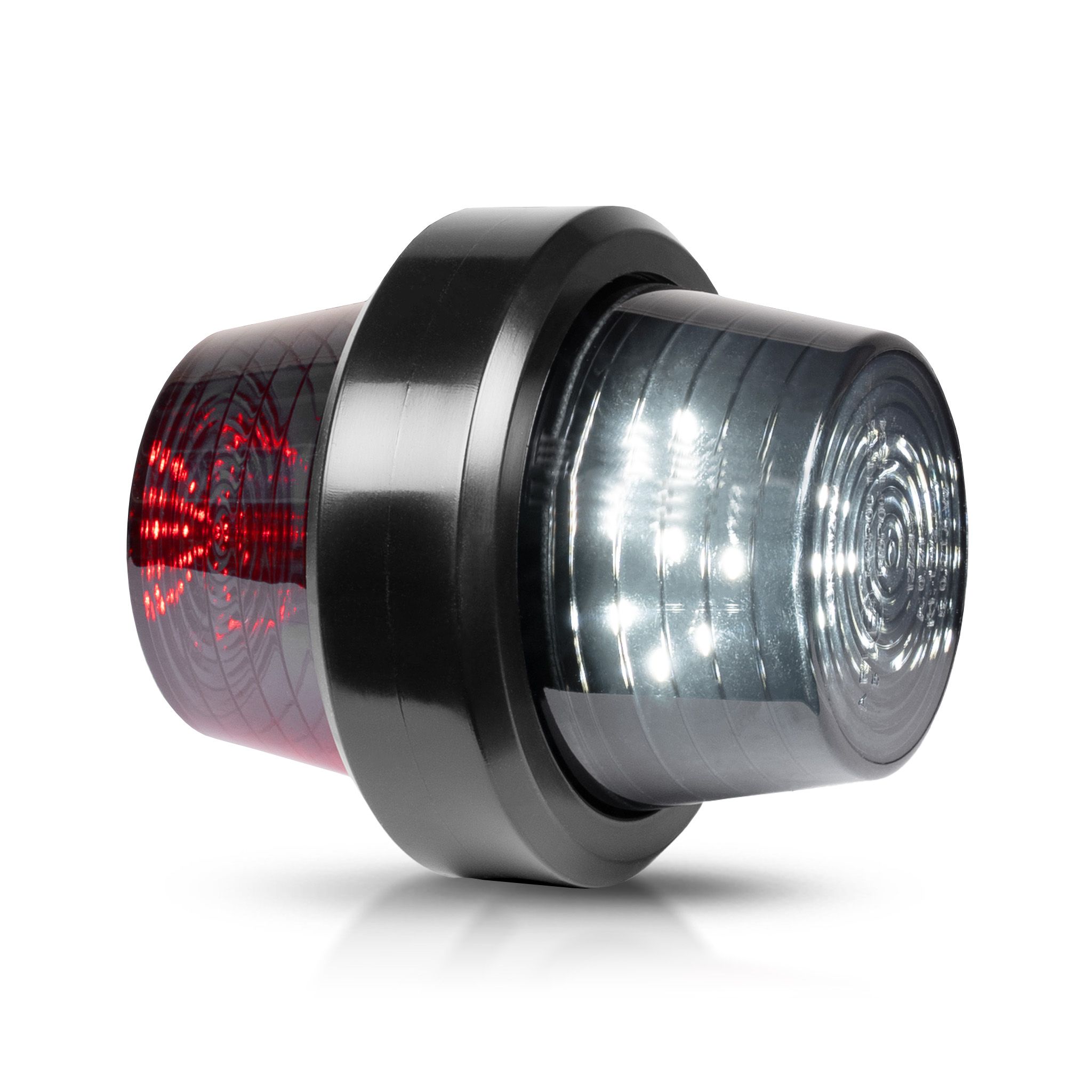

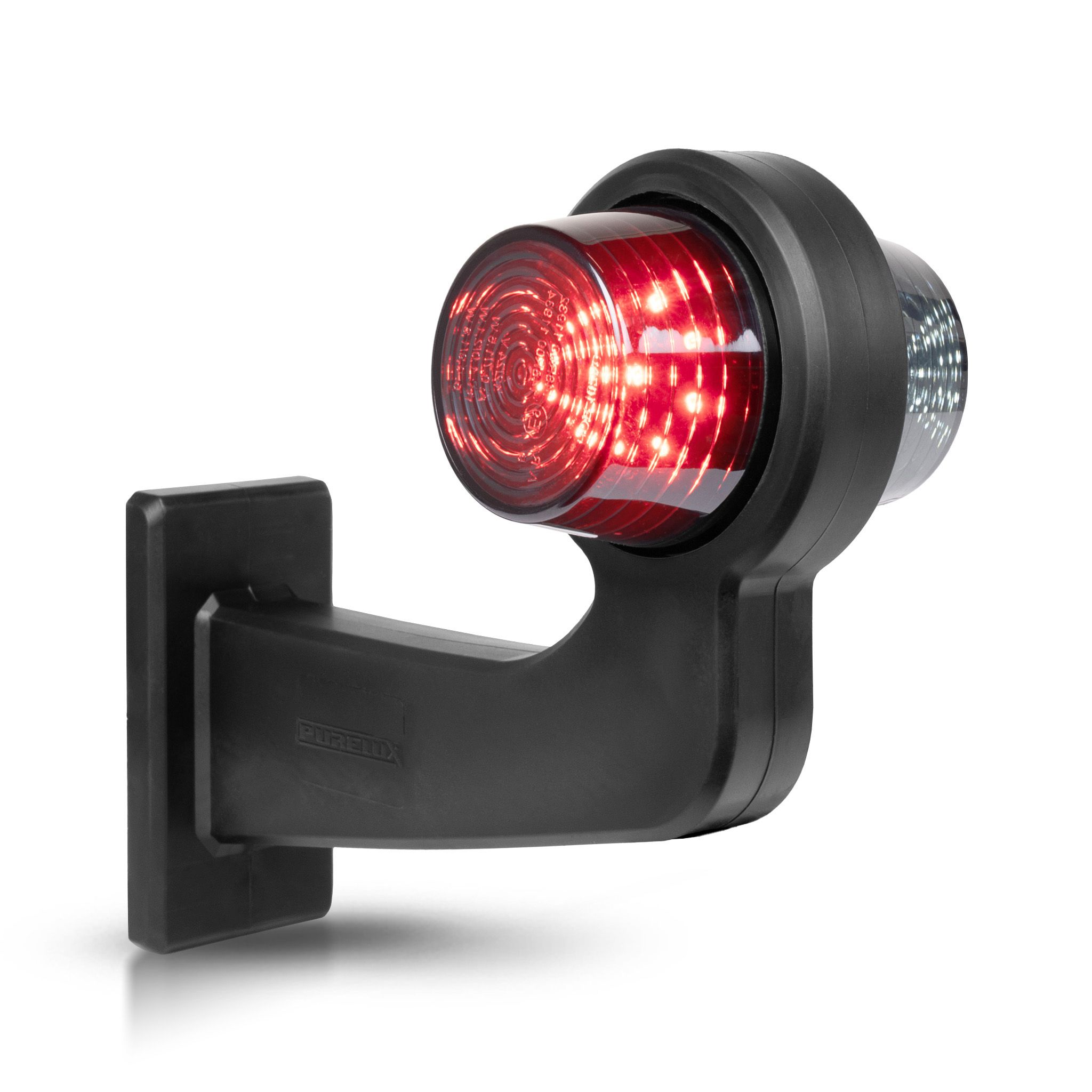

Marker light Purelux Spectrum S Short - 12/24V / 92 mm

Purelux Spectrum S Short is a stylish marker light with a short arm designed for heavy equipment, agricultural machinery, trailers and special transport. The light has two features approved for road use: red marker light at the rear and white at the front. The Spectrum S Short lamp allows the vehicle's sides to be clearly and visibly marked, which attracts the attention of those approaching from both the front and rear from afar. The black arm of the light combined with the darkened lens ensures a neat and discreet installation when the lights are off, but when switched on, the bright LEDs and even light distribution catch the eye and attract attention both on the road and in the park. Thanks to the symmetrical design, the same light can be installed on either the left or right side of the vehicle, so you don't need different lights on different sides!

The advantage of pole-mounted warning lights over surface-mounted or flush-mounted marker lights is their significantly better visibility in all situations. Marker lights that are recessed or surface-mounted into the vehicle frame can easily be hidden behind structures such as a trailer or a loading platform, while a pole-mounted marker light that is detached from the vehicle frame often extends over the load and trailer, ensuring better visibility. In addition, a pole-mounted marker light helps the driver to better visualize the outer lines of their vehicle, for example in narrow driveways or alleys. Pole-mounted marker lights are also particularly useful for vehicles that move slowly or stop frequently, such as trucks, tractors, plow trucks, excavators, loaders and other construction machinery. A pole-mounted marker light improves the visibility of the vehicle from both the front and rear, making the vehicle easier to spot.

Purelux Spectrum S is IP68-rated water and dust resistant and can withstand exceptionally variable temperatures (-30° - +50°C), making it an excellent choice for year-round conditions. The lamp is approved for road use according to the ECE R148 standard and is radio interference-protected according to the ECE R10 standard. Can be installed in both 12V and 24V systems. Two-year (24 months) warranty!

Spectum  product family includes two different models, one with a short and one with a long arm. You can find both models below:

Spectrum S Short	Spectrum S

Delivery content

• Purelux Spectrum S Short
• Mounting screws
• Installation and connection instructions (FI/EN/SE/NO/DK)

Specifications

• Product: Purelux Spectrum S Short
• Intended use: As a marker light in cars/work machines
• Operating voltage: 12-24V
• Manufacturer's stated current consumption: 0.15A @ 24V
• Manufacturer's declared power: 3.6 W
• Light color: White (front) and red (rear)
• Dimensions: 92 x 79 x 107 mm (Width x Height x Depth)
• Power cord length: 600 mm
• Weight: 230g
• IP rating: IP68
• Operating temperature: -30°C - +50°C
• Approvals: EMC: ECE R10, R148
• Warranty: 24 months
