Warning light / Marker light Purelux Spectre 3X Flash - 12/24V / 19 mm

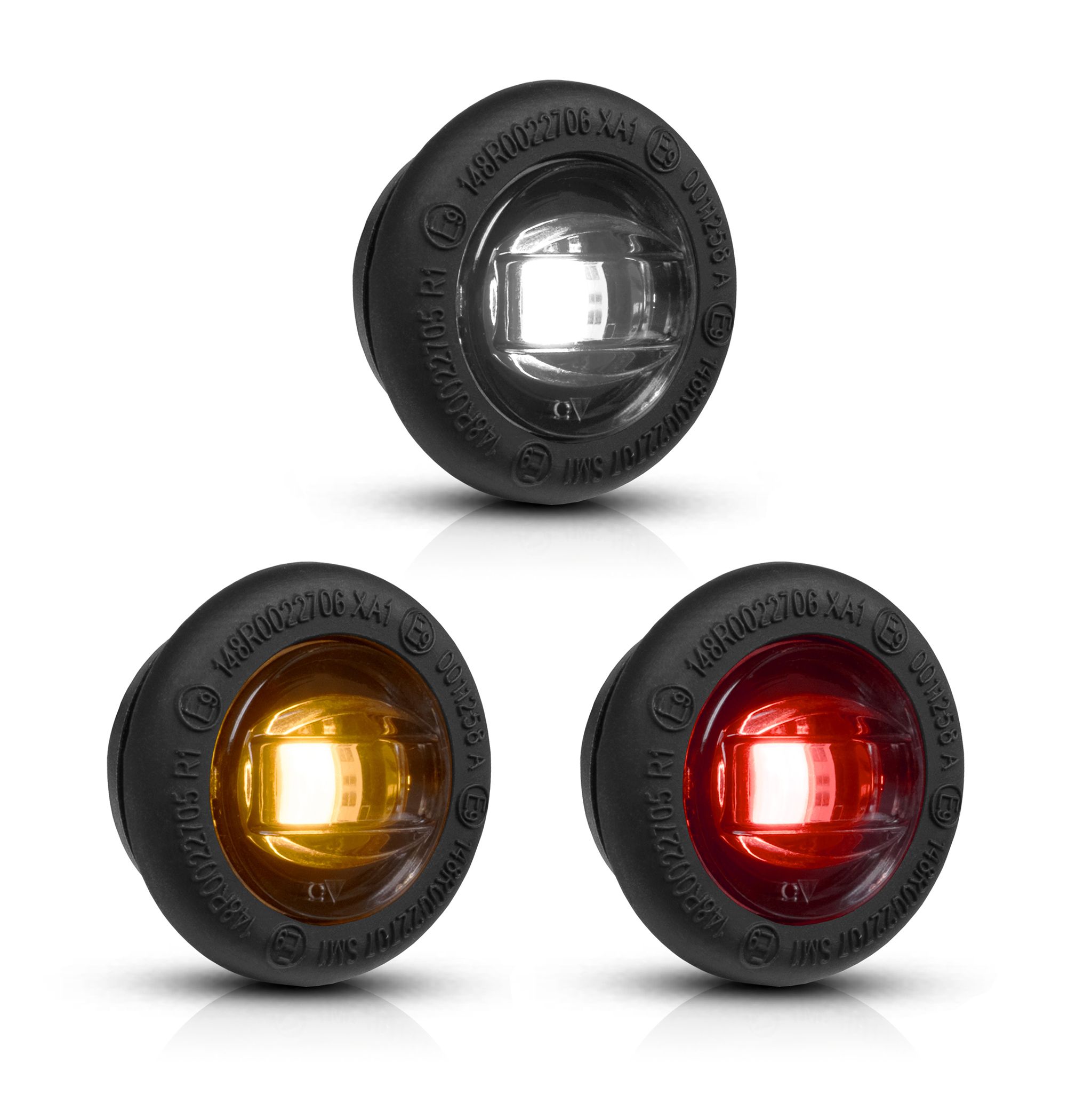

The Purelux Spectre 3X Flash is an extremely compact combined marker light and warning light, which is a unique addition to the manufacturer's Spectre range of warning/marker lights designed for professional drivers. These lights are equipped with both a steady orange, red or white marker light and a bright orange flashing warning light. Both functions of the lights are approved for road use, the marker lights according to the ECE R148 standard and the warning light according to the ECE R65 standard. The Spectre 3X Flash lights can therefore be used to fully cover the front, side and rear of the vehicle's marker lights, and in addition, the same lights can also be used as a warning light both on construction sites and in the middle of traffic.

The extremely small size and unique features of the Spectre 3X Flash lights make them the perfect solution for cars, vans, mini excavators, forklifts and other small work machines where there is not much installation space. They are also a great solution for all vehicles that need to attract the attention of those around them to ensure a safe working environment and overtaking.

Thanks to their excellent efficiency, the 3X Flash lights also consume less power than normal without compromising on brightness, which allows multiple lights to be installed on the same vehicle and, for example, to use additional and work lights simultaneously in the same vehicle without worrying about the battery life. The black body and tinted lens of the Spectre 3X Flash lights, combined with their very small size, make them inconspicuous when the lights are off, but thanks to the powerful LED and the even light distribution it produces, the vehicle will not go unnoticed when the lights are on. The lights come with mounting plates for both flat and curved surfaces, so installation is easy to implement practically anywhere!

In addition to their elegance, the Spectre lights are designed to withstand year-round use, as evidenced by their impact-resistant construction, complete protection against water and dust (IP68), and a lens made of practically unbreakable polycarbonate, which can withstand stone chips and scratches from branches without any problems. In addition, the lights can withstand exceptionally large temperature fluctuations with an operating temperature of up to -30°C - +50°C. Thanks to the durable and well-protected structure, the lights can be installed close to the road surface or wheel arches without fear of them giving out under constant stress. The lights are radio interference-protected in accordance with the ECE R10 standard, and they can be installed in both 12V and 24V systems. Two-year (24 months) warranty!

In addition to the Spectre 3X Flash, the same product family also includes the Spectre 1X and Spectre 2X models which doesn't have warning light function, only marker light. You can find all the Spectre X series lights below:

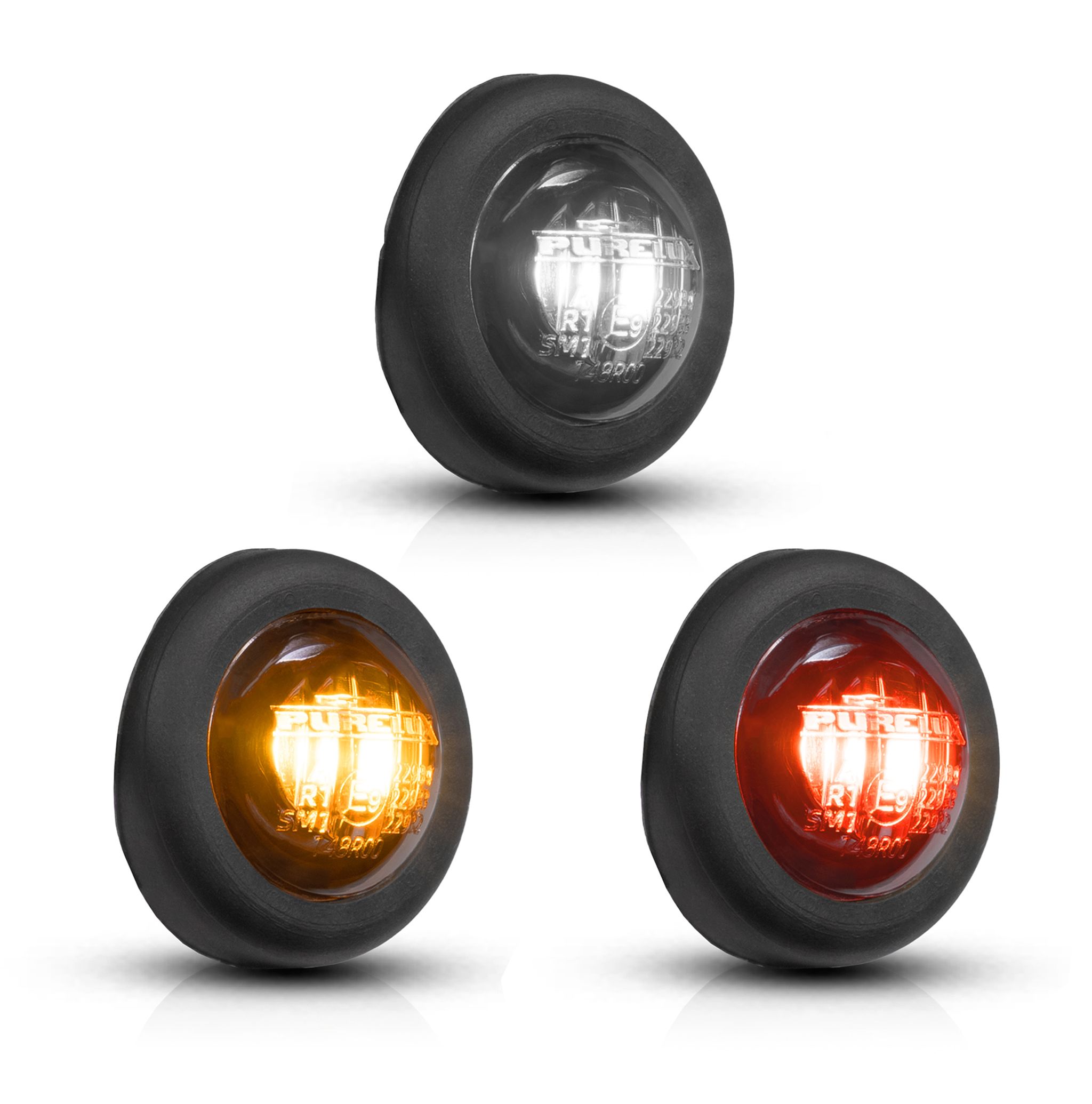

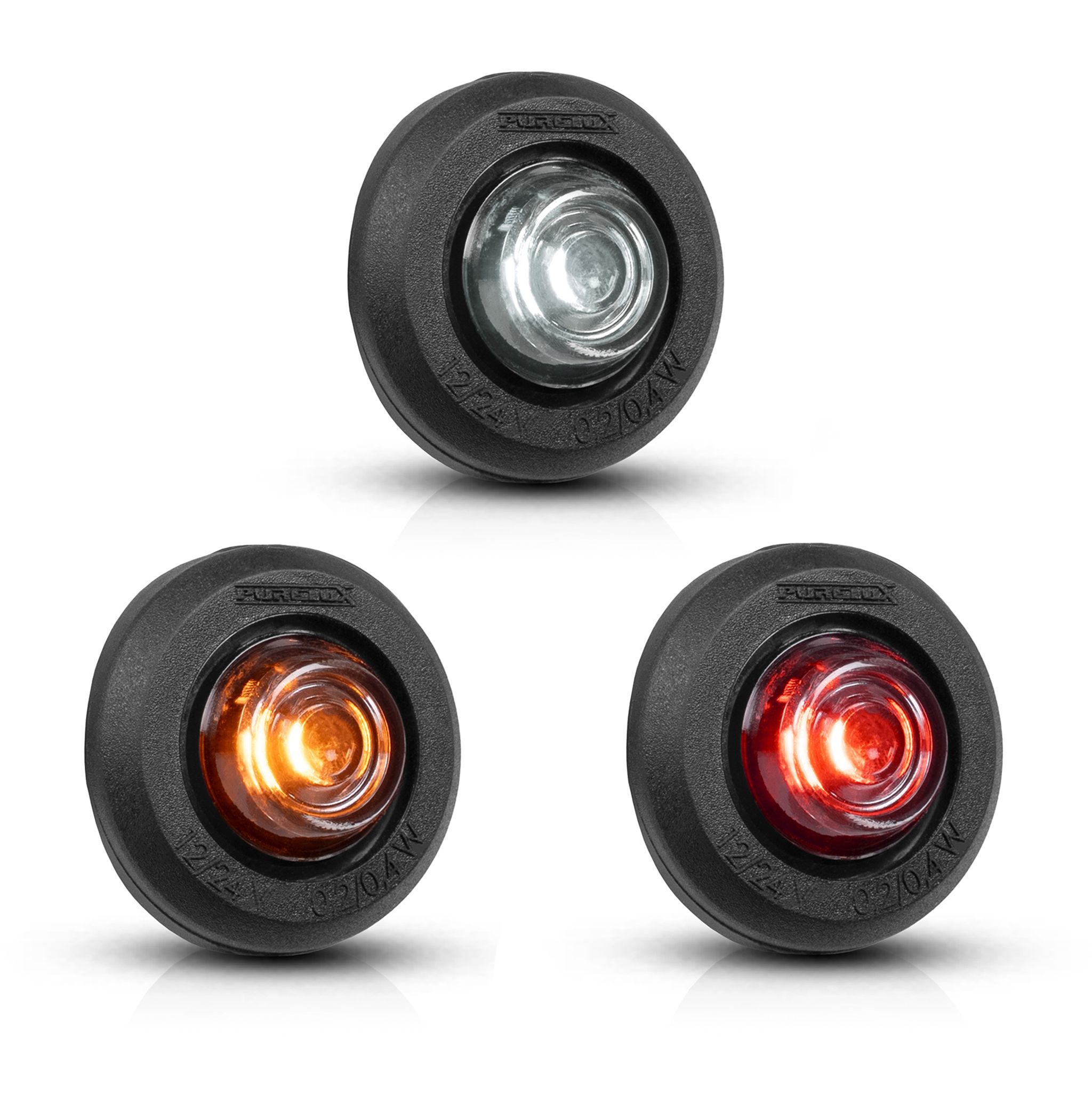

Spectre 1X	Spectre 2X	Spectre 3X Flash

Delivery content

• Purelux Spectre 3X Flash (Orange, red or white, your choice)
• Installation background for flat surfaces
• Mounting background on pipes/curved surfaces
• Power cord, no connector
• Installation and connection instructions

Specifications

• Brand and model: Purelux Spectre 3X Flash
• Intended use: As a marker light + warning light in vehicles and work equipment
• Operating voltage: 10-30V
• Current consumption measured by Valostore: 0.08A @ 24V
• Power measured by the light bulb: 2 W
• Light color: Orange, red or white + orange flashing light
• Functions: Marker light + Hazard light
• Dimensions: 18.5 x 18.5 x 21.6 mm (Width x Height x Depth)
• Power cable length: 250 mm
• Weight: 20g
• IP rating: IP68
• Other: Slightly tinted lens
• Operating temperature: -30°C - +60°C
• Approvals: ECE: R10, R65, R148, CE, RoHS
• Warranty: 24 months

Operating modes

• Single flash (R65)
• Fast double flash output
• Slow double flash
• Quadruple flash
• Combination of single and double flash output
• Combination of single and quadruple flash
• Pulse
• Continuously burning

Quick guide

Wiring

• Red: Power (+)
• Black: Ground (-)
• Yellow: Synchronization / Changing operating mode / Reset
• White: Alternating sync
• Green: Marker light

You can find the manufacturer's installation and connection instructions by clicking here.
