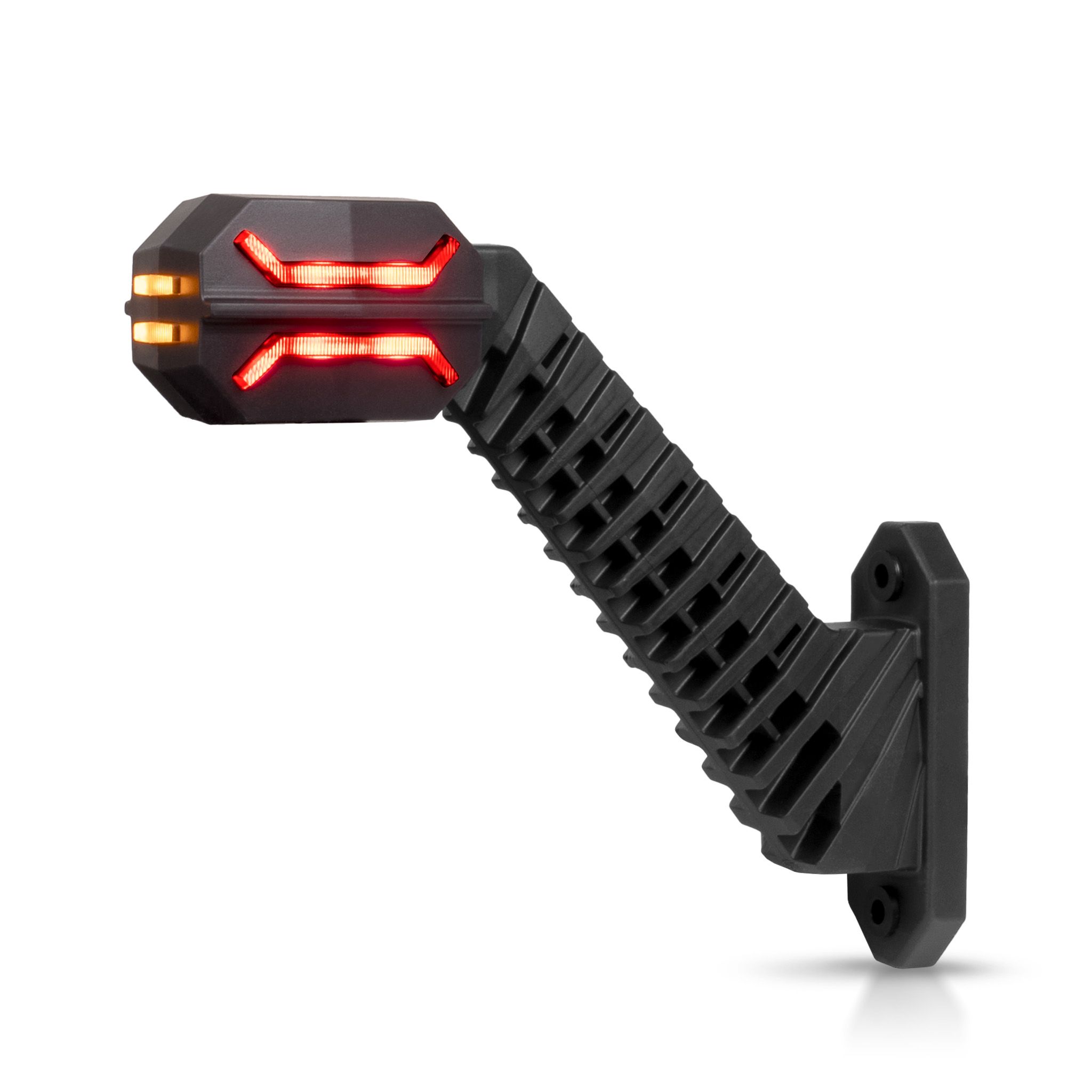

Marker light Purelux Polearm - 12/24V / 200 mm

Purelux Polearm is a stylish marker light with a long rubber arm, specially designed for heavy equipment, agricultural machinery, trailers and special transport. The light has three features approved for road use: red marker light to the rear, amber to the side and white to the front. Thanks to the three different functions, one light can be used to draw the attention of people approaching from all directions to the vehicle, whose side lines are marked by brightly shining LED lines embedded in the black arm. The unique design, even light distribution and bright glow of the LEDs not only catch the eye on pitch-black nights, but also at dusk and in poor weather conditions, ensuring the safety of both the vehicle equipped with the lights and other people moving in its vicinity in all situations.

The advantage of pole-mounted warning lights over surface-mounted or flush-mounted marker lights, for example, is their significantly better visibility in all situations. Marker lights that are recessed or surface-mounted into the vehicle frame can easily be hidden behind structures such as a trailer or a loading platform, while a pole-mounted marker light that is detached from the vehicle frame often extends over the load and trailer, ensuring better visibility. In addition, a pole-mounted marker light helps the driver to better visualize the outer lines of their vehicle, for example, in narrow driveways or alleys, and thanks to the flexible rubber arm, the lamp can also safely hit obstacles on the way. If the lamp body scratches the adjacent wall when reversing in a narrow alley, for example, the driver can change his or her driving line before a collision without damage.

Pole-mounted marker lights are also particularly useful for vehicles that move slowly or stop frequently, such as trucks, tractors, plow trucks, excavators, loaders and other construction machinery. The marker light mounted on the end of the pole improves the vehicle's visibility, especially from the side, and makes the vehicle easier to spot by other road users. Purelux Polearm lights are protected from water and dust according to the IP68 classification, and their flexible rubber arm is resilient to impact forces, ensuring a long service life even in the toughest applications. The lamp is approved for road use according to the ECE R148 standard and is radio-interference-protected according to the ECE R10 standard. Can be installed in both 12V and 24V systems. Two-year (24 months) warranty!

Note! Polearm lights are available in both left and right side mounted versions, select the quantity of each you need from the product options, or a ready-made set that includes 1 piece of each.

Polearm  product family includes two models, one with a short and one with a long arm. You can find both models below:

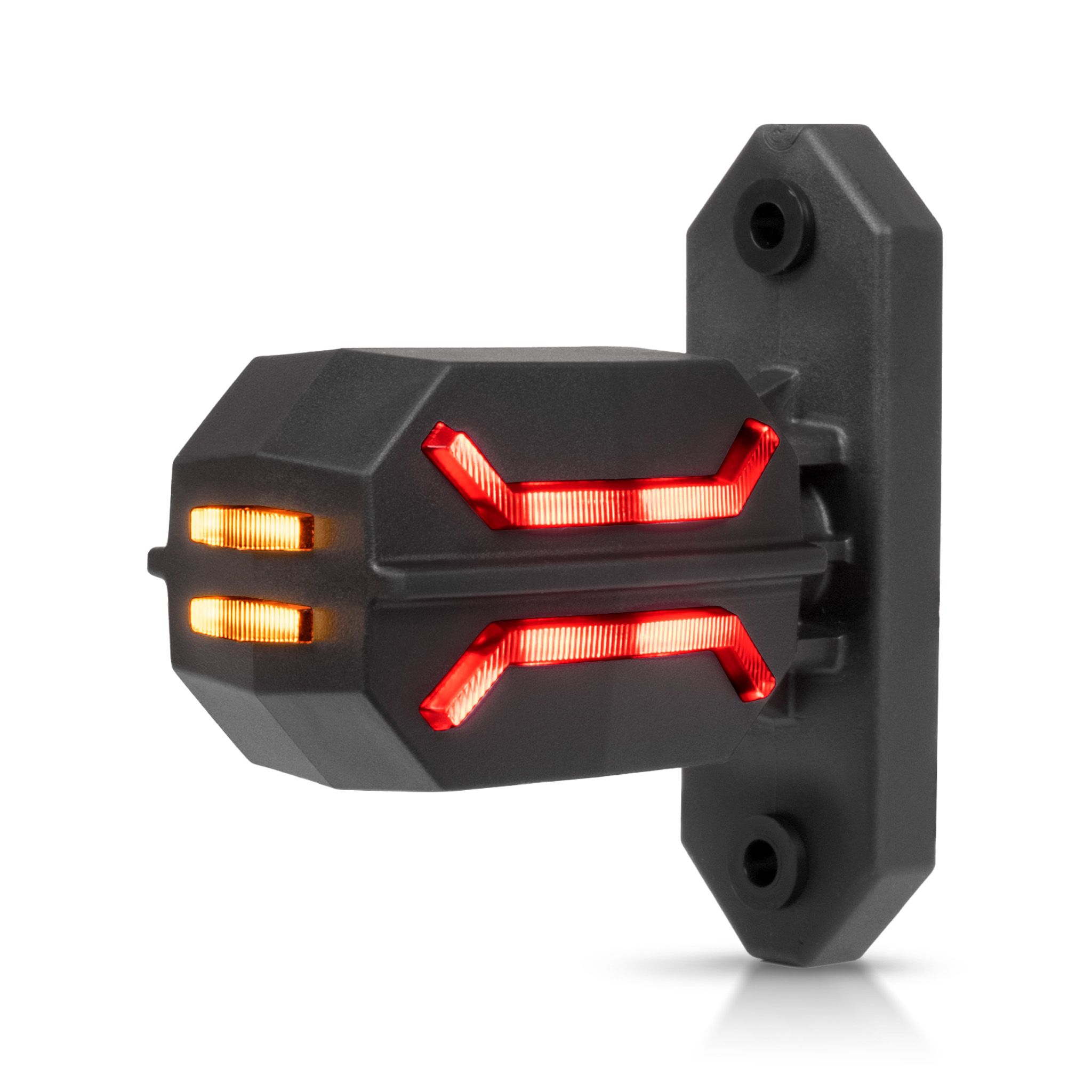

Polearm Short	Polearm

Delivery content

• Purelux Polearm (right or left, your choice)
• Mounting screws
• Installation and connection instructions (FI/EN/SE/NO/DK)

Specifications

• Product: Purelux Polearm
• Intended use: As a warning/marker light in cars/work machines
• Operating voltage: 12-24V
• Manufacturer's stated current consumption: 0.08A @ 24V
• Manufacturer's declared power: 1.9 W
• Light color: White (front), amber (side), red (rear)
• Dimensions: 50 x 179 x 200 mm (Width x Height x Depth)
• Power cord length: 500 mm
• Weight: 250g
• Material: Rubber stem, polycarbonate lens
• IP rating: IP68
• Operating temperature: -30°C - +50°C
• Approvals: EMC: ECE R10, R148
• Warranty: 24 months
