Aluminium profile for LED strip AGGE Wide Recessed - Recessed-mounted
Aluminum profile for LED strips intended for flush mounting, equipped with an opal cover and an aluminum frame that effectively conducts heat generated by the strip away. For easy and neat installation of the light strip! The profile can be shortened or extended if necessary! Length 100 cm. Max. for a one 20 mm wide or two 10 mm wide strips.
Select option:
Product Faq
Aluminum profile for LED strips intended for flush mounting, equipped with an opal cover and an aluminum frame that effectively conducts heat generated by the strip away. For easy and neat installation of the light strip! The profile can be shortened or extended if necessary! Length 100 cm. Max. for a one 20 mm wide or two 10 mm wide strips.

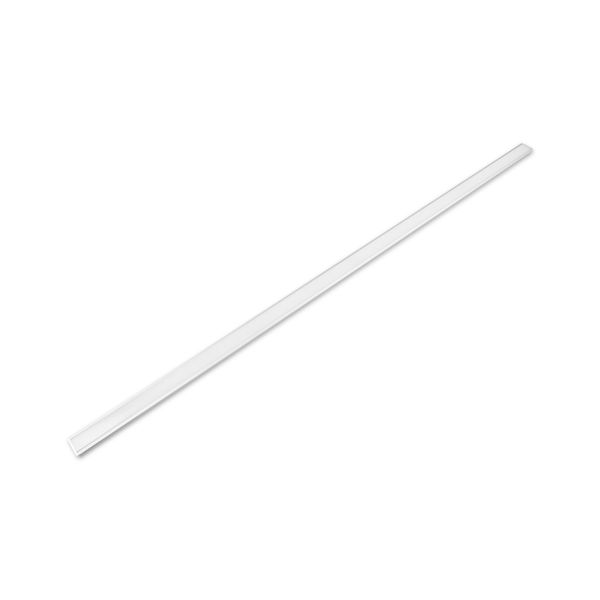

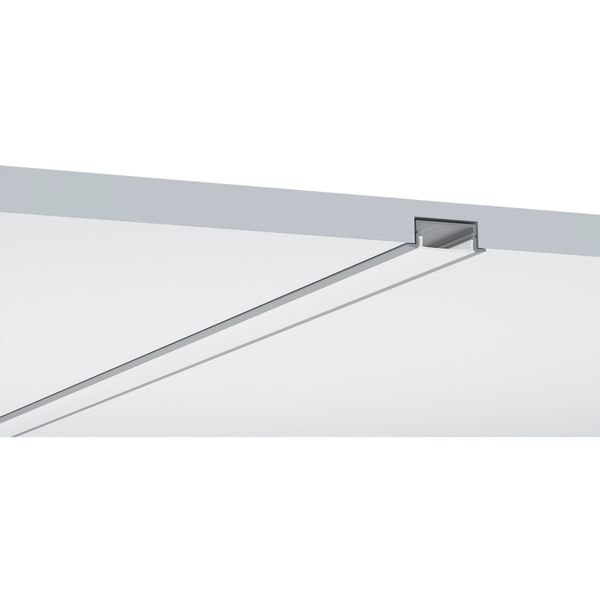

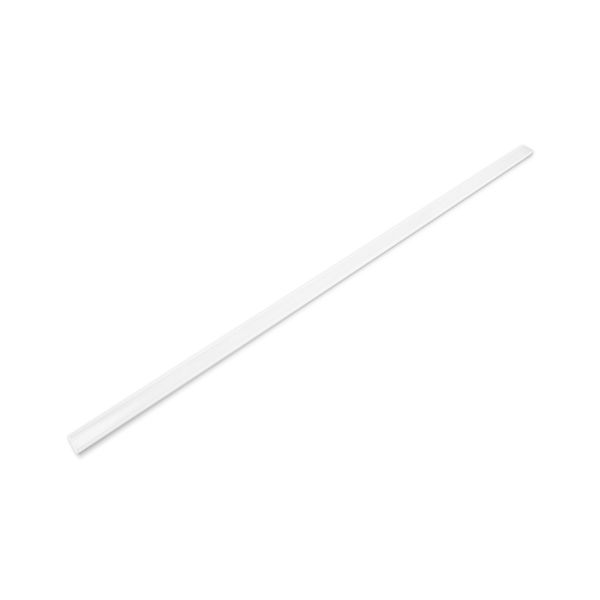

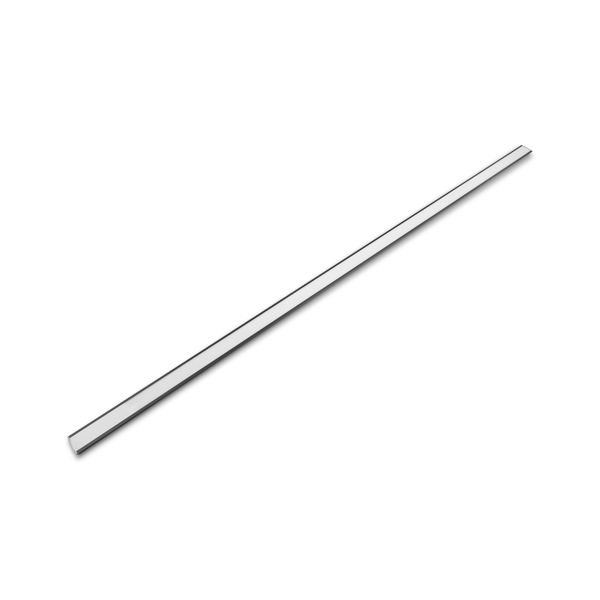

AGGE Wide Recessed is a 100 or 200 cm long recessed aluminum profile for LED strips, which allows for very clean and easy installation of lighting solutions using light strips. Using this profile, one or two max. 10 mm wide light strips can be recessed into furniture, walls or ceilings, allowing the LED strip to be installed completely flush with the other surface. Thanks to the profile , the light strip does not curl or sag, but the installation is a stylish and unobtrusive part of the home interior even when the strip is not on. The profile can be shortened to the desired length, for example using a hacksaw or circular saw, and if necessary, long ensembles can also be built from the profiles by installing several profiles in a row.

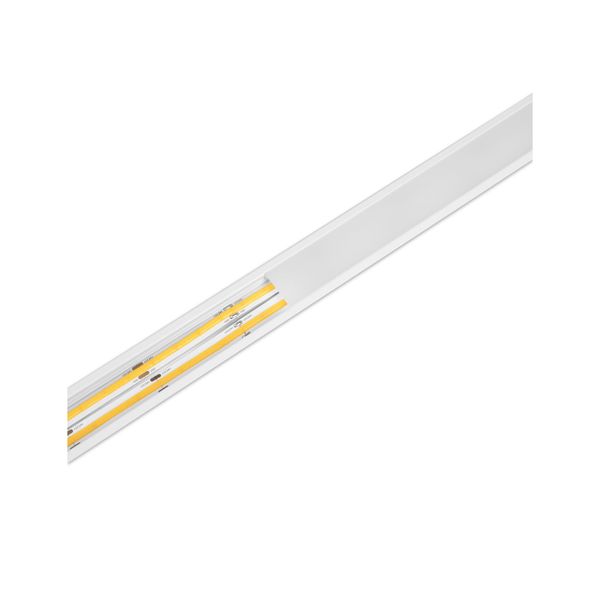

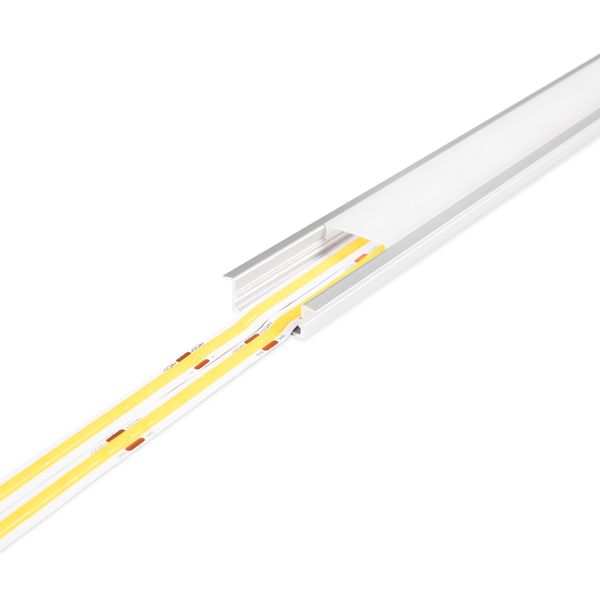

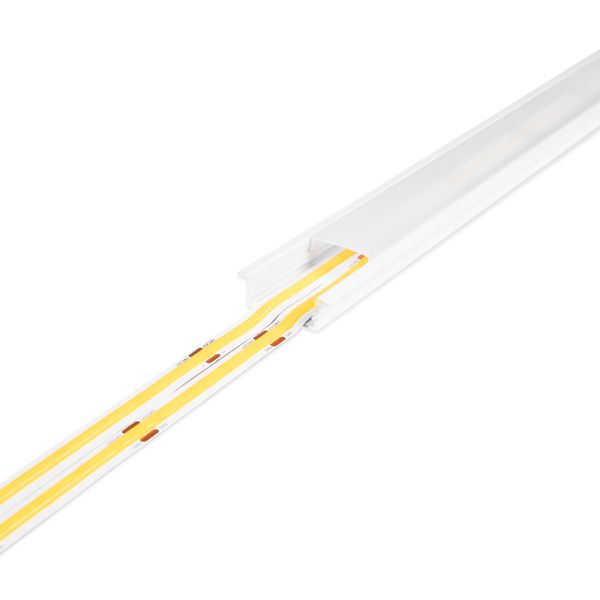

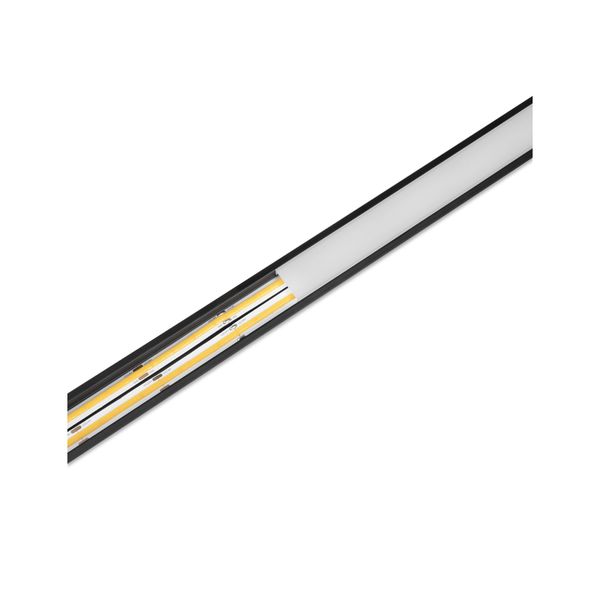

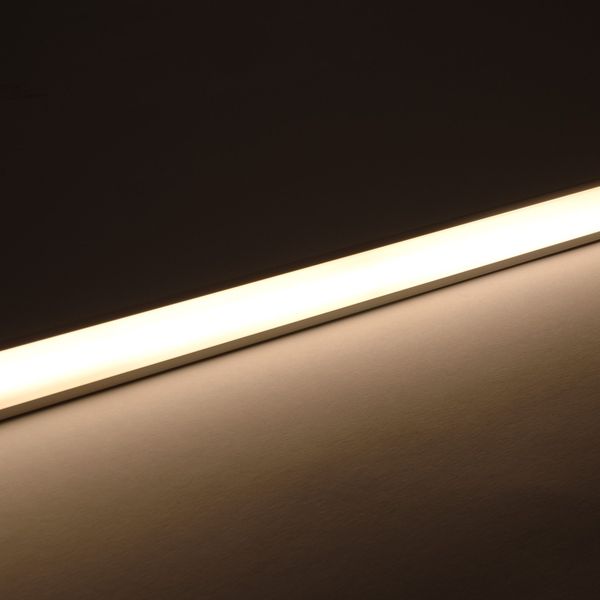

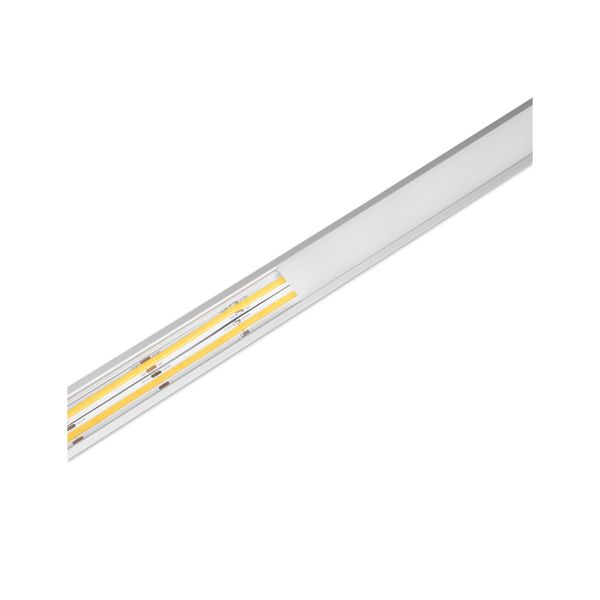

The profile has a stylish opal dome on top, which diffuses the light, making it much softer than when using a bare LED strip, making the light more pleasant to the eye. In addition, the opal dome protects the light strip from splashes. This aluminum profile can be used to install two 8 mm or 10 mm light strips side by side, which doubles the light output of the strip, but of course it can also be used with just one LED strip when you want to use a wider mounting strip, e.g. for purely aesthetic reasons.

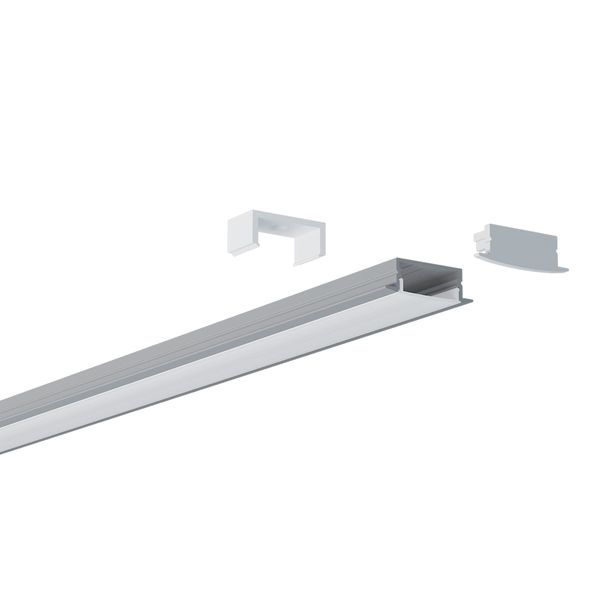

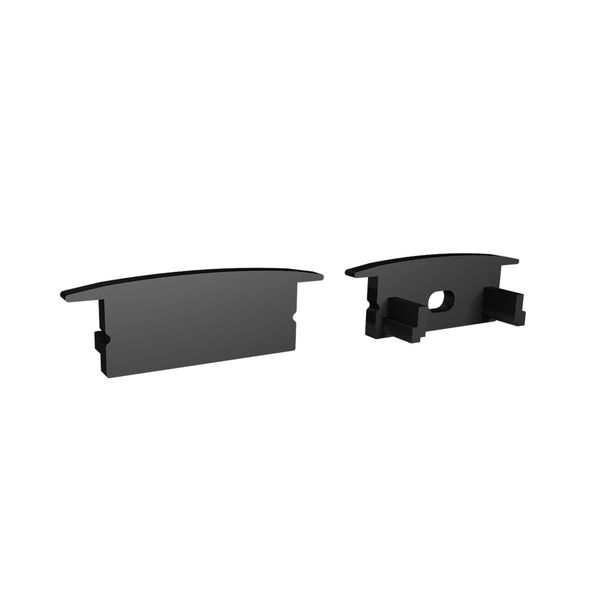

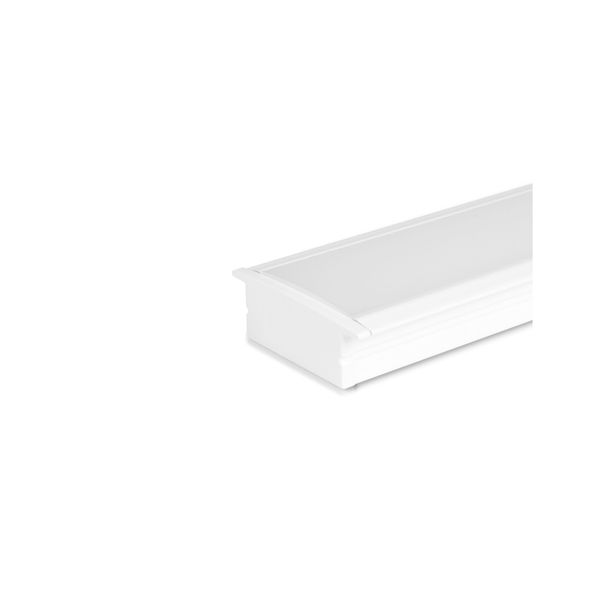

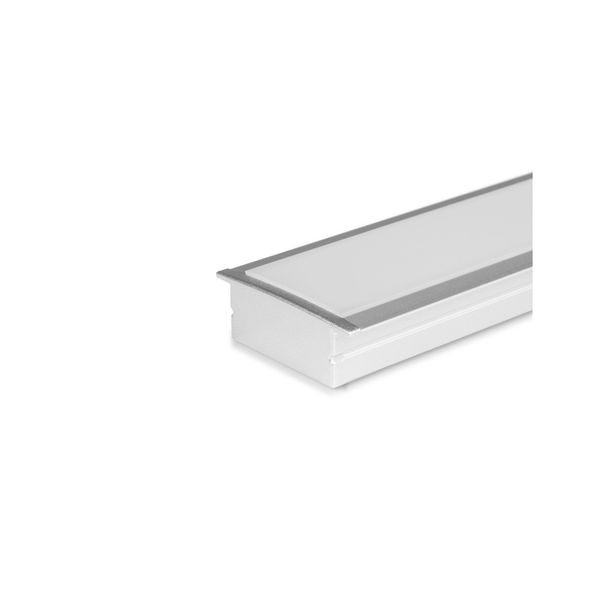

The light strip is easy to place inside the profile without any special tools, after which the aluminum profile can be placed in the desired position. The aluminum profile effectively conducts the heat generated by the LED strip away, which also extends the service life of the light strip. The package also includes two end caps, one of which is closed and the other has a ready-made hole for the LED strip to pass through. The profile is easy to attach to practically any surface, either by using the fasteners provided or by drilling screws (not included) directly through the profile before installing the strip.
This aluminium profile is suitable for all LED strips up to 20 mm wide (AGGE 230V strips do not fit inside the profile due to their thickness).
AGGE Recessed, narrow
AGGE Surface, narrow
AGGE Wide Surface, wide
Delivery contents (100 cm)
- AGGE Wide Recessed aluminum profile, 100 cm
- 2 x brackets
- 2 x end caps
Delivery contents (200 cm)
- AGGE Wide Recessed aluminum profile, 200 cm
- 6 x brackets
- 2 x end caps
Technical specifications
- Product: Aluminum profile for LED strips AGGE Wide Recessed
- Intented use: Neat installation of light strips

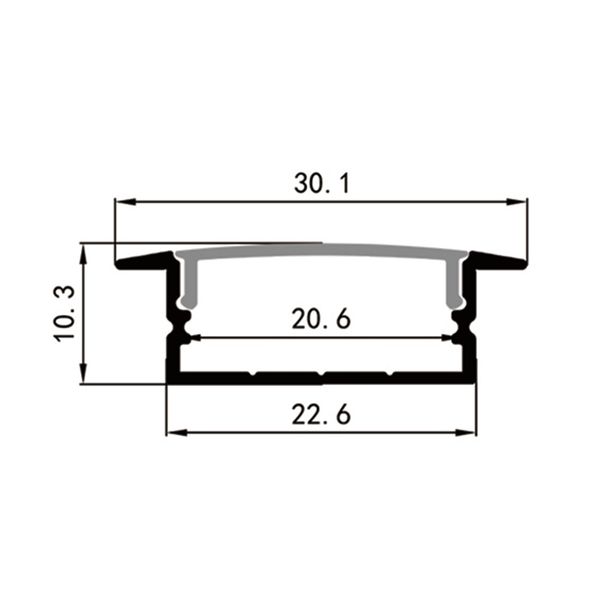

- Dimensions 100 cm: 1000 x 30.1 x 10.3 mm (Length x Width x Depth)
- Dimensions 200 cm: 2000 x 30.1 x 10.3 mm (Length x Width x Depth)
- Max. width of the light strip to be installed: 20 mm
- Countersink width: 22.6 mm
- Material: Aluminum body, opal diffuser
- Color: Silver, white or black
- Comes with 2 end caps, 2 brackets
- Intended for flush-mounted installations
- Warranty: 24 months
