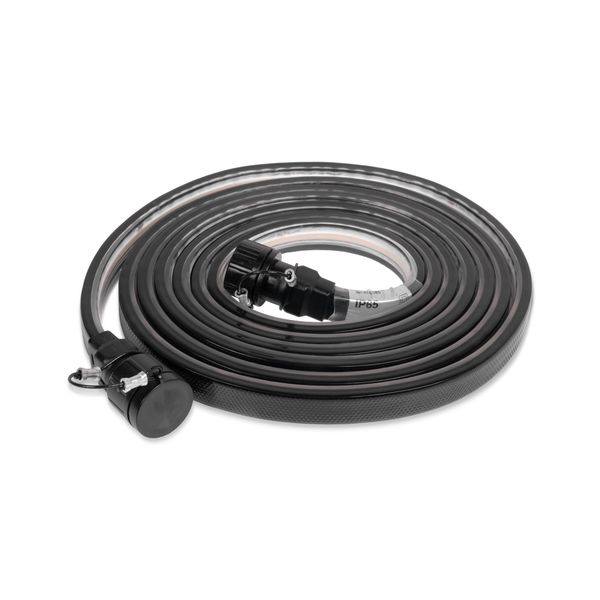

LED strip / Work light AGGE COB Dark Edition 230V - 1500 lm/m, 3 m

The AGGE COB 230V LED strip is a light strip suitable for professional and home use, powered directly from the mains (230V), which helps with general lighting in homes, holiday homes or construction sites, as well as construction and renovation sites. The COB strip differs from traditional LED strips in that it is equally bright along the entire length, and it produces completely spot-free lighting. The COB strip can therefore be used to create completely even and beautifully diffused lighting, for example on a terrace, carport, walkway railings or yard plantings. The strip's even light is also an excellent choice for construction sites and for performing tasks that require precision. The extremely flexible and durable structure, neutral colour temperature and bright light output make the strip a good choice even for challenging environments. The strip is fully waterproof according to the IP65 classification, and it withstands changing conditions very well, so it can be used without worry even in damp rooms and outdoors regardless of the season. The back of the light strip is completely black, making it a modern and stylish option, especially for home use against dark fences, houses, sheds and terraces.

The strip has a CRI value (color rendering index) of over 80, a neutral color temperature of 4000 Kelvin, and a completely even light distribution, so it creates lighting that is very pleasant to the eyes and reproduces the colors of the environment naturally.   Thanks to its high CRI value and neutral color temperature, the AGGE COB light strip can also be used well in renovation projects to provide additional light, for example for painting work, or to create lighting similar to natural light in windowless spaces. The light strip can be extended up to 100 meters (1200W) if necessary, so the lighting can always be adjusted to suit your needs. The strip has 260 LEDs per meter, and its light output is up to 1500 lumens per meter. The light opening angle is 120°, and the light strip distributes the light completely evenly around itself, providing lighting over a very wide area.

Both ends of the LED strip have a contact cap, one of which can be connected to a power cord and the other end can be connected further with another strip, if necessary. You can buy either just one LED strip or a complete set, which comes with a 170 cm long power cord. If necessary, the power cord can also be purchased separately: Power cord AGGE, 170 cm. The strip can be extended up to one hundred meters, or 1200W, so that a larger area can be illuminated at once.

As accessories for the LED strip, a splitter piece is available, which can be used to branch off two separate light strips from one power cord, and in addition, plastic brackets are also available, with which the strip can be attached to the wall or ceiling to hang. A mounting strip is also available for attaching the strip, which allows it to be installed neatly. Magnetic cable clips can also be used for fastening, which are available in both 22 mm and 31 mm sizes. There's also an emergency power bank available for the light strip, for example in case of power outages.

NOTE! The strip operates on 230V DC (instead of AC), meaning it requires its own power cord (with a DC transformer) when connected to the mains. Straighten the entire strip before connecting to the power to avoid overheating!

The black background strip is available in two different lengths, and the traditional clear background strip is also available. You can check out other designs at the links below:

• LED strip AGGW COB 230V Dark Edition - 1500 lm/m, 3 m
• LED strip AGGE COB 230V - 1500 lm/m, 3 m
• LED strip AGGE COB 230V - 1500 lm / m, 10 m
• LED strip AGGE COB 230V Dark Edition - 1500 lm / m, 10 m
• LED strip AGGE COB 230V - 1500 lm / m, 25 m (Drum Kit)

On this product page you can buy a 10 m light strip with a power cable or a 10 m extension piece for an already finished AGGE LED strip (power cable not included). If you want to control the light strip remotely, you can purchase an AGGE remote-controlled socket set to accompany it, which allows you to turn the strip on or off from up to 40 meters away.

Delivery content (Strip with power cord)

• 1 x LED strip, 3 m
• Power cord with DC transformer
• Instructions

Scope of delivery (Extension piece, 3 m)

• 1 x LED strip, 3 m
• Instructions for use

Specifications

• Product: AGGE COB 230V, 3 m
• Intended use: Construction site lighting, home use outdoors and indoors
• Manufacturer's declared luminous efficacy: 1500 lm / m, total 4500 lm
• Operating voltage: 230 V (DC)
• Manufacturer's stated power consumption: 12W / m, total 36 W
• Dimmable: No
• Color temperature: 4000 K
• Color rendering (CRI): Ra80+
• Light beam angle: 120°
• Watertightness: IP65 (strip and connections) / IP44 (plug)
• Protection class: II
• Dimensions LED strip: 16 x 9 mm (Width x Height)
• Power cord length: 1700 mm
• Operating temperature: -25°C - +45°C
• Storage temperature: -10°C - +30°C
• Other: The strip can be extended up to 100 meters
• Warranty: 12 months

Quick Guide

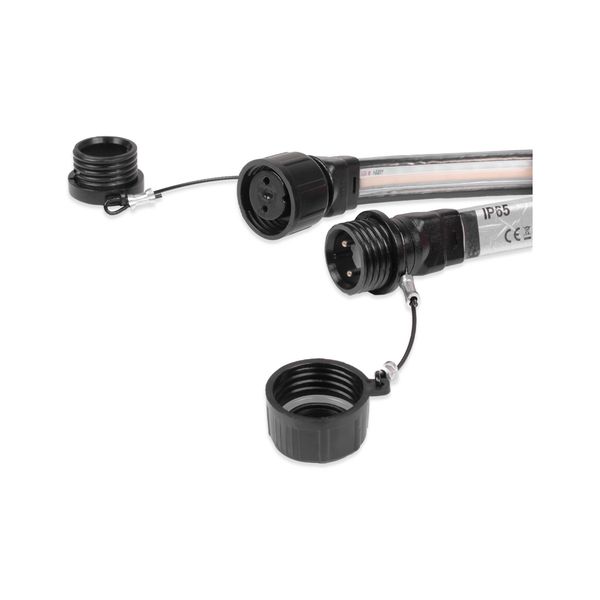

Connecting LED strips together

1. Turn the connector cap counterclockwise to remove it from the first LED strip.
2. Disconnect the power cable from the second LED strip set
3. Connect the LED strip sets by connecting the female and male connectors together. Tighten the connection cap.
4. Repeat the previous steps for the next LED strip sets.
5. Attach the end cap to the strip and tighten carefully so that it does not come loose and water does not get inside the cap.

NOTE! Make sure that the power cable is not connected to the power outlet when connecting the strips together. Do not exceed the manufacturer's stated limit of 100 meters or the maximum power rating of 1200 W! The strip cannot be cut either. Straighten the entire strip before connecting to the power to avoid overheating!

LED strip introduction

• Straighten the entire strip before connecting to the power supply to avoid overheating! Make sure that the LED strip connections are properly tightened. Install the LED strip according to the instructions and with the fixing materials intended for the installation, and make sure that the environment is free of hazardous substances, such as water, flammable gases or fine dust. Connect the power cable to a 230V power outlet.

You can find the manufacturer's user manual (FI/SE/NO/DK/EN) by clicking here.
