Led bar Strands Siberia XP SRC 42" - Curved / 107 cm / 234W / Off-road

The Siberia XP SRC is a slim body led bar serie designed purely for off-road use, offering both performance and quality in one package. Available in four different panel sizes, the Siberia XP SRC 42" is the second largest model in its range. Featuring two different power modes, a wide combined beam and a slim design, the XP SRC 42" with unlimited Xperience power mode delivers 13,700 lumens of light output and a beam of up to 530 metres @ 1 lux, according to the manufacturer. The luminaire is also equipped with a 5700 kelvin colour temperature, which works more effectively than cooler shades even in poor conditions such as snow and rain. The panel also features a white and a yellow parking light, which can be activated to activate the "Hello" function, allowing the light to flash a few times in style to greet other motorists. The size of the Siberia XP SRC 42" makes it ideal for larger installations such as trucks or roof-mounted applications. Due to its high power, this luminaire is not approved for road use!

The Siberia XP SRC series is designed to withstand heavy use and stress, thanks to its weatherproof aluminium body and high-strength polycarbonate lens. With an IP68/IP69K rating, the panels are fully dust and water resistant, and a wide operating temperature range (-30°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Three-year (36 months) warranty!

Note! Although the panel has two different power modes, neither of them is approved for road use!

The Strands Siberia XP SR series includes four auxiliary lights. Other models can be found below:

• Strands Siberia XP SRC 22"
• Strands Siberia XP SRC 32"
• Strands Siberia XP SRC 42"
• Strands Siberia XP SRC 50"

Basic delivery content

• Strands Siberia XP SRC 42"
• Power cord without connector, 2500 mm
• 2 x Width-adjustable footrests
• Connection and installation instructions (EN)

Delivery contents (Light + wiring harness)

• As above, but in addition
• Relay wiring harness Purelux HD, 500W
  • Note! Due to the high power, there are no connectors on the light or the wiring harness, so you have to make the connection yourself.

Technical data

• Make and model: Strands Siberia XP SRC 42"
• Purpose: As an auxiliary light for cars / Off-Road vehicles / machinery.
• Operating voltage: 10-32V
• Reference number: - (NOT E-approved)
• Power consumption as stated by the manufacturer:
  • Limited Power Mode: 5.83A 12 V / 2.91 A @ 24 V
  • Xperience mode: 19.5A @ 12V / 9.75A @ 24V
• Power rating as stated by the manufacturer:
  • Limited power mode: 70 W
  • Xperience mode: 234 W
  • White parking light: 18.7 W
  • Yellow parking lamp: 18.7 W
• Light output as declared by the manufacturer:
  • Limited power mode: 4175 lm
  • Xperience mode: 13 700 lm

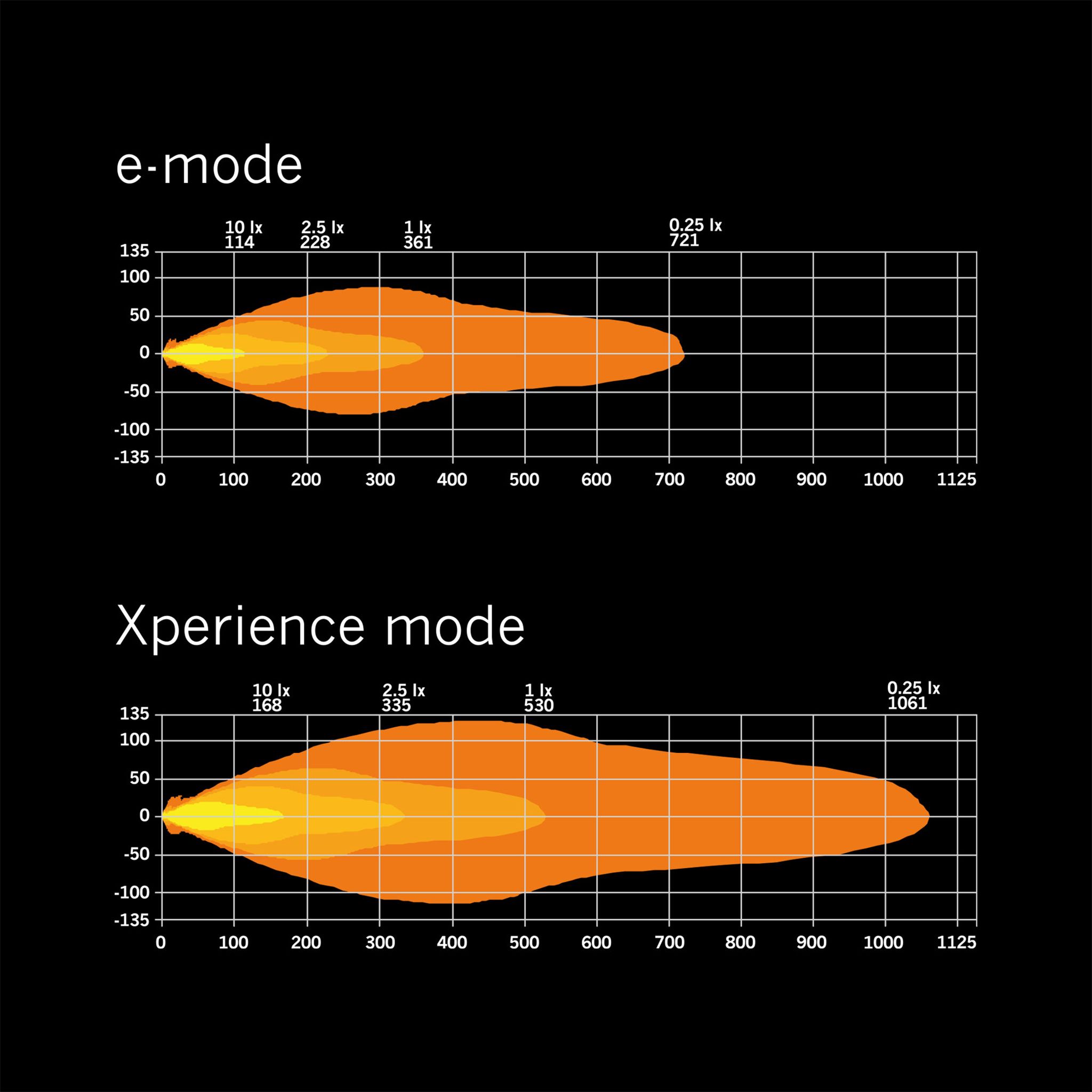

• Range declared by the manufacturer:
  • Limited power mode: 361 m @ 1 lux / 722 m @ 0.25 lux
  • Xperience mode: 530 m @ 1 lux / 1060 m @ 0.25 lux
• Manufacturer's specified colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: No connector, direct wires
• Cable length: 2500 mm
• Operating temperature: -30°C to +65°C

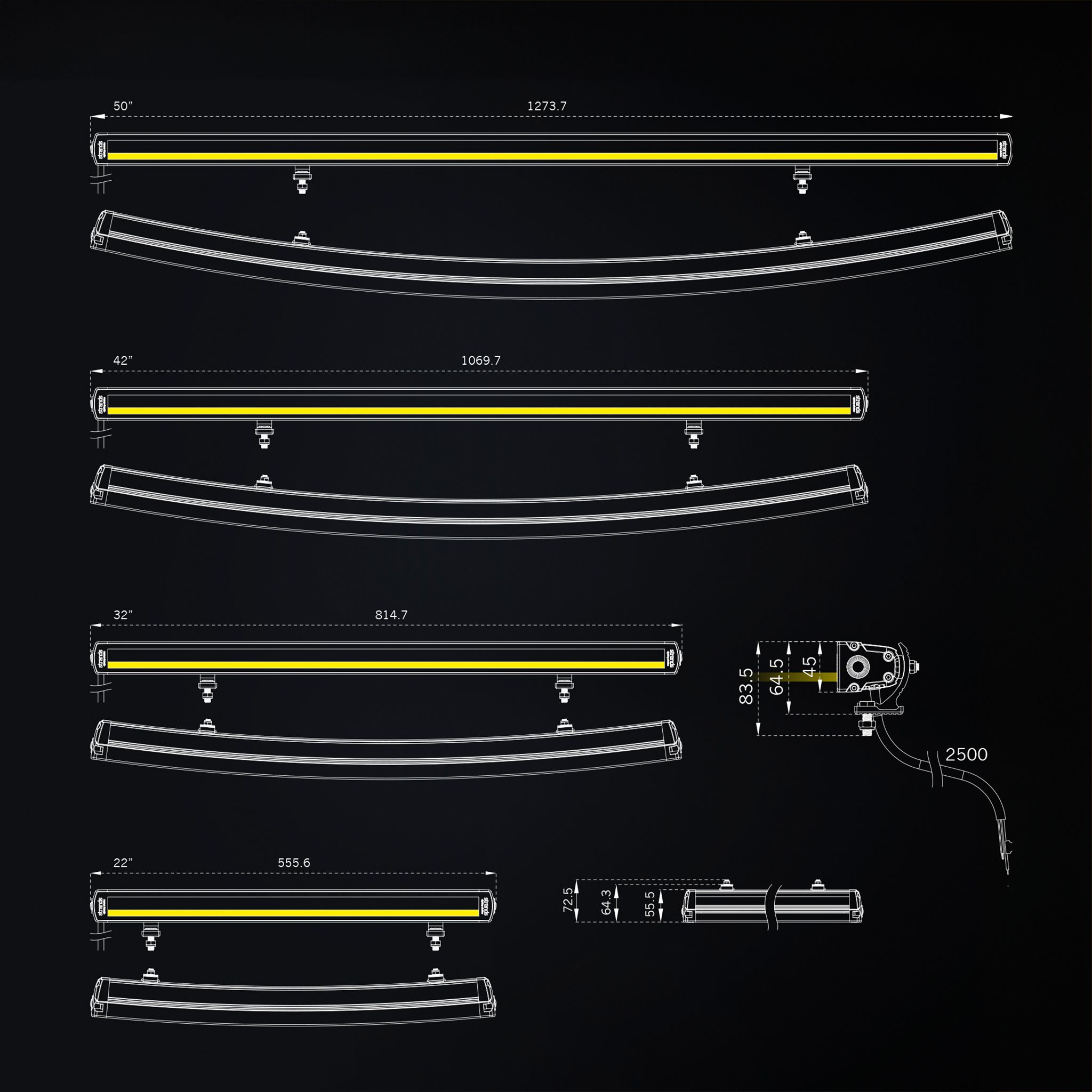

• Dimensions: 1070 x 45 x 102.6 mm (Width x Height x Depth)
  • Height with feet: 64.5 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10
• Warranty: 36 months

Quick guide

For the manufacturer's installation and wiring instructions (EN) click here: Strands Siberia XP SRC (opens in new window).
