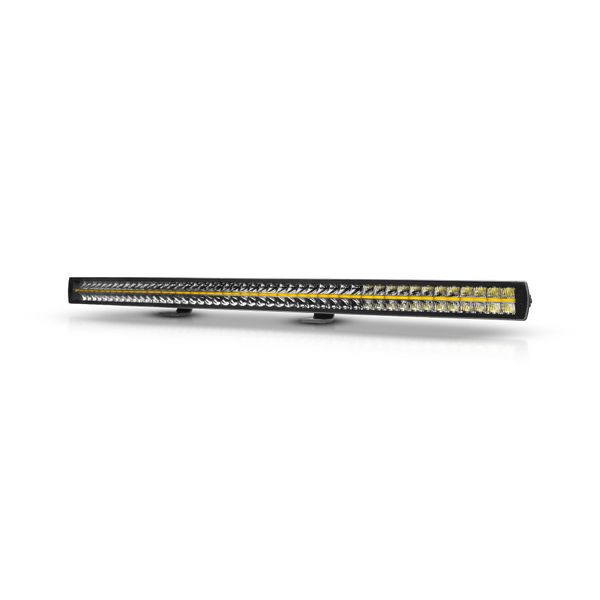

Led bar Strands Siberia XP DRC 50" - Curved / 128 cm / 404W / Off-road

The Siberia XP DRC is a modern range of additional curved lights designed purely for off-road use, offering both maximum performance and top quality in a stylish package. Available in four different panel sizes, the Siberia XP DRC 50" is the largest and most powerful model in the range. With two different power modes and a wide combined beam, the XP DRC 50" with unlimited Xperience power mode delivers 28,100 lumens of light output and a wide beam up to 714 metres @ 1 lux, according to the manufacturer. The panel is also equipped with a colour temperature of 5700 kelvin, which works more effectively than cooler shades even in adverse conditions such as snow and rain. It also features a white and amber parking light, which can be activated to activate the "Hello" function if desired, allowing the light to flash a few times in style to greet other motorists. Because of its size and power, the Siberia XP DRC 50" is at its best in larger installations such as trucks, larger machinery and as part of other heavy equipment lighting.

The Siberia XP DRC range is designed to withstand heavy use and stress, thanks to its weather-resistant aluminium body and high-strength polycarbonate lens. With an IP68/IP69K rating, the panels are fully dust and water resistant, and a wide operating temperature range (-35°C to +65°C) allows year-round use. In addition, the lights in the series are radio interference immunity according to ECE R10 standard and can be installed in both 12V and 24V systems. Three-year (36 months) warranty!

Note! Although the panel has two different power modes, neither of them is approved for road use!

The Strands Siberia XP DRC series consists of four auxiliary light panels of different sizes and wattages. Other models can be found below:

• Strands Siberia XP DRC 22"
• Strands Siberia XP DRC 32"
• Strands Siberia XP DRC 42"
• Strands Siberia XP DRC 50"

Basic delivery content

• Strands Siberia XP DRC 50"
• Power cord without connector
• Width adjustable footrests
• Connection and installation instructions (EN)

Delivery contents (Light + wiring harness)

• Basic delivery content
• Purelux HD relay wiring harness, 500W
  • Note! Due to the high power, there are no connectors on the light or the harness, so you have to make the connection yourself.

Technical data

• Make and model: Strands Siberia XP DRC 50"
• Purpose: As an auxiliary light for vehicles/machinery.
• Operating voltage: 10-32V
• Reference number.
• Power consumption as stated by the manufacturer:
  • Road use: 6.25A @ 12V / 3.12A @ 24V
  • Xperience mode: 33.6A @ 12V / 16.8A @ 24V
• Power as declared by the manufacturer:
  • Road mode: 75 W
  • Xperience mode: 404 W
  • White parking light: 18.3 W
  • Yellow parking light: 18.2 W
• Manufacturer's declared luminous intensity: 3425 lm (Road mode) / 28 100 lm (Xperience mode)

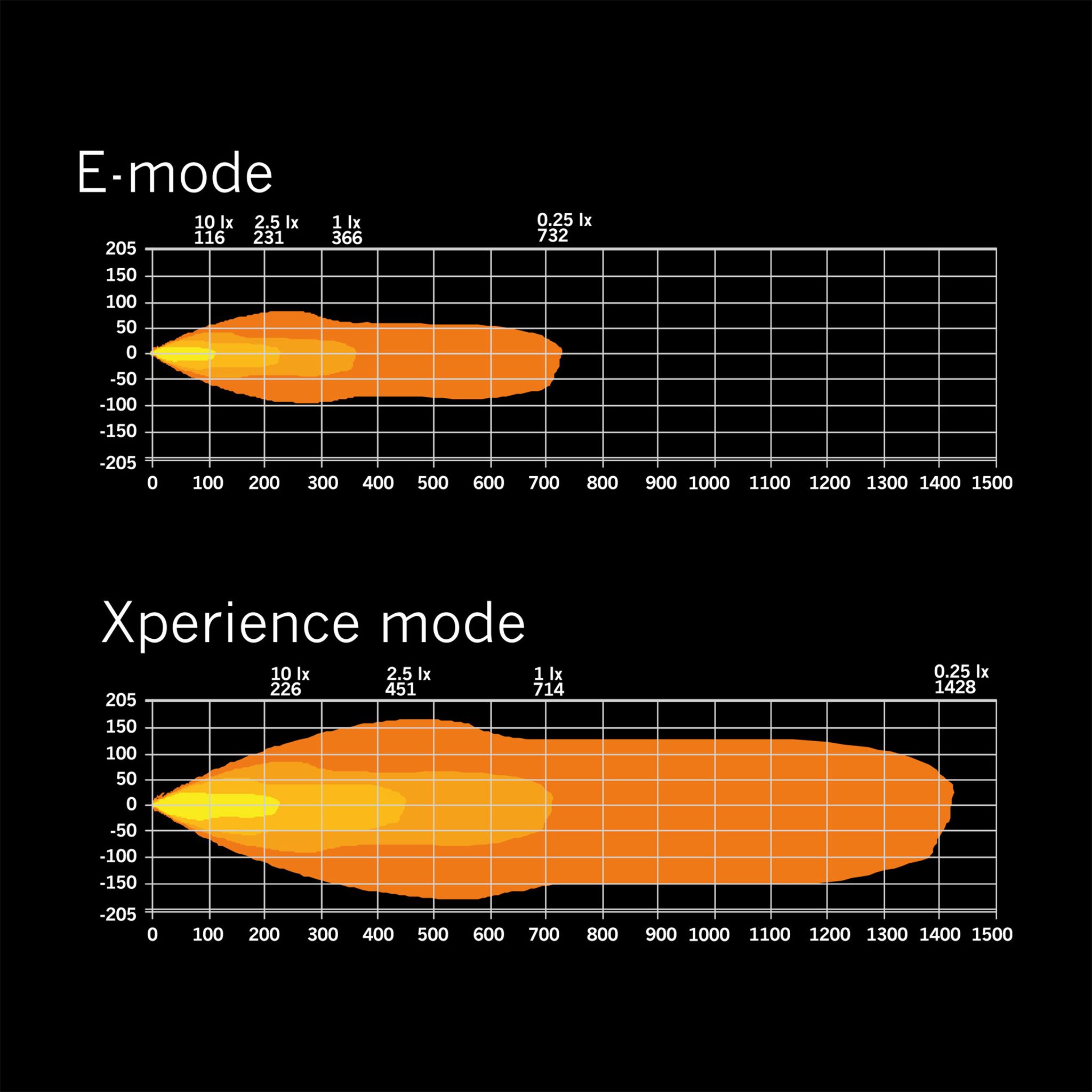

• Range declared by the manufacturer:
  • Road mode: 366 m @ 1 lux / 732 m @ 0.25 lux
  • Xperience mode: 714 m @ 1 lux / 1428 m @ 0.25 lux
• Manufacturer's declared colour temperature: 5700 K
• Mounting: width adjustable feet
• Connector: No connector, direct wires
• Cable length: 2500 mm
• Operating temperature: -35°C to +65°C
• Dimensions: 1281 x 76 x 138 mm (Width x Height x Depth)
  • Height with feet: 96.6 mm
• IP rating: IP68/IP69K
• Approvals: EMC: ECE R10
• Warranty: 36 months

Quick guide

You can find the manufacturer's installation instructions (EN) here: Strands Siberia XP DRC (opens in a new window).
