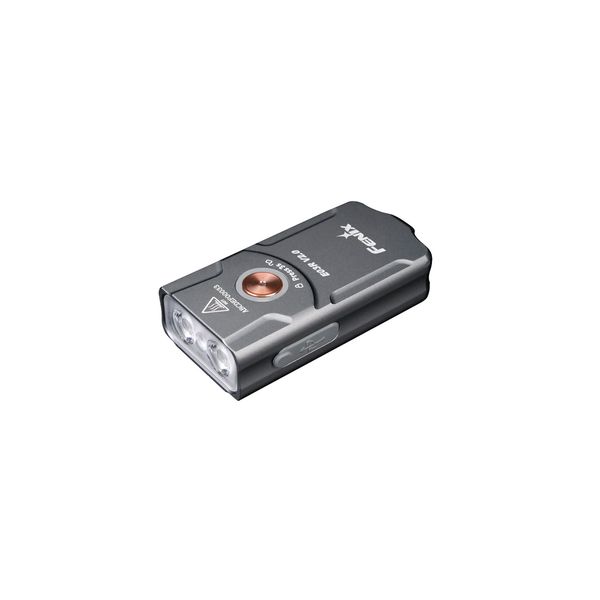

Keychain lamp Fenix E03R V2 - 500 lm / 53 mm / Rechargeable

Fenix E03R V2 is an updated version of its manufacturer's popular key chain light. The E03R V2 offers a higher light output of 500 lumens and an even twice as long range of 90 meters compared to its predecessor, in addition to which its twice as large battery capacity enables significantly longer operating times in all power modes than before. The lamp has four power modes for white light, two power modes for red light and a completely new and innovative pulse light function, where green and red light rhythm each other. This feature is excellent, for example, when jogging, as it will certainly attract the attention of other outdoor enthusiasts and motorists!

The E03R V2 is made of durable aluminum and is protected against dust and water according to the IP66 classification, so it can be used in all year-round conditions. The lamp has a built-in battery, which can be charged in a modern way via the USB-C port on the side of the lamp with the included charging cable. All functions of the lamp can be operated via a large push-button switch, so it can be used even in cold winter weather with gloves on. Two-year (24 months) warranty!

Delivery content

• Fenix E03R V2
• USB-C charging cable
• A key ring
• Instructions

Technical information

• Product: Fenix E03R V2
• Battery: Built-in 400 mAh li-po
• Light output stated by the manufacturer: 500 lm
• Range stated by the manufacturer: 90 m
• Operating modes: 5 + 2 power modes + flashing
• Charging: USB-C
• Dimensions: 52.5 x 26 x 13 mm
• Weight: 30 g
• Impact resistance:
• IP rating: IP66
• Warranty: 24 months

Operating hours (provided by the manufacturer)

White light

• High: 500 lm / 1 h 20 min / 90 m *
• Mid: 150 lm / 2 h / 50 m
• Low: 30 lm / 6 h 35 min / 20 m
• Eco: 5 lm / 30 h / 9 m

Red light

• Constantly burning: 5 lm / - / -
• Flasher: 5 lm / - / -

* Turbo power mode operating time is continuous operating time with light output from 100 to 10%. Performance values according to the ANSI/PLATO FL1 flashlight standard.

Quick guide

White light

• On/Off: Hold down the power switch for about 0.5 seconds to turn the light on or off.
• Changing the power mode: When the light is on, tap the power switch, and the power modes will rotate in the following order with each press: Eco -> Low -> Mid -> High. The lamp remembers the power mode that was last used and lights up with the same power mode that was last used.

Red light

• On/Off: Hold down the power switch for about 1.5 seconds to turn the light on or off.
• Power mode switching: When the red light is on, click the power switch to switch between steady on and flashing.

Pulse light

• On/Off: When the light is off, double-click the power switch to turn on the pulse light. Turn off by pressing the switch to the bottom for approx. 0.5 seconds.
• Switching operation mode: Tap the power switch to switch between Red -> Green -> Red and Green.

Key lock: With the lamp off, hold down the power switch for approx. 3 seconds, then the Eco power mode will flash twice to indicate the key lock. Open in the same way, leaving the light on in Eco mode.
