Headlamp Armytek Elf C2 Max - 4500 lm / Rechargeable

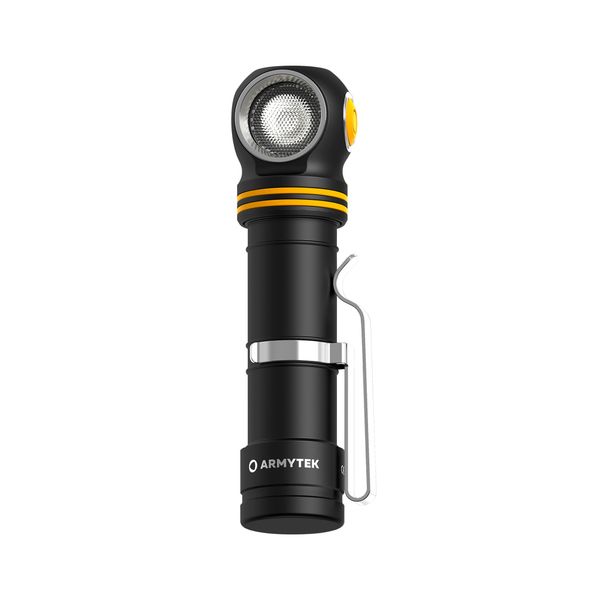

Armytek Elf C2 Max is the flagship model of the manufacturer's popular Elf headlamp series, which produces up to 4500 lumens of instantaneous maximum light output and a wide 150° combined beam with a range of up to 150 meters. In addition to a traditional headlamp, this lamp can be used as a helmet light, flashlight, hiking light or even a bicycle front light - with various mounts, one light can be used as an assistant in all adventures! Thanks to the magnetic tail cap, the light can also be attached to any metal surface, freeing up both hands for work, for example. All light power modes can be operated via one large switch, so it is easy to use even with gloves on. Designed for harsh use, the lamp can withstand both a drop from 10 meters and immersion to a depth of 10 meters (for 5 hours), so it is at home in challenging conditions.

The lamp comes with a high-performance 21700 battery, but with a separate adapter (included), it can also be used with 18650 batteries. If the battery runs out during use, the lamp can also be powered by a backup power supply via the USB-C charging port integrated into the body. Even if the lamp's battery runs out, it won't happen unexpectedly: the built-in smart battery charge indicator flashes the light twice as a sign when the battery charge drops below 25%. This gives the user plenty of time to plan their next steps before darkness falls. The lamp's compact size, multi-purpose combination light beam and shock-, water- and dust-resistant body make the Elf C2 Max the perfect lamp for both professional use and demanding enthusiasts. Ten-year (120-month) warranty!

Delivery content

• Armytek Elf C2 Max headlamp
• Headband
• 21700 Li-Ion battery (5000 mAh)
• USB-C charging cable
• Adapter for 18650 battery
• Pocket clip
• Belt holster
• Replacement sealing rings (2 pcs.)
• Instructions

Specifications

• Make and model: Armytek Elf C2 Max
• Power supply: 5000 mAh 21700 Li-Ion battery (incl.) OR 1 x 18650 battery (not incl.)
• Manufacturer's declared luminous efficacy: 4500 lm
• Manufacturer's stated range: 150 m
• Beam: Wide combination
• Operating modes: 5 power modes + 2 flashes
• Charging: USB-C
• Charging time: approx. 2 h 35 min
• Dimensions: 121.8 x 34.4 x 23.6 mm
• Weight with battery: 153 g
• IP rating: IP68

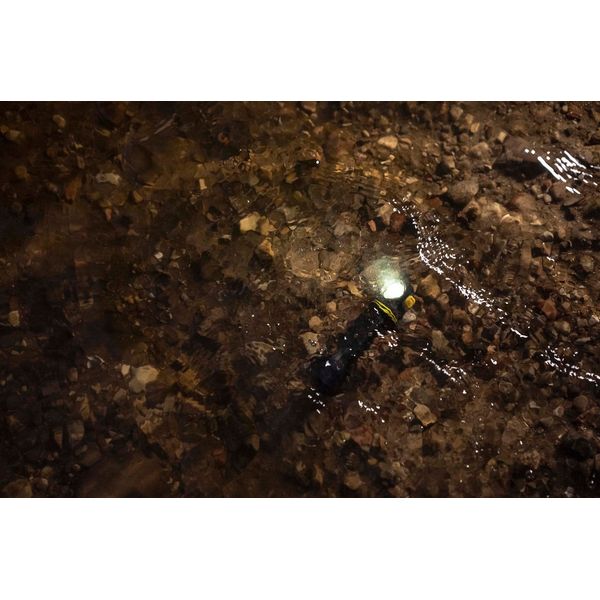

  • Withstands immersion to 10 meters (for 5 hours)
• Shock resistance: 10 m drop
• Warranty: 120 months

Operating times (as stated by the manufacturer)

• Turbo: 4500 lm -> 1275 lm / 1 min -> 2 h 35 min
• Main 3: 840 lm / 3 h
• Main 2: 330 lm / 8 h
• Main 1: 110 lm / 27 h
• Firefly: 1 lm / 30 days
• Strobe: 4500 lm -> 1275 lm / 1 min -> 12 h 30 min
• Lighthouse: 330 lm / 40 h

Quick Guide

To use: Unscrew the rear cap and insert the battery with the positive terminal first. Screw the rear cap tightly closed.

On/Off: Press the power switch once to turn the light on or off.

Changing the power mode: When the light is on, press the power switch all the way down to cycle through the power modes automatically. Release the switch at the desired power mode.

Turbo: When the light is off or on, double-click the switch to activate maximum light output.

Firefly: The lamp has a so-called "Firefly" mode with a light output of 1 lumen, which can be used as an emergency light whenever needed. The mode can be activated by pressing the power switch and holding it down for a short while when the lamp is not on.

Flashes: With the light on, click the power switch at least four times to activate the strobe flash. To switch between strobe and beacon flashes, press and hold the switch and release at the desired flash.

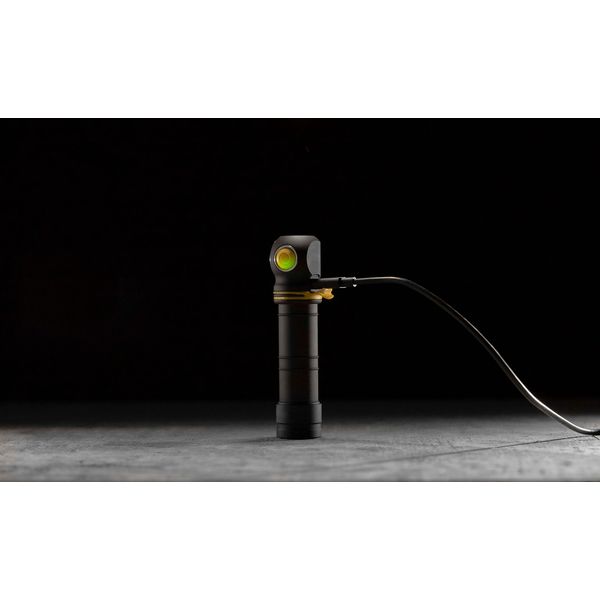

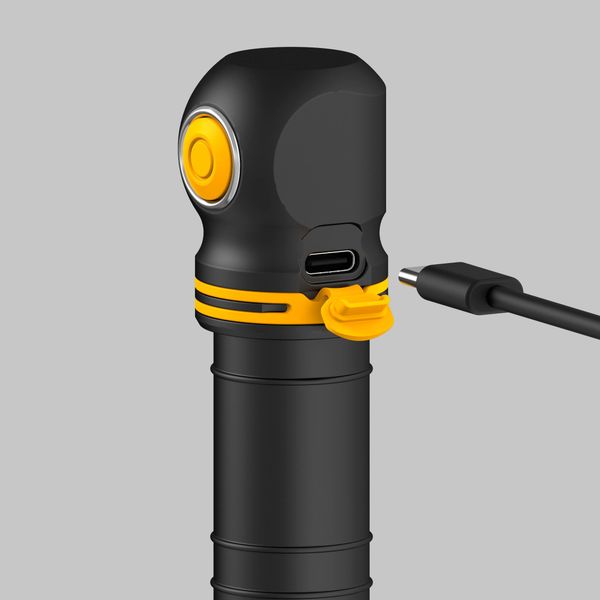

Charging: Connect one end of the USB-C charging cable supplied with the lamp to the USB-C port on the lamp body and the other end to a USB port on your computer or a power outlet using a power adapter. When charging is in progress, the lamp lens will glow red, and when charging is complete, the glow will turn green.

WARNING! The light output of the lamp is very high. Although the lamp has a temperature protection that reduces the light output if the lamp becomes too hot, the light energy itself can heat nearby material to very high temperatures. Therefore, it is important to follow the following safety instructions:

1. Do not leave the lamp switched on with an obstacle less than 5 cm in front of the lens!
2. Unscrew the rear cap half a turn to prevent accidental switching on, e.g. in a pocket.
3. A powerful lamp is not a toy - do not let a child use the lamp without supervision!
