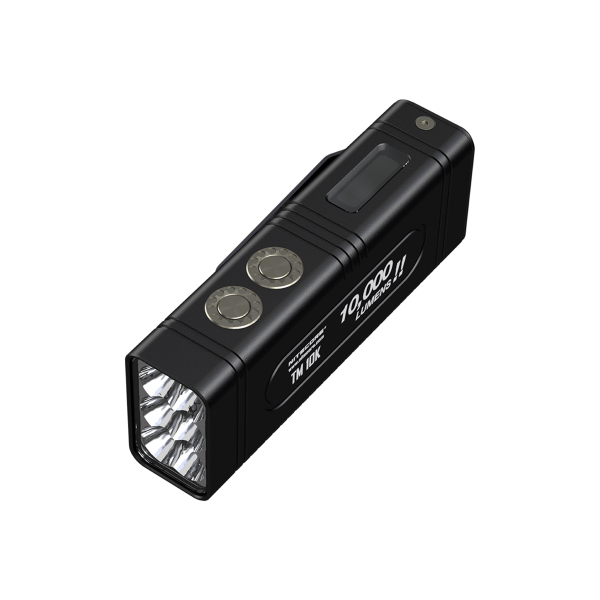

Flashlight Nitecore TM10K, 10000 lm

The Nitecore TM10K is an incredibly efficient flashlight that competes in a class of its own, at least when it comes to the size/power ratio. The lamp's incredible performance comes from six CREE XHP35 LEDs, which together provide a maximum light flow of a whopping 10,000 lumens. It is anything but obvious for a lamp in this size class. The incredibly small but powerful TM10K is so compact that it is roughly equivalent in size to an old-fashioned mobile phone. The lamp is easy to hold in the hand and also fits in the pocket without any problems. A steel belt clip is included, which allows you to easily attach the lamp to your belt or to the edge of your pocket. In addition, a wrist strap is included that prevents the lamp from slipping out of its grip. The IP68 rating guarantees that the lamp can withstand harsh conditions, and there is no danger if it gets wet. All in all, the TM10K is a safe choice for home and leisure use as well as for demanding professional and research work.

The lamp body has been equipped with a smart OLED screen, which i.a. shows the current power mode, remaining burning time, battery voltage and lamp temperature. The lamp is used with two separate switches, a power switch and a power mode switch. The power switch is used to turn the lamp on and off, and if desired, it can be set to activate the lowest power mode. The power mode switch adjusts the lamp's power modes, and can also be used to directly activate the 1000 lm mode. There is also a switch at the bottom of the lamp that momentarily activates the maximum setting of 10,000 lumens when the lamp is off. That way, you always have plenty of light at the touch of a button!

The lamp's power source is a 21700 Li-ion battery (4800 mAh), which provides up to 200 hours of burning time at the lowest power setting. The battery is easily charged with a modern USB-C cable, and charging from an empty to a full battery takes about 4 hours with a standard power adapter. In addition, the battery's charging circuit also supports fast charging, making it possible to fully charge it in just 1.5 hours (with an adapter that supports fast charging)! The lamp's OLED display shows the charging status.

Content

• Nitecore TM10K
• USB-C charging cable
• Holster
• Wrist strap
• Belt clip
• Manual

Technical specification

• Make and model: Nitecore TM10K
• Battery: Built-in 4800 mAh Li-ion battery
• LEDs: 6 x CREE XHP35
• Manufacturer's reported luminous flux: 10,000 lm
• Manufacturer's reported range: 288 m
• Manufacturer's reported light intensity: 20000 cd
• Power modes: 5
• Charging: USB-C
• Charging time: approx. 4 h
• Material: Hard-anodized aircraft aluminum, class HA III
• Length: 110 mm
• Weight: 246.5 g
• Protection class: IP68
• Warranty: 24 months

Burning time (manufacturer's information)

• Turbo: 10,000 lm / 288 m / - h
• High: 1000 lm / 90 m / 2 h
• Medium: 300 lm / 49 m / 7 h
• Low: 100 lm / 28 m / 14 h
• Ultralow: 3 lm / 5 m / 200 h

Quick guide

On off

Turn the lamp on and off by pressing the bottom switch once.

Change effect mode

When the lamp is on, press the upper switch to switch between the power modes in the following order: Ultralow - Low - Medium - High. The last used effect mode is saved in the lamp's "memory". The High and Ultralow modes can be activated directly without having to press the switch several times. The High mode is activated by holding down the upper switch when the lamp is off, and the Ultralow mode is activated in the same way by the lower switch.

Turbo mode

Turbo mode can be activated momentarily by holding down the bottom switch. It can be activated from any power mode and even when the lamp is off. The OLED display shows the remaining burn time of the Turbo mode, and when it runs out, the lamp returns to the last used mode. Turbo mode is therefore only intended for momentary use. Alternatively, Turbo mode can also be activated by holding down the lamp's upper switch while one of the "regular" power modes is selected.

Button lock

The lamp has two separate button locks - Half Lockout Mode (Lockout 1) and Full Lockout Mode (Lockout 2). Lockout 1 is activated by pressing and holding the lower switch while the light is on, until the text "Lockout 1" is visible. In this mode, the rear Turbo mode switch can still be used, but the other switches are disabled. If you continue to hold the switch until the text "Lockout 2" appears, all three switches will be disabled, and the light will not light. To open the button lock, press the bottom switch once, which turns on the screen, and immediately after that hold down the same switch until the text "Unlock" disappears from the screen.

You will also find a manual in English here . (Opens in a new window)
