Auxiliary light Purelux Panther 11 White - Rectangle / 24 cm / 170W / Ref. 20

PRODUCT DESCRIPTION - PACKAGE CONTENTS - TECHNICAL DATA

• PowerBoost® technology
• A beam optimized for heavy equipment
• Warning light approved for road traffic
• 10811 lumens, 751 meters (@ 1 lux)
• Optimal 5000K color temperature
• Stylish two-tone parking light
• Frameless Lexan polycarbonate lens

The Purelux Panther 11 White is a "round" auxiliary light from its manufacturer's Panther product family, designed specifically for the needs of heavy equipment. Like other lights in the same series, this light cannon is also equipped with top features that will convince even demanding users. Two different power modes, an R65-approved orange warning light, a stunning combination light beam specially designed for high installation locations and an excellent light output of 10811 lumens make the Panther 11 the perfect solution for roof and light rail installations on trucks and vans, as well as vans and SUVs. Thanks to the two different power modes, the same light can be used to its maximum advantage in all situations: the more moderate power mode is approved for road use with a low reference number (20), while the PowerBoost mode, which releases all the power and is intended for off-road use, harnesses the impressive light output and increases the beam range to up to 751 meters (@ 1 lux), saying goodbye to compromises. The white body fits perfectly into light-colored vehicles, creating a seamless connection between the vehicle and the additional light.

Note! The same lamp is also available with a black frame: Purelux Panther 11

"Notorious Panther performance"

Unlike usual, there is no need to connect or disconnect any extra cable to activate the different power modes of the light, but switching between PowerBoost® and road mode is done using a unique selector integrated into the user interface. This means that the power mode can be changed easily and quickly directly, even while driving.

Note! The difference between Purelux PowerBoost® and road mode is clearly noticeable in use - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The Panther 11's beam consists of a rectangular, wide main beam, which is a great combination of both range and width. The beam opens up right from the front and illuminates the entire road from side to side, while the brighter main spot in the middle of the beam directs the light far ahead. The beam is very similar in shape to other lights in the Panther series, but compared to the Panther 9, for example, the Panther 11 has a slightly tighter main spot, and its beam is also slightly higher vertically and a little wider in width. The higher beam in the vertical direction makes the Panther 11 an excellent option for higher installation locations, such as upper light bars on trucks and roof installations, while the Panther 9 is a better option for directly in front.

In addition to its excellent beam, the Panther 11 is also equipped with an R65-approved orange warning light, which can be used, for example, in special transport, when the vehicle is moving from the road to the construction site or for example in traffic control. The bright warning light will not go unnoticed by anyone, so the safety of those working on the vehicle is guaranteed without separate warning lights. The warning light can be installed, for example, behind a separate switch, so that it can be used whenever needed. The warning light has five different flashing functions, and in addition, several lights can be synchronized with each other, so that they can be flashed at the same time and the overall appearance of the vehicle remains consistent.

The Panther 11's beam is crowned by a neutral 5000 Kelvin color temperature that maximizes the driving experience and visibility. Neutral color temperature is optimal for road traffic, as it makes it easier to observe terrain and obstacles, and it does not impair resolution by distorting the colors of objects visible in front. In addition, neutral color temperature is less dazzling, for example from snow cover or in fog and rain, and reduces eye strain. The 5000K color temperature is also compatible with newer cars that have LED or Xenon lights as standard, and also brings the desired brightness and sharpness alongside traditional halogen lights.

The Panther 11 looks different from what you are used to, and its unique design, the orange or white parking light that runs spectacularly along the bottom edge of the lens, and the dark optics give it a unique overall look. The brazenly non-standard appearance combined with the 11" size and fierce performance make the Panther 11 an excellent addition to the equipment of heavy equipment and construction vehicles, as well as vans and SUVs. The exceptionally low reference number of the lamp (20) allows the installation of several lamps on the same vehicle without having to take your own high beams out of use, so the bravest can easily install this light cannon on passenger cars too!

"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!" - Purelux

The light comes with a mounting foot, and installation is made easier by the 2-pole DTP connector already installed in the light's power cable, as well as separate wires from the power cable for the parking lights, hazard warning light and hazard light synchronization. In addition, the Panther 11 also has a ready-made mounting hole for the top support bar, which enables a sturdy installation. The light comes with a stylish black stone chip guard with the Purelux logo, which reveals the parking light line, allowing the parking lights to be used even in summer, when the rest of the light is protected from flying stones and sand dust. The wide operating voltage range (9-36V) allows installation in both 12V and 24V systems. The light is radio interference-protected in accordance with the ECE R10 standard. Three-year (36-month) warranty!

Valostore's comment: "Panther 11 White is a standard-breaking addition to its manufacturer's Panther product family. This light is designed purely for the needs of larger vehicles, in terms of its functions, appearance, light output and beam. The design of the light has taken into account the wishes of motoring professionals for a light whose beam would be optimized for roof installations and whose functions would enable the same light to be used for several different purposes without unnecessary gimmicks. Just like its little brother Panther 9, the versatile features in this model do not compete with each other, but complement them. In addition, two different color options give everyone the opportunity to create a light package that also looks good on their vehicle."

Basic delivery content (1 pc)

• Purelux Panther 11 White
• Mounting foot
• Power cord with DTP-2 connector
• Stone chip protection, black
• Connection and installation instructions (FI/SE/NO/DK)

Delivery content (2 pcs - Complete set)

• 2 x Basic delivery contents
• Auxiliary light holder for EU license plate
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 2-output)
• Support bracket, 2 pcs

Delivery content (3 pcs - Complete set)

• 3 x Basic delivery content
• Auxiliary light holder for EU license plate Purelux HD, for 3 lights
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 3-output)
• Support bracket, 4 pcs

Delivery content (4 pcs + Wiring harness)

• 4 x Basic delivery contents
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 4 outputs)
• Support bracket, 4 pcs

Delivery content (6 pcs + Wiring harness)

• 4 x Basic delivery contents
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc 2-output, 1 pc 4-output)
• Support bracket, 6 pcs

Specifications

• Brand and model: Purelux Panther 11 White
• Intended use: As an additional light in cars / work machines
• Operating voltage: 9-36 V (DC)
• Reference number: 20
• Rated power: 170 W
• Power consumption measured by the light bulb
  • Purelux PowerBoost®: 6.92A @ 24V
  • Road mode: 0.99A @ 24V
  • Warning light: 1.45A @ 24V
• Power measured by the light bulb
  • Purelux PowerBoost®: 166W
  • Road mode: 23.7 W
  • Warning light: 35 W
  • Parking lights: 2 W
• Luminous efficacy measured by Valostore: 10811 lm (Purelux PowerBoost®) / 2205 lm (Road mode)
• Range measured by the light tower: 751 m @ 1 lux / 1502 m @ 0.25 lux (Purelux PowerBoost®)
• Range measured by the beacon: 340 m @ 1 lux / 680 m @ 0.25 lux (Road mode)
• Range with multiple lights, measured (PowerBoost® / E-approved, @ 1 lux):
  • With two: 1062 m / 395 m (@ 1 lux)
  • With three: 1301 m / 483 m (@ 1 lux)
  • With four: 1502 m / 558 m (@ 1 lux)
• Manufacturer's stated color temperature: 5000 K
  • Measured by Valostore: 5010 K
• Mounting: Mounting foot
• Connector: DTP-2
  • Parking lights and hazard warning lights + separate wires
• Cable length: approx. 100 cm

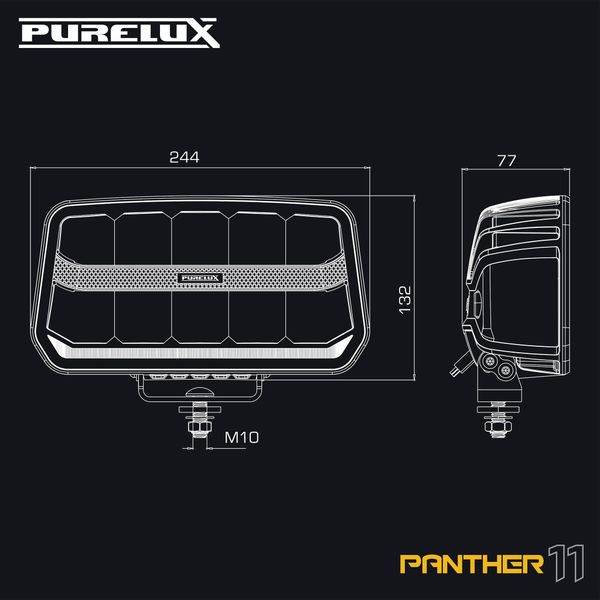

• Dimensions: 244 x 132 x 77 mm (Width x Height x Depth)
  • Height with mounting foot:
• Weight: 1624g
• IP rating: IP69K
• Approvals: ECE R10, R149, R65, CE, RoHS
  • Road traffic approval does not apply to Purelux PowerBoost® mode
• Change: There is a ready place for the support rail in the light
• Warranty: 36 months
• Importer: Handshake.fi

Installation guide

Coupling

• DTP connector: Additional light
• Yellow: Orange parking light
• White: White parking light
• Green: Warning light (R65)
• Gray: Hazard light synchronization / hazard light mode switching

Changing the power mode with UI technology: The light will turn on in PowerBoost mode when first used. To change the power mode, turn the light off, then turn it on for two seconds, and turn the light off and on twice within 1.5 seconds to change the power mode. Repeat to change the power mode again.

Note! An instructional video on how to change the power mode can be found at the bottom of this page!

Synchronization and warning light functions:

• Warning light: Connect the green wire to power (+)
• Synchronization: Synchronize multiple warning lights by connecting the gray wires together
• Warning light pattern: Connect the gray wire to power (+) for less than 1 second, the pattern will change
• Reset: Connect the gray wire to power (+) for at least 3 seconds to return directly to the first warning light pattern

You can find the manufacturer's connection and installation instructions by clicking here.
