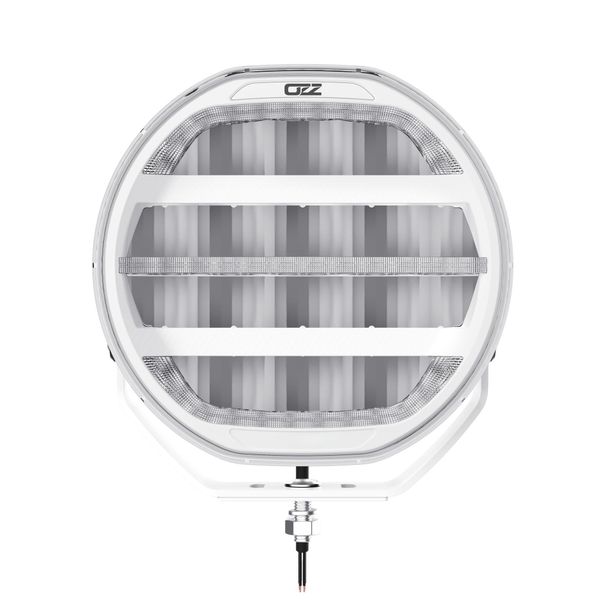

Auxiliary light OZZ XR3 P9″ Arctic Edition - Round / 22 cm / 160W / Ref. 50

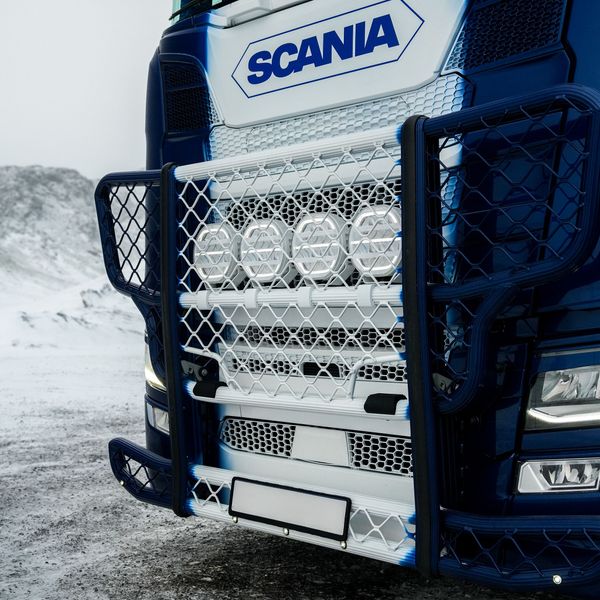

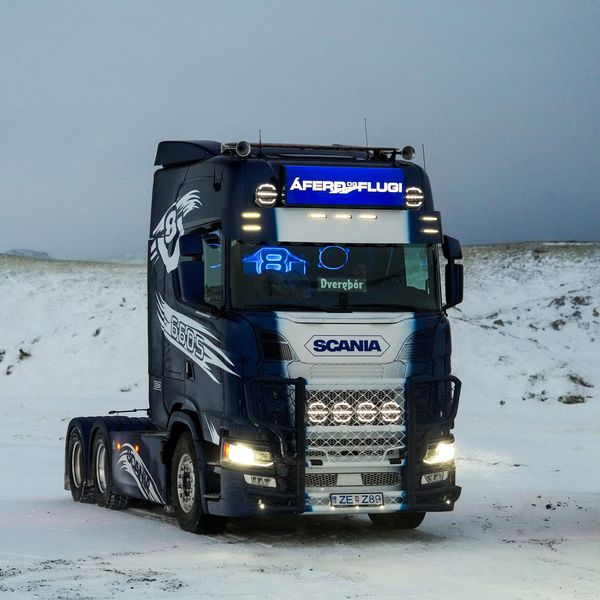

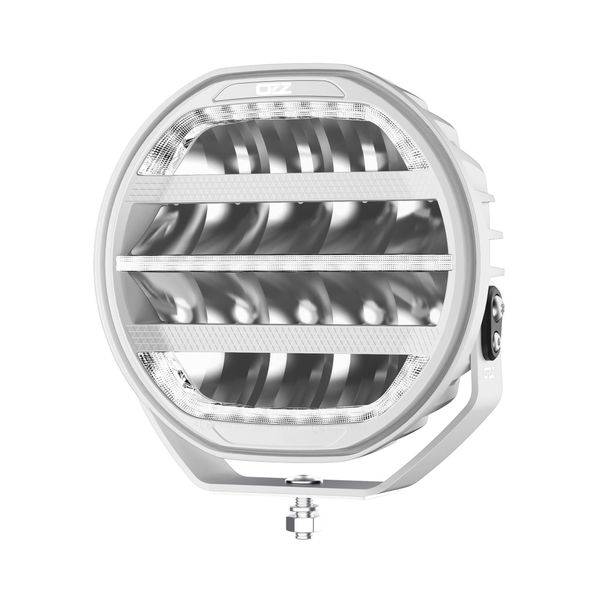

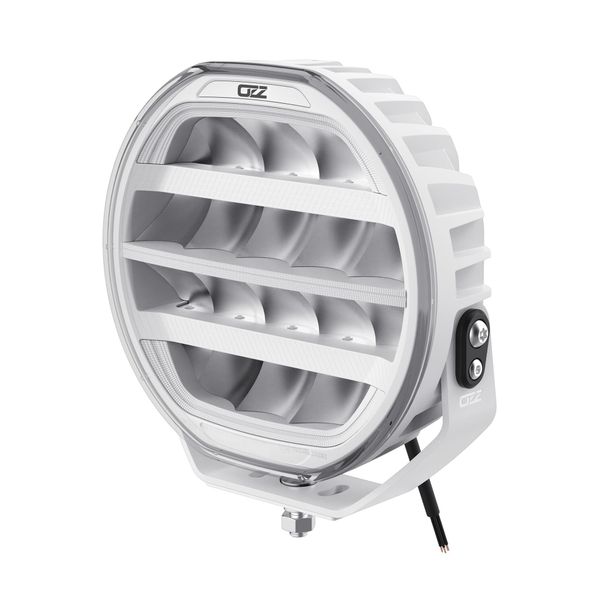

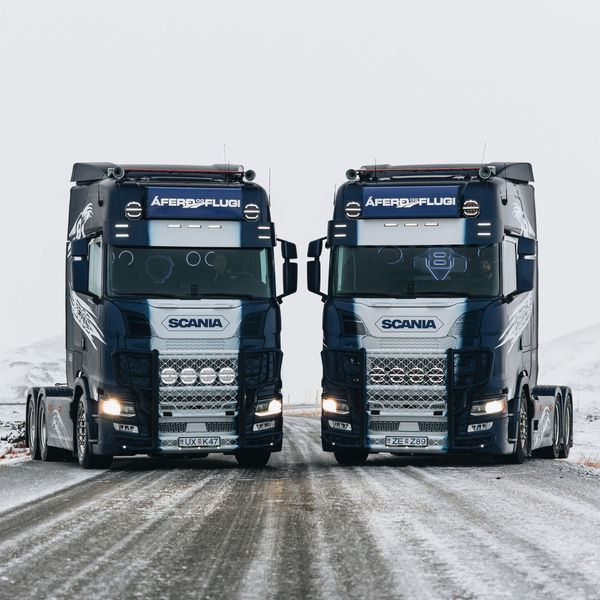

OZZ XR3 P9″ Arctic Edition is designed to suit white and light-colored vehicles in particular, offering a striking visual upgrade as well as a powerful improvement in visibility. The nearly all-white finish sets the driving light apart from other models with black details, and thanks to its modern round shape, the light fits naturally on a wide range of vehicles, from passenger cars and vans to heavier equipment. In terms of light output, the driving light provides a clear improvement for driving in the dark: in Boost mode, the light produces up to 10,600 lumens and reaches 1 lux at a distance of 680 metres, providing plenty of light for longer straights, unlit roads and more challenging driving conditions. The long-reaching and wide beam pattern improves visibility, helping the road and its surroundings stand out more clearly while driving.

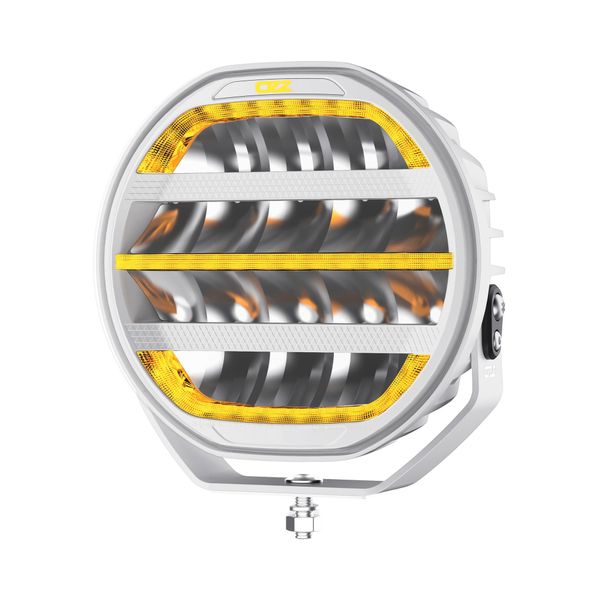

One of the most eye-catching features of the OZZ XR3 P9″ Arctic Edition is the dynamic position light, which starts up with an impressive lighting sequence when the vehicle is started. The position light colour can be set to either white or amber, making it easy to match the appearance of the light to the vehicle’s style and intended use. The 5000 Kelvin colour temperature of the main beam is neutral white and comfortable for the eyes, helping to maintain good driving comfort even on longer journeys. Three-year (36 months) warranty!

Discover also the OZZ XR3 P9″ models equipped with an R65-approved warning light:

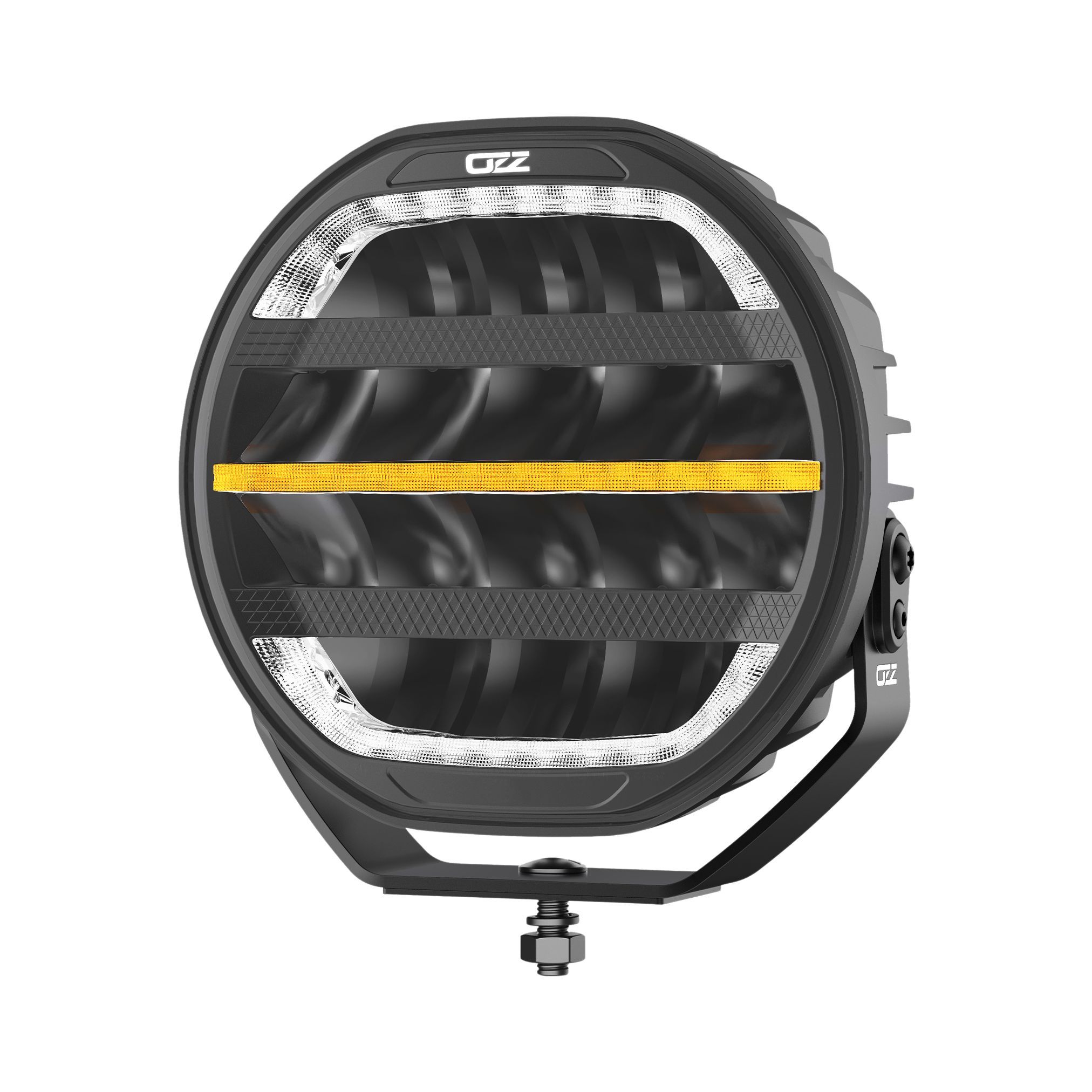

XR3 P9″ 65 Black

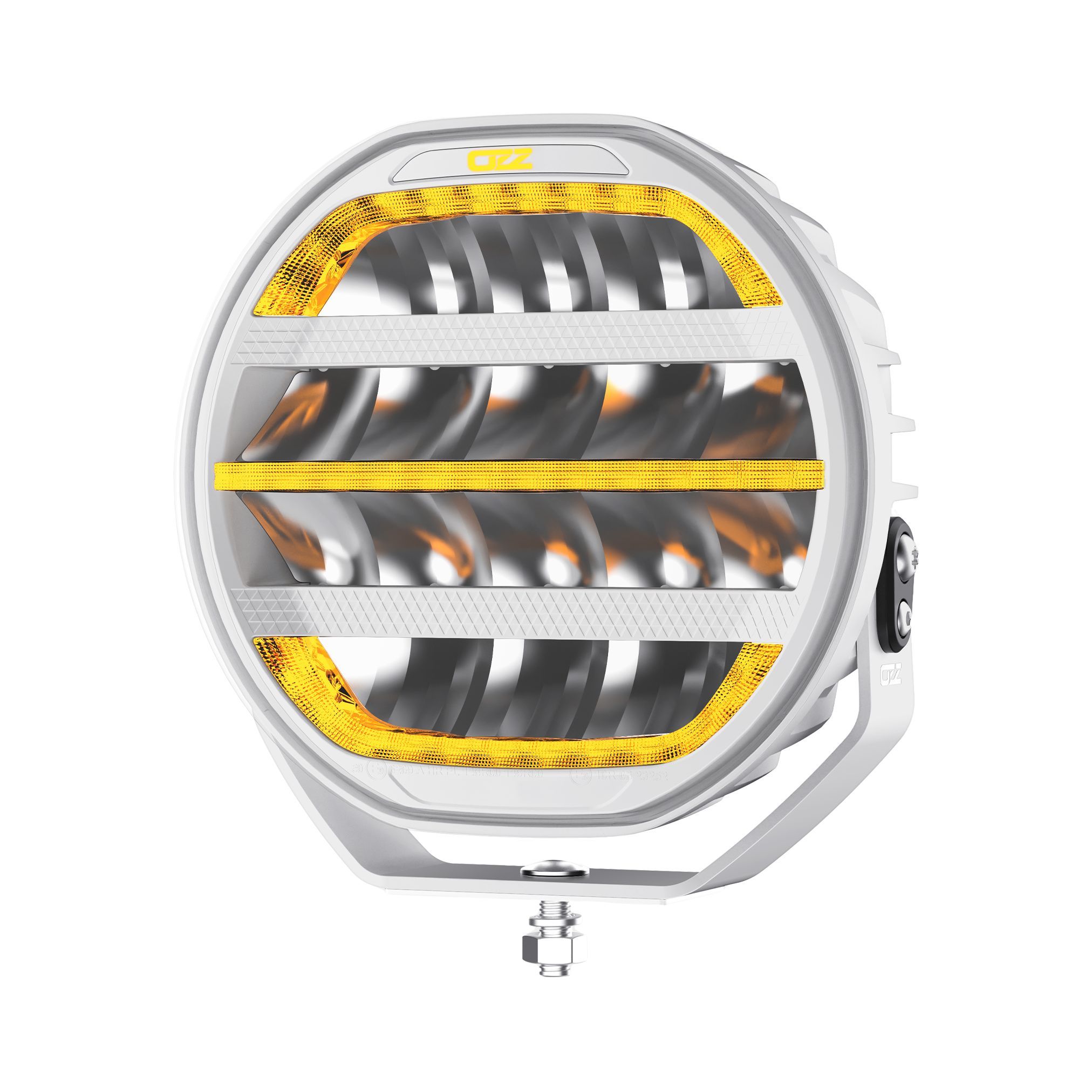

XR3 P9″ 65 White

Basic delivery contents

• OZZ XR2 P9″ White
• Power cable with DT-4 connector, 1000 mm
• Mounting foot

Delivery contents (2 pieces - Complete set)

• 2 x Basic delivery contents
• Additional light holder for EU plate, Purelux
• Relay cable set Purelux Pro Serie 12V, DT-4 (2 outputs)
• Support bracket, 2 pcs.

Technical information

• Brand and model: OZZ XR3 P9" Arctic Edition
• Intended use: As an auxiliary light in cars / work machines
• Operating voltage: 10–35V DC
• Reference number: 50
• Rated power: 160 W
• Power stated by the manufacturer:
  • R112: 74 W @ 12V / 73 W @ 24V
  • Boost: 134 W @ 12V / 130 W @ 24V
• Power consumption stated by the manufacturer:
  • R112: 6.14A @ 12V / 3.04A @ 24V
  • Boost: 11.17A @ 12V / 5.42A @ 24V
• Theoretical light output: 15000 lm
• Light output:
  • R112: 7010 lm
  • Boost: 10600 lm
• Range stated by the manufacturer:
  • R112: 480 m @ 1 lux
  • Boost: 680 m @ 1 lux
• Color temperature stated by the manufacturer: 5000 K

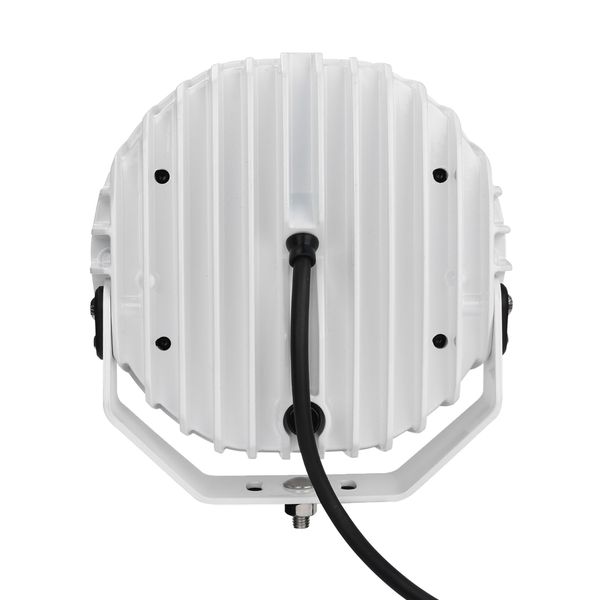

• Mounting: Mounting foot
• Connector: DT-4
• Cable length: 1000 mm
• Dimensions: 220 x 210 x 84.3 mm (Width x Height x Depth)
• Height with stand: 227 mm
• Protection class: IP68, IP69K
• Operating temperature: -40°C - +60°C
• Approvals: EMC: ECE R10, R148, R149
• Other: Dynamic white and amber position light, Boost mode
• Warranty: 36 months
