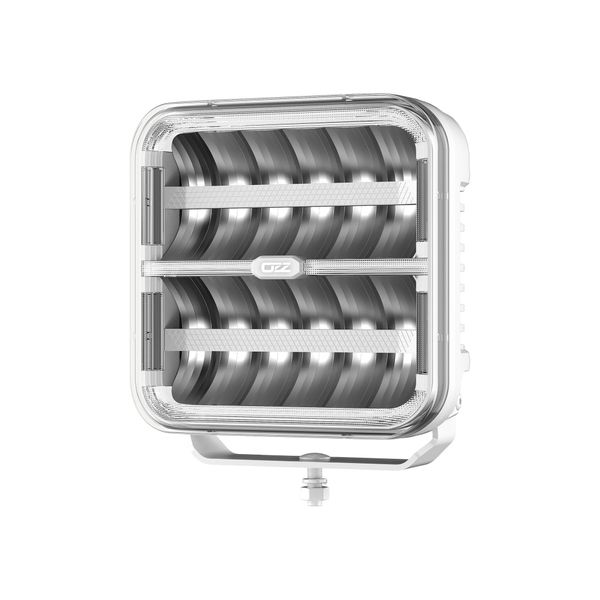

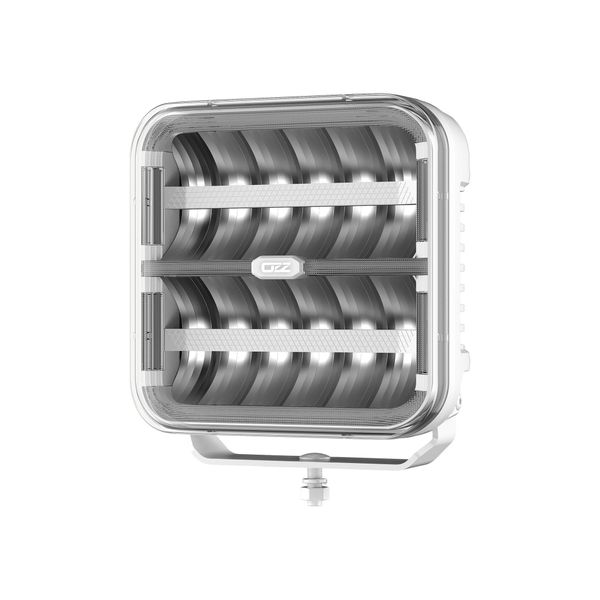

Auxiliary light OZZ SQR 9" White - Square / 21 cm / 160W / Ref. 50

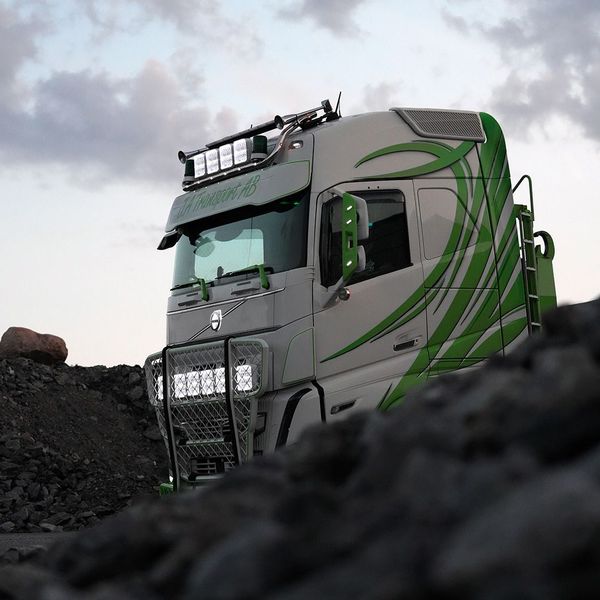

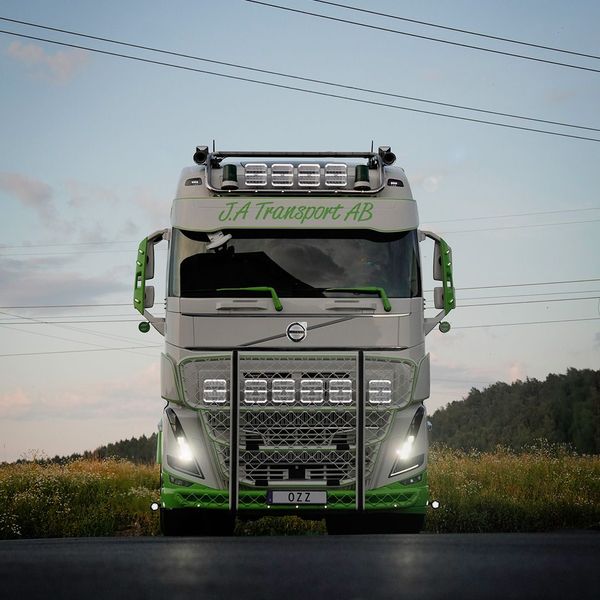

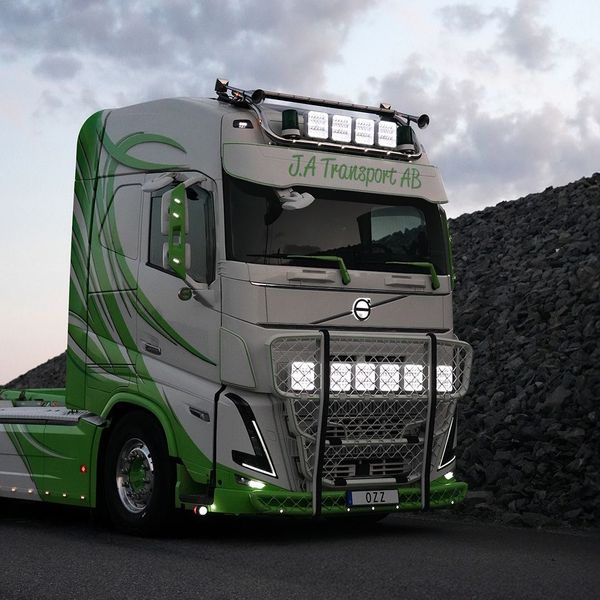

The OZZ SQR 9" White combines powerful auxiliary lighting, an integrated warning light, and a striking dynamic parking light in a modern square housing. The white housing and angular design fit naturally on a wide range of vehicles, from passenger cars to vans and heavier-duty vehicles. In Boost mode, the auxiliary light produces up to 12,000 lumens and has a range of up to 950 m @ 1 lux, ensuring reliable illumination on dark roads and in challenging driving conditions. The long-range light pattern significantly improves visibility both ahead and to the sides of the road, allowing for a clearer perception of the road and its surroundings.

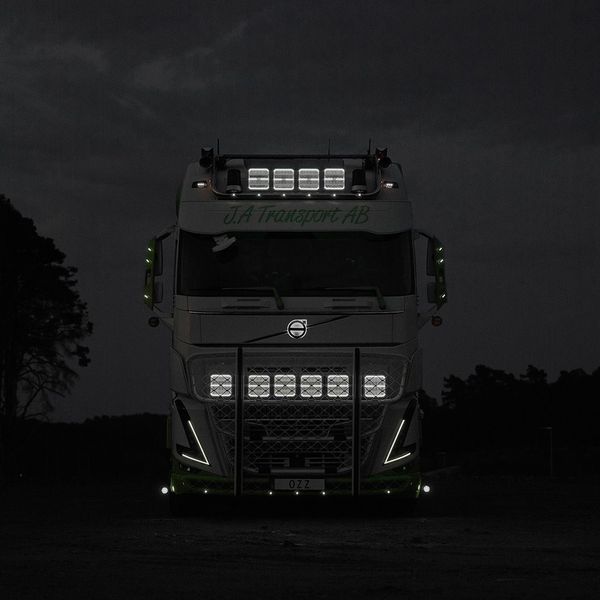

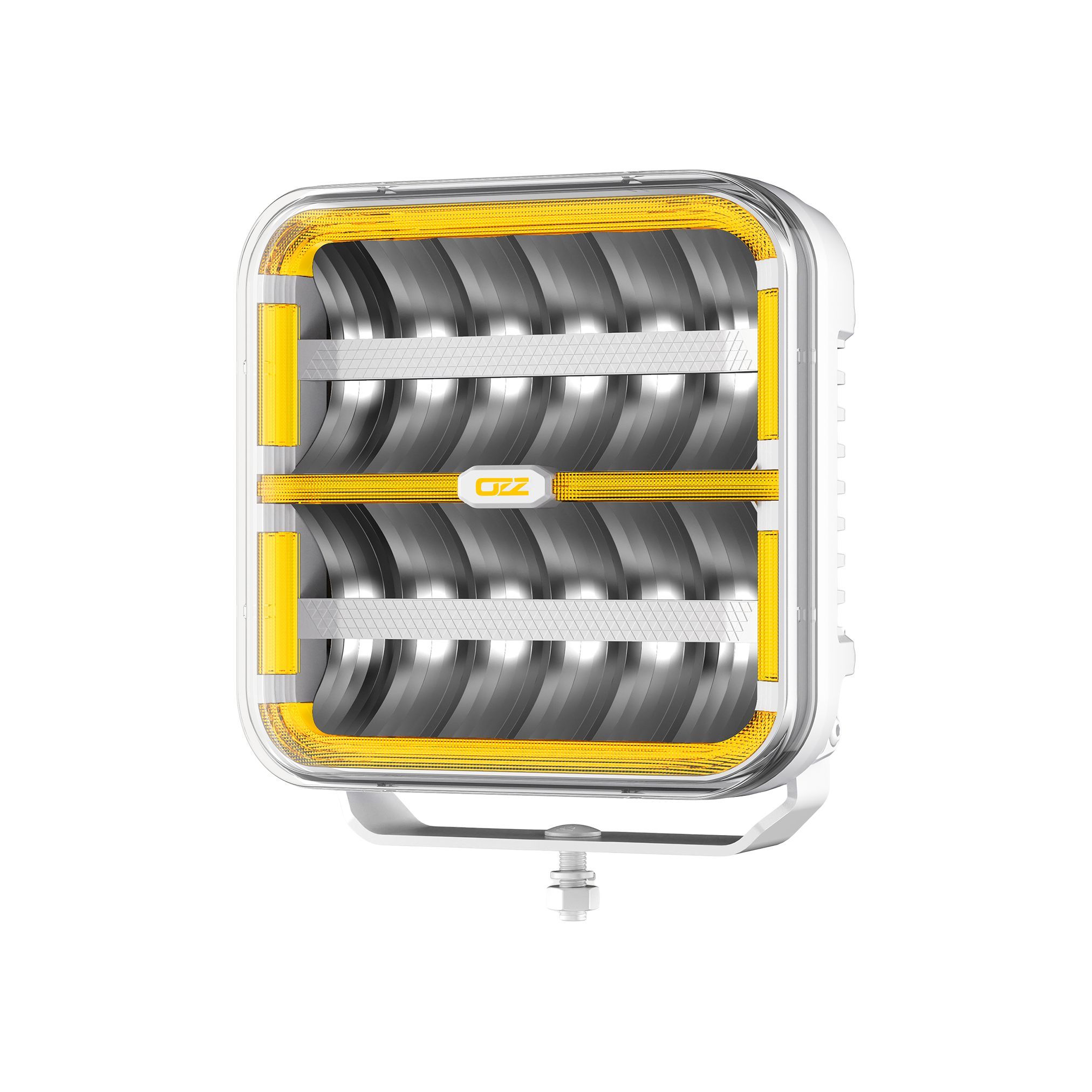

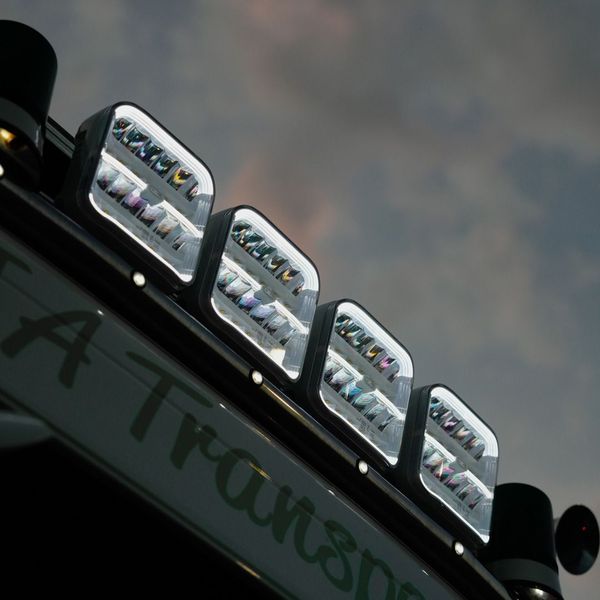

One of the most striking features of the OZZ SQR 9" White is its dynamic parking light, which activates dramatically when the vehicle is started. The parking light color can be set to either white or amber, making it easy to match the light’s appearance to the vehicle’s style and intended use. In addition, the light features an integrated orange warning light with two flashing patterns: single and double flashes. The main headlight’s 5000 Kelvin color temperature is neutral white and easy on the eyes, helping to maintain a comfortable driving experience even on longer trips. Three-year (36-month) warranty!

The OZZ SQR 9" is available in two different colors:

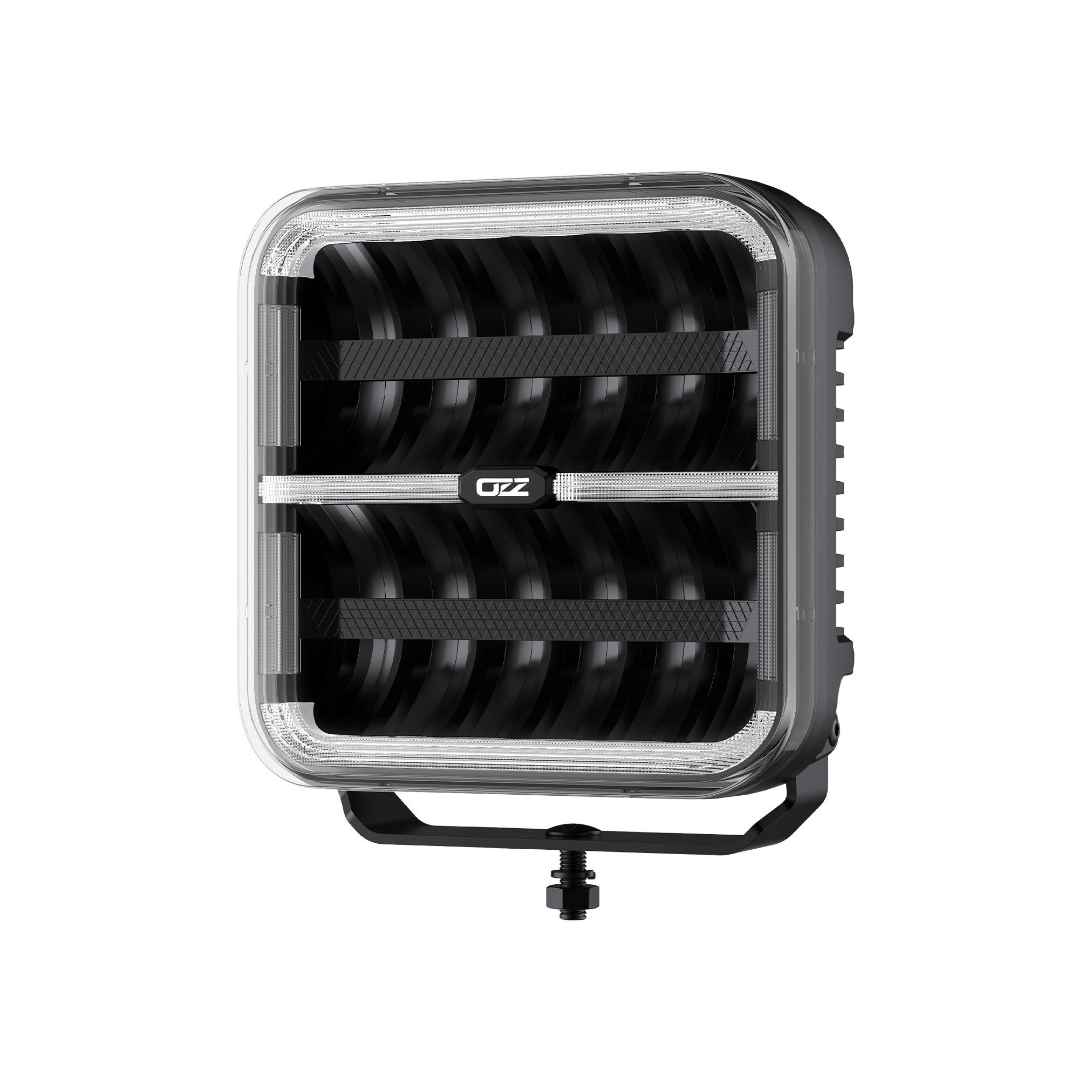

SQR 9" Black

SQR 9" White

Basic delivery contents

• OZZ SQR 9" White

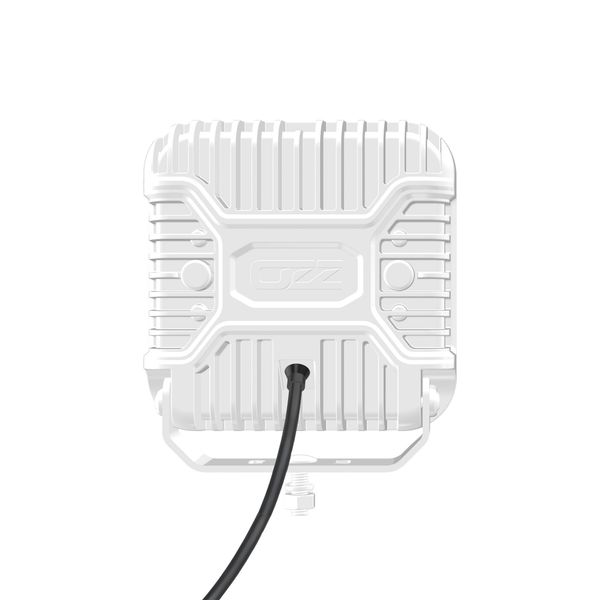

• Power cord with DTP connector, 1000 mm
• Mounting bracket

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Additional light holder for EU plate, Purelux
• Relay cable set Purelux Pro Serie 12V, DTP (1 x 2 outputs)
• Support bracket, 2 pcs.

Technical information

• Make and model: OZZ SQR 9" White
• Intended use: As auxiliary lighting for cars / work vehicles
• Operating voltage: 9–32 V DC
• Reference number: 50
• Power consumption:
  • R112: 5 A @ 12V / 2.5 A @ 24V
  • Boost: 13.5 A @ 12V / 7 A @ 24V
• Theoretical power: 240 W
• Manufacturer-specified power:
  • R112: 60 W @ 12V / 60 W @ 24V
  • Boost: 160 W @ 12V / 160 W @ 24V
• Theoretical light output: 21,000 lm
• Manufacturer-specified light output:
  • R112: 5,000 lm
  • Boost: 12,000 lm
• Manufacturer-specified beam distance:
  • R112: 480 m @ 1 lux
  • Boost: 950 m @ 1 lux
• Manufacturer-specified color temperature: 5000 K
• Light pattern: Driving
• Mounting: Mounting bracket, stainless steel
• Connector: DTP-2
• Cable length: 100 cm, 800 + 200 mm
• Dimensions: 210 x 210 x 95 mm
• Height with stand: 231 mm
• Other: Boost mode, dynamic white and orange parking light, warning light, double flash pattern
• IP rating: IP68, IP69K
• Approvals: E-approval, ECE R149, ECE R65, ECE R148, ECE R10
• Warranty: 36 months
