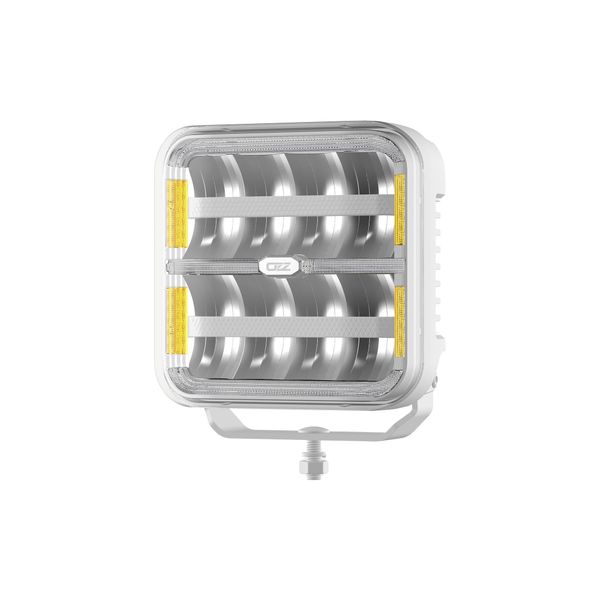

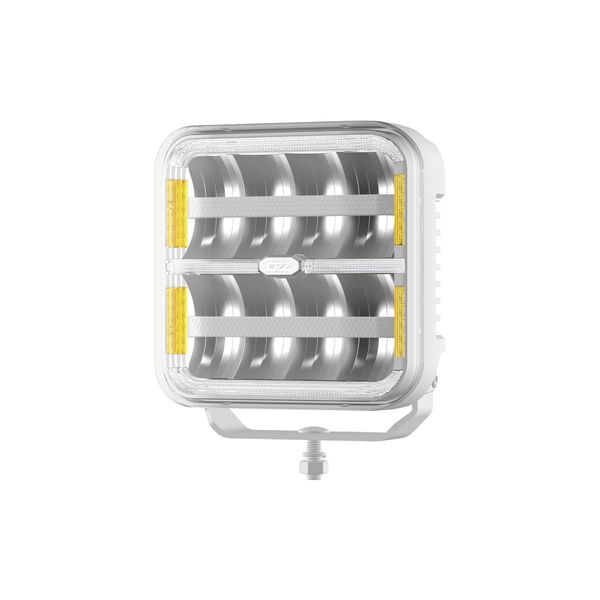

Auxiliary light OZZ SQR 7" White - Square / 18 cm / 160W / Ref. 50

OZZ SQR 7" White combines a capable auxiliary light, integrated warning light, and stylish dynamic position light in a modern square housing. The white housing and angular design suit a wide range of vehicles, from passenger cars to vans, while the compact 7-inch size allows for a clean and more discreet installation. In Boost mode, the auxiliary light produces up to 8,000 lumens and reaches up to 750 metres @ 1 lux, improving visibility on dark road sections and helping the driver see both the road and its edges more clearly.

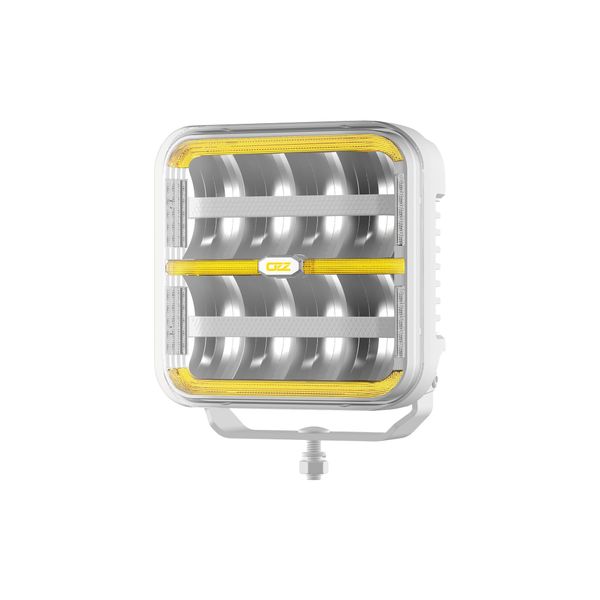

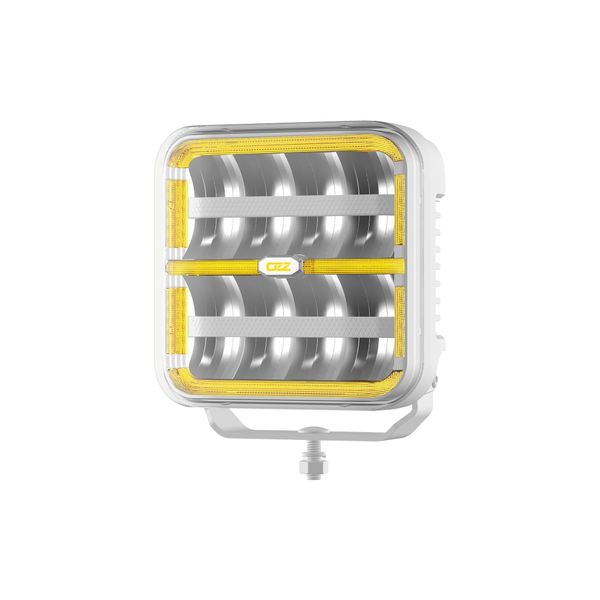

One of the most striking features of the OZZ SQR 7" White is its dynamic parking light, which activates dramatically when the vehicle is started. The parking light color can be set to either white or amber, making it easy to match the light’s appearance to the vehicle’s style and intended use. In addition, the light features an integrated orange warning light with two flashing patterns: single and double flashes. The main headlight’s 5000 Kelvin color temperature is neutral white and easy on the eyes, helping to maintain a comfortable driving experience even on longer trips. Three-year (36-month) warranty!

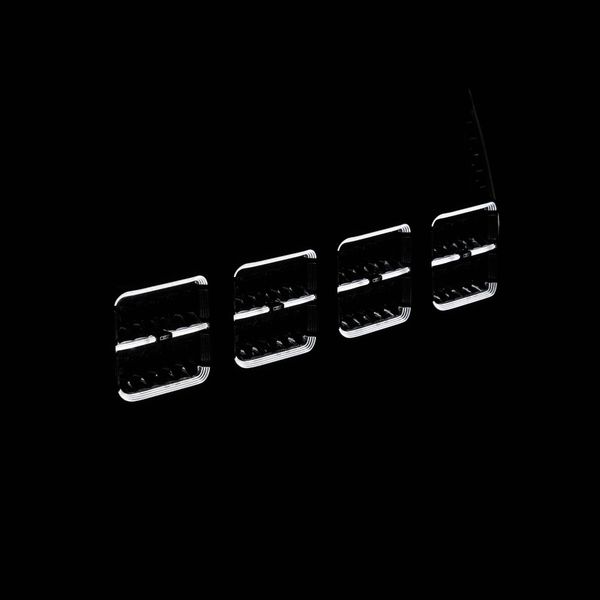

SQR 7" Black

SQR 7" White

Basic delivery contents

• OZZ SQR 7" White

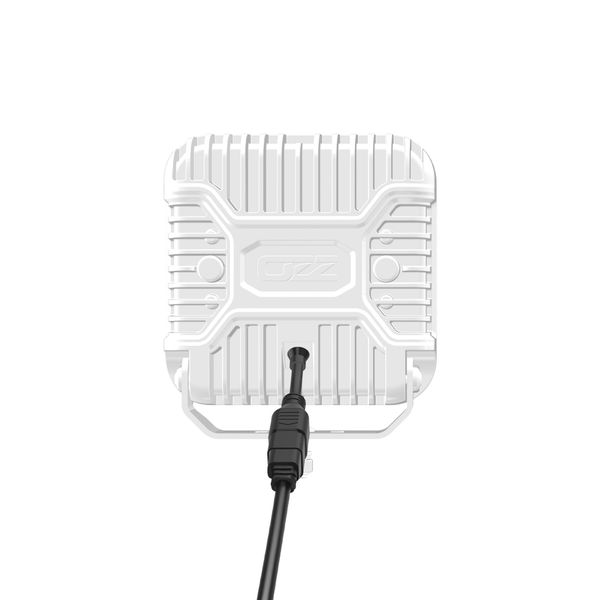

• Power cable with DT6 connector, 950 mm
• Mounting foot

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Additional light holder for EU plate, Purelux
• Relay cable set Purelux Pro Serie 12V, DTP (1 x 2 outputs)
• Support bracket, 2 pcs.

Technical information

• Brand and model: OZZ SQR 7" White
• Intended use: As an auxiliary light in cars / work machines
• Operating voltage: 9–32V DC
• Reference number: 50
• Rated power: 160 W
• Power stated by the manufacturer:
  • R112: 60 W
  • Boost: 110 W
• Power consumption stated by the manufacturer:
  • R112: 5A @ 12V / 2.5A @ 24V
  • Boost: 9.1A @ 12V / 4.6A @ 24V
• Theoretical light output: 14,000 lm
• Light output stated by the manufacturer:
  • R112: 5,000 lm
  • Boost: 8,000 lm
• Range stated by the manufacturer:
  • R112: 480 m @ 1 lux
  • Boost: 650 m @ 1 lux
• Range with multiple lights (Boost @ 1 lux):
  • With two: 919 m @ 1 lux
  • With three: 1126 m @ 1 lux
  • With four: 1300 m @ 1 lux
• Color temperature stated by the manufacturer: 5000 K
• Mounting: Mounting foot
• Connector: DT-6
• Cable length: 950 mm
• Dimensions: 178 x 178 x 85 mm (Width x Height x Depth)
• Height with stand: 198 mm
• Protection class: IP68, IP69K
• Approvals: EMC: ECE R10, ECE R148, ECE R149, ECE R65
• Other: Dynamic white and amber position light, integrated warning light, double flash pattern
• Warranty: 36 months
