Auxiliary light OZZ SQR 3" Black - Square / 10 cm / 60W / Ref. 25
Select option:
Product Faq

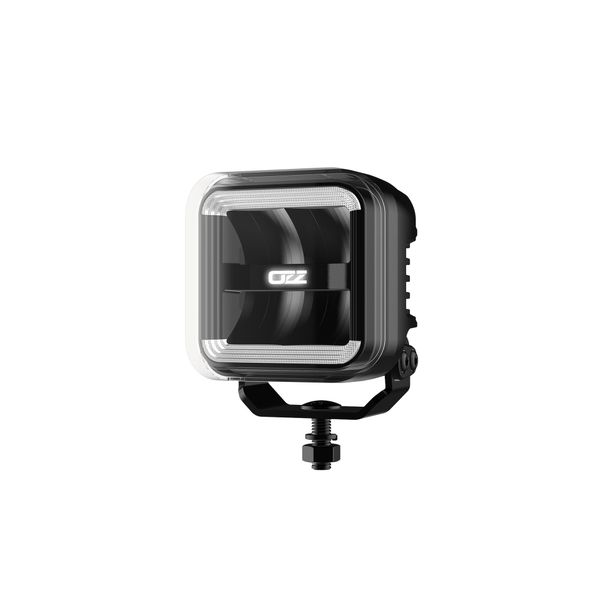

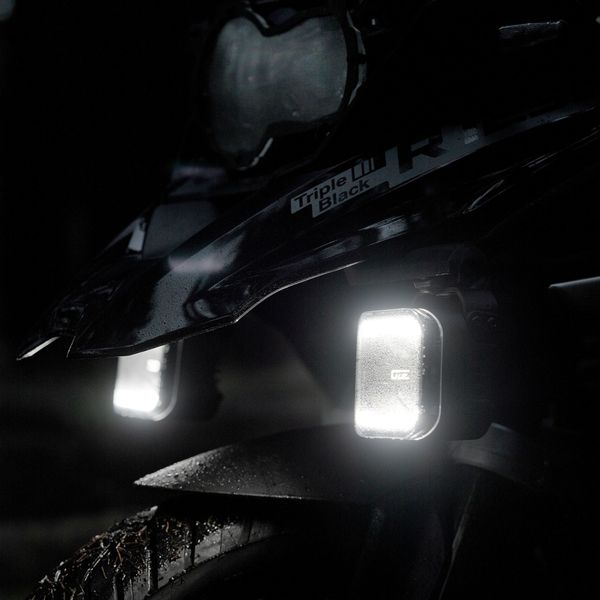

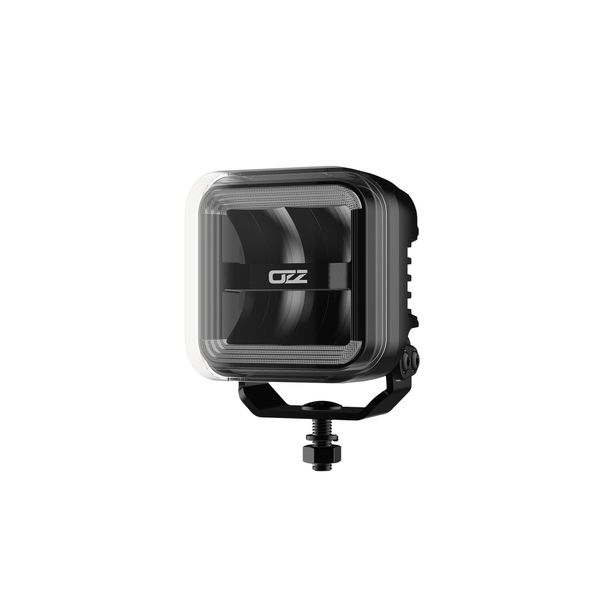

OZZ SQR 3" Black combines an ultra-compact design and dynamic position light with a capable auxiliary light. The black housing and angular design suit a wide range of vehicles, from ATVs to motorcycles, especially when mounting space is limited. Despite its small 9.7 cm size, the auxiliary light delivers impressive performance: up to 3500 lumens and a range of 375 meters @ 1 lux, effectively improving visibility on dark and challenging roads.

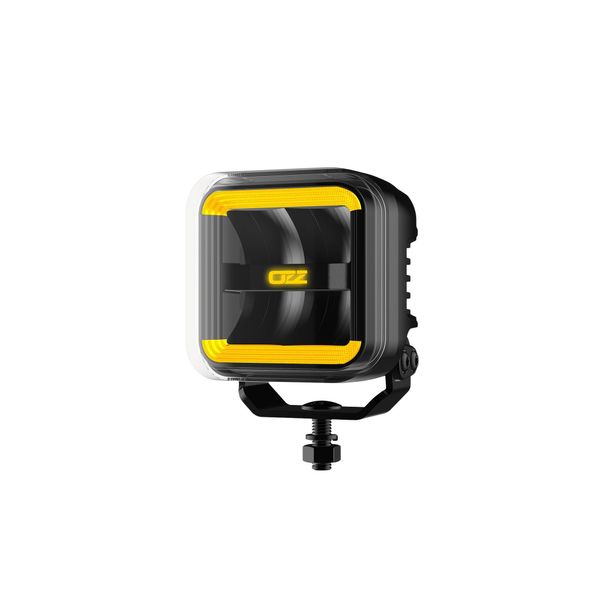

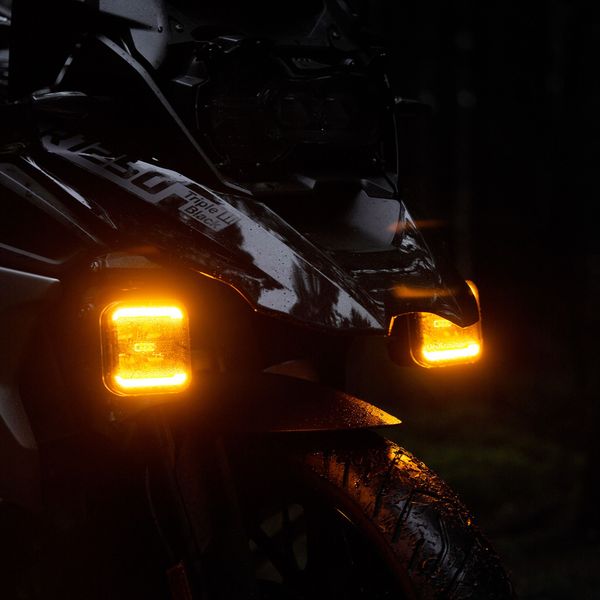

One of the most eye-catching features of the OZZ SQR 3" Black is the dynamic position light, which starts up with an impressive lighting sequence when the vehicle is started. The position light colour can be set to either white or amber, making it easy to match the appearance of the light to the vehicle’s style and intended use. The 5000 Kelvin colour temperature of the main beam is neutral white and comfortable for the eyes, helping to maintain good driving comfort even on longer journeys. Three-year (36 months) warranty!
OZZ SQR 3" is available in two different colours:
Basic delivery contents
- OZZ SQR 3" Black
- Power cable with DT4 connector, 1000 mm
- Mounting foot
Delivery contents (2 pieces - Complete set)
- 2 x Basic delivery contents
- Additional light holder for EU plate, Purelux
- Relay cable set Purelux Pro Serie 12V, DT-4 (2 outputs)
- Support bracket, 2 pcs.
Delivery contents (3 pcs - Complete set)
- 3 x Basic delivery contents
- Additional light holder for EU plate, Purelux, for 3 lights
- Relay cable set Purelux Pro Serie 12V, DT-4 (1 x 2 outputs, 1 x 1 output)
- Support bracket, 4 pcs.
Delivery contents (4 pcs - Complete set)
- 4 x Basic delivery contents
- Additional light holder for EU plate, Purelux HD, for 4 lights
- Relay cable set Purelux Pro Serie 12V, DT-4 (2 x 2 outputs)
- Support bracket, 4 pcs.
Technical information
- Brand and model: OZZ SQR 3" Black
- Intended use: As an auxiliary light in cars / work machines
- Operating voltage: 10–32V DC
- Reference number: 25
- Power consumption stated by the manufacturer: 4.18A @ 12V / 1.94A @ 24V
- Rated power: 60 W
- Power stated by the manufacturer: 50 W @ 12V / 46.6 W @ 24V
- Theoretical light output: 4800 lm
- Light output stated by the manufacturer: 3500 lm
- Range stated by the manufacturer: 375 m @ 1 lux
- Range with multiple lights:
- With two: 530 m @ 1 lux
- With three: 650 m @ 1 lux
- With four: 750 m @ 1 lux
- Color temperature stated by the manufacturer: 5000 K
- Mounting: Mounting foot
- Connector: DT-4
- Cable length: 1000 mm
- Dimensions: 97 x 97 x 50 mm (Width x Height x Depth)
- Height with stand: 115.81 mm
- Other: Dynamic white and amber position light
- Protection class: IP68, IP69K
- Approvals: E-approved, ECE R149, ECE R148, ECE R10
- Warranty: 36 months
Installation guide
Manufacturer’s user manual (PDF)
