Auxiliary light OZZ HP P20" Black, Straight / 52 cm / 280W / Ref. 40
Powerful LED driving light with a low-profile black housing. Up to 17,500 lumens and a 1,100 m range provide excellent visibility when driving in the dark.
Select option:
Product Faq
Powerful LED driving light with a low-profile black housing. Up to 17,500 lumens and a 1,100 m range provide excellent visibility when driving in the dark.

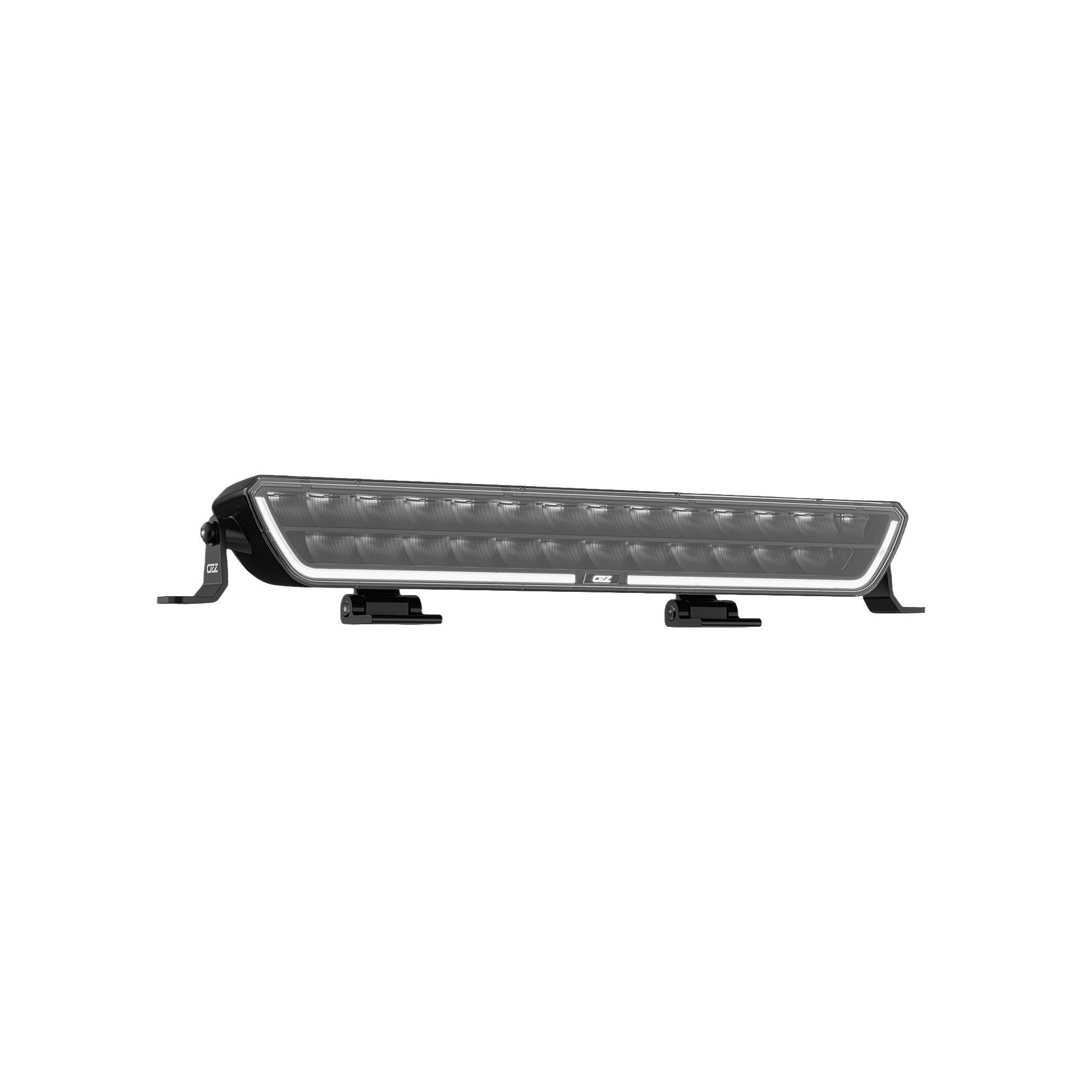

OZZ HP P20” Black is a long-range LED auxiliary light designed for driving conditions where maximum range and powerful light output are required. The black low-profile housing gives the vehicle a stylish finishing touch, making the light particularly well suited for heavy-duty vehicles. In Boost mode, the auxiliary light produces up to 17,500 lumens, while the wide beam pattern reaches up to 1,100 metres (@ 1 lux), according to the manufacturer.
OZZ HP P20″ Black stands out with an impressive start-up animation when the parking light is switched on. The parking light colour can be selected as either white or amber, making it easy to match the appearance of the light to the style of the vehicle. The neutral white 5000 K colour temperature of the driving light is pleasant on the eyes, supporting driving comfort even on longer journeys. Three-year (36-month) warranty!

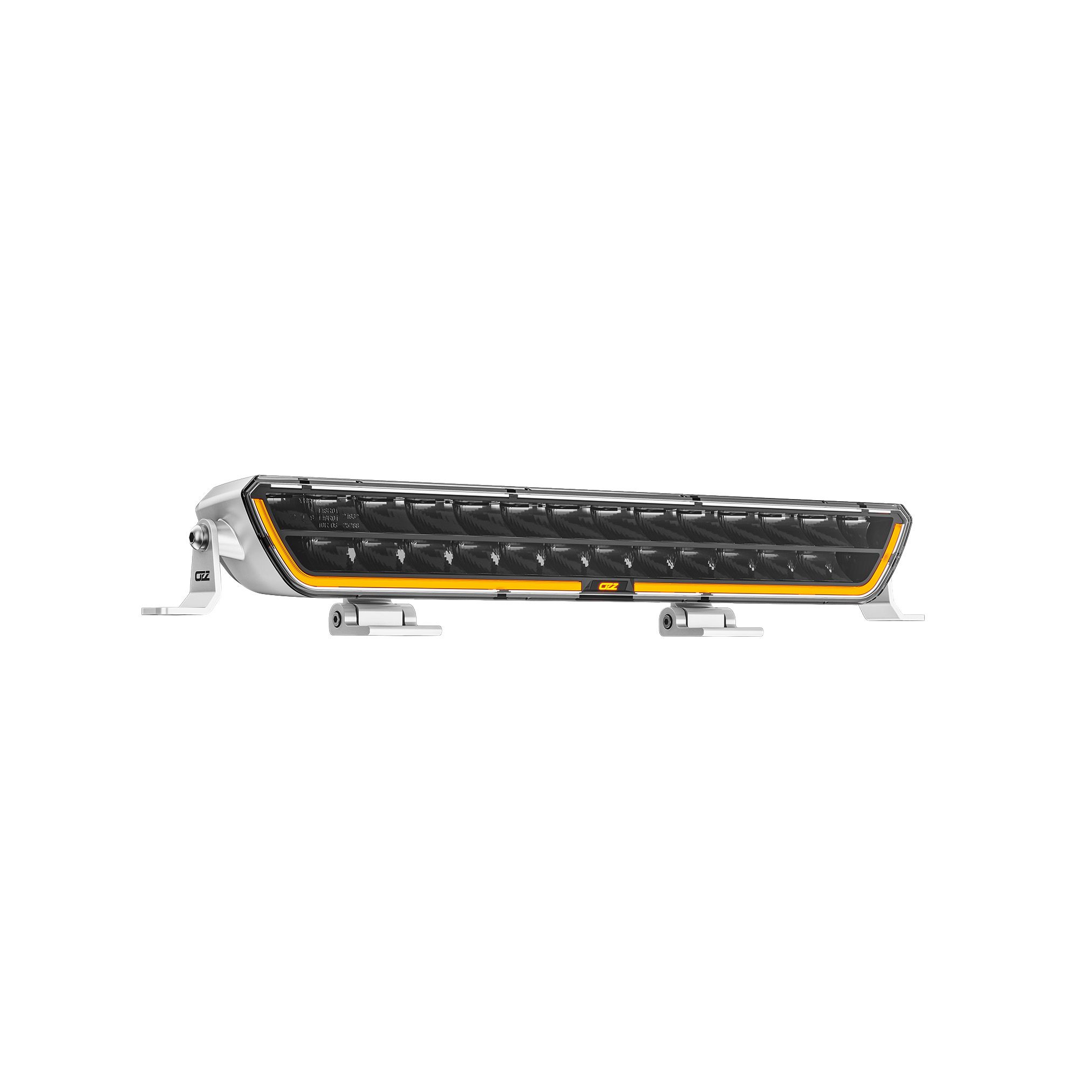

OZZ HP P20″ is available in two different colours:
Basic delivery contents
- OZZ HP P20″ Black
- Power cable with DTP connector, 1000 mm
- Mounting bracket
Delivery contents (1 pc - Complete set)
- Basic delivery contents
- Auxiliary Light Mount for EU Licence Plate, Purelux
- Relay Wiring Harness Purelux 12V, HD DTP (1 Output)
- Support Brackets, 2 pcs
Delivery contents (1 pc - Complete set with flush mounting bracket)
- Basic delivery contents
- Adjustable Auxiliary Light Mount for EU Licence Plate, PURELUX
- Relay Wiring Harness Purelux 12V, HD DTP (1 Output)
- Support Brackets, 2 pcs
Technical specifications
- Brand and model: OZZ HP P20″ Black
- Intended use: As an auxiliary light in cars / work machines
- Operating voltage: 9–36V DC
- Reference number: 40
- Power consumption stated by the manufacturer:
- R149: 1.9A @ 12V / 0.9A @ 24V
- Boost: 22.8A @ 12V / 9.6A @ 24V
- Rated power: 280 W
- Power stated by the manufacturer:
- R149: 23 W @ 12V / 23 W @ 24V
- Boost: 274 W @ 12V / 274 W @ 24V
- Theoretical light output:
- R149: 3000 lm
- Boost: 23000 lm
- Light output stated by the manufacturer:
- R149: 2200 lm
- Boost: 17500 lm
- Range stated by the manufacturer:
- R149: 418 m @ 1 lux
- Boost: 1100 m @ 1 lux
- Color temperature stated by the manufacturer: 5000 K
- Mounting: Mounting foot
- Connector: DTP
- Cable length: 100 cm
- Dimensions: 523 x 70 x 82 mm (Width x Height x Depth)
- Height with stand: 80 mm
- Protection class: IP68, IP69K
- Approvals: E-approved, ECE R149, ECE R148, ECE R10
Quick Guide
Manufacturer's user manual (PDF)
