Auxiliary light LAZER Sentinel 7" Elite+ - Round / 18 cm / 145W / Ref. 7.5

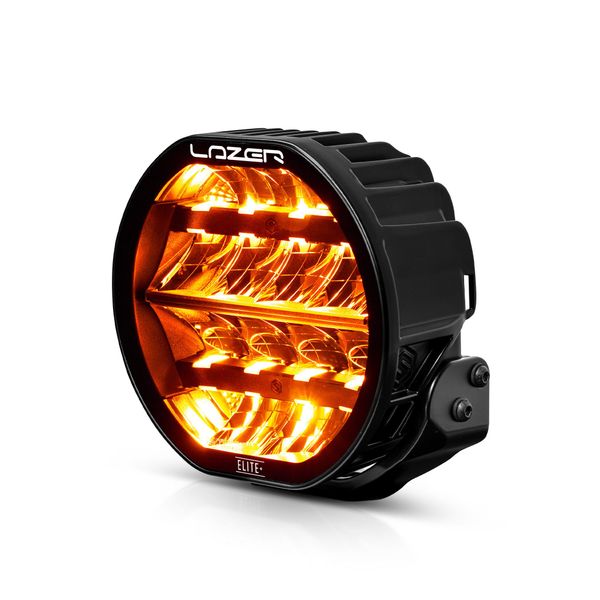

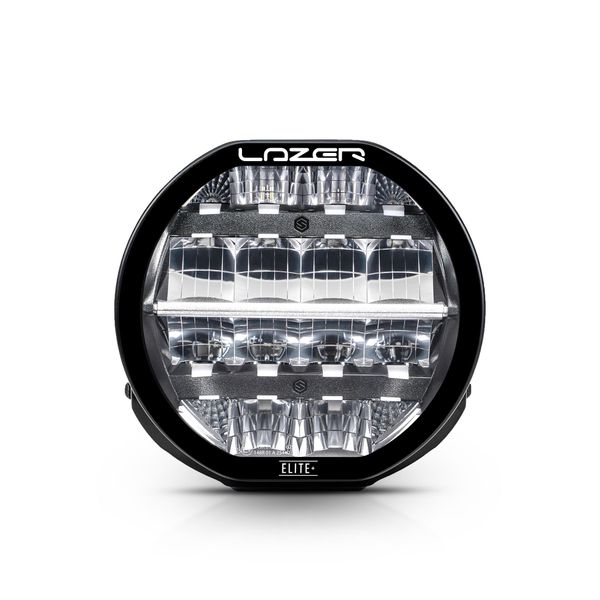

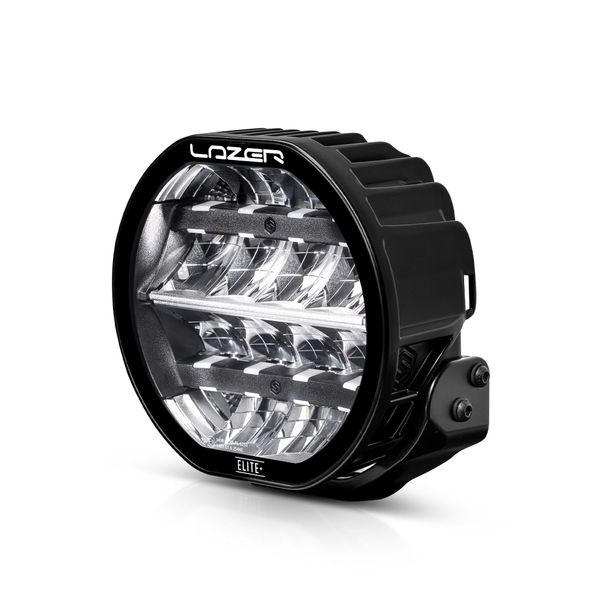

The Lazer Sentinel 7" Elite+ is a modern round LED auxiliary light that delivers extremely strong performance in a compact 7-inch size. The light combines both white and yellow LEDs, adding versatility especially in challenging driving conditions. In Boost mode, the Sentinel 7" Elite+ produces up to 11,214 lumens and a range of 671 metres @ 1 lux, according to the manufacturer. In Combo mode, the white and yellow LEDs operate together, increasing the output to as much as 14,859 lumens and the range to 679 metres @ 1 lux.

The Sentinel 7" Elite+ features four lighting modes. Snow/Fog/Dust mode uses only the yellow LEDs, with the beam directed slightly downward and toward the sides of the road to reduce reflected light in conditions such as snow, fog, dust and heavy rain. In Combo mode, the yellow light complements the 5000 K white high beam, softening the overall colour tone. The fourth lighting mode is the road-legal Low Output / E-Mark mode. The lighting modes are easily changed using a momentary switch.

The auxiliary light is also equipped with a white or amber position light and two dynamic Welcome Mode functions. Designed for demanding use, the light is IP68 rated, while its polycarbonate lens and durable aluminium housing are built to withstand hard use and varying weather conditions. Five-year (60-month) warranty!

Basic delivery contents

• Lazer Sentinel 7" Elite+
• Slim mounting bracket
• Lazer stone guard
• Wiring and installation instructions

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux
• Wiring harness with relay LAZER Two Lamp Wiring Kit, 12V
• Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (3 pcs - Complete set)

• 3 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux HD, for 3 lights
• 2 x Wiring harness with relay LAZER Two Lamp Wiring Kit, 12V
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (4 pcs - Complete set)

• 4 x Basic delivery contents
• Auxiliary light bracket Purelux HD, for 4 lights
• 2 x Wiring harness with relay LAZER Two Lamp Wiring Kit, 12V
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Technical specifications

• Brand and model: Lazer Sentinel 7" Elite+
• Intended use: Auxiliary light for cars / work machines
• Operating voltage: 10–32 V
• Reference number: 7.5 (Low Output / E-Mark)
• Lighting modes:
  • Boost: white
  • Combo: white + yellow
  • Snow/Fog/Dust: yellow
  • Low Output / E-Mark: white, road legal
• Manufacturer-stated light output:
  • Boost: 11,214 lm
  • Combo: 14,859 lm
  • Snow/Fog/Dust: 3,645 lm
  • Low Output / E-Mark: 2,238 lm

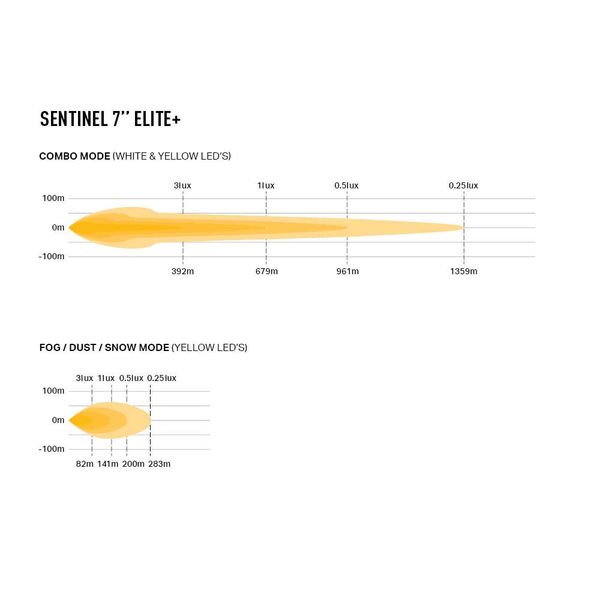

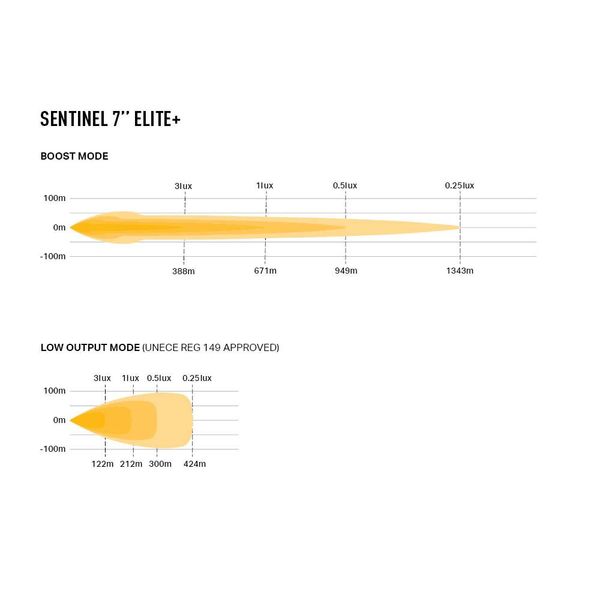

• Manufacturer-stated range @ 1 lux:
  • Boost: 671 m
  • Combo: 679 m
  • Snow/Fog/Dust: 212 m
  • Low Output / E-Mark: 141 m
• Manufacturer-stated power:
  • Boost: 102 W
  • Combo: 145 W
  • Snow/Fog/Dust: 42 W
  • Low Output / E-Mark: 20 W
• Manufacturer-stated colour temperature: 5000 K (white light)
• Position light: White / amber
• Mounting: Slim mounting bracket
• Mounting adjustment range: ±6°
• Connector: DT-4

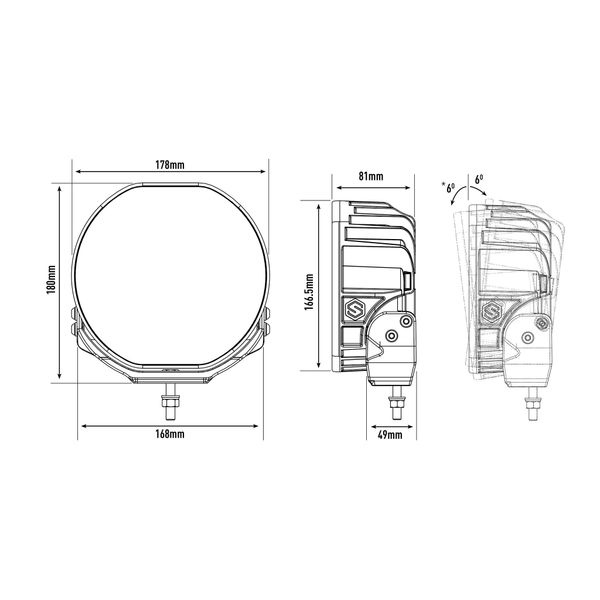

• Dimensions: 178 x 166.5 x 81 mm (Width x Height x Depth)
• Height with bracket: 198 mm
• Weight: 1500 g
• IP rating: IP68
• Approvals: ECE R10 (EMC), ECE R149, ECE R148
• Warranty: 60 months

Lighting modes

• Boost: White LEDs at full power. Light output 11,214 lm and range 671 m @ 1 lux.
• Combo: White and yellow LEDs illuminate simultaneously. Light output 14,859 lm and range 679 m @ 1 lux.
• Snow/Fog/Dust: Yellow LEDs only. The beam is directed slightly downward and toward the sides to improve visibility in snow, fog, dust and rain.

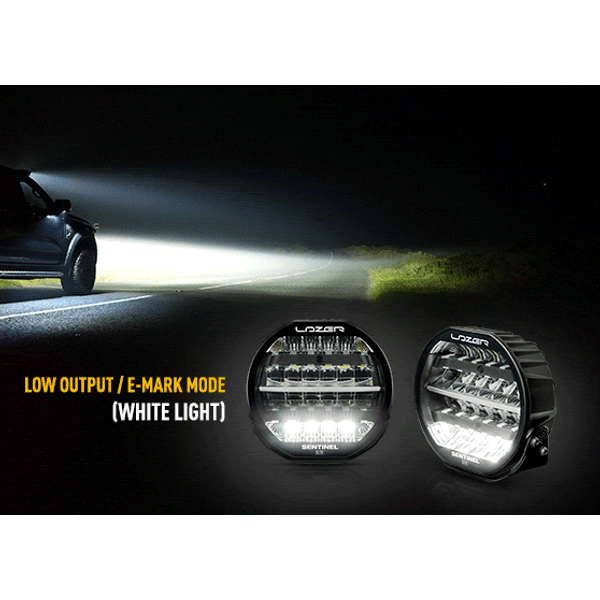

• Low Output / E-Mark: Road-legal white high beam mode. Light output 2,238 lm and range 141 m @ 1 lux.

The lighting modes are changed using a momentary switch. Pressing the switch cycles through the different lighting modes. Holding the switch for two seconds switches the light directly to the road-legal Low Output / E-Mark mode.
