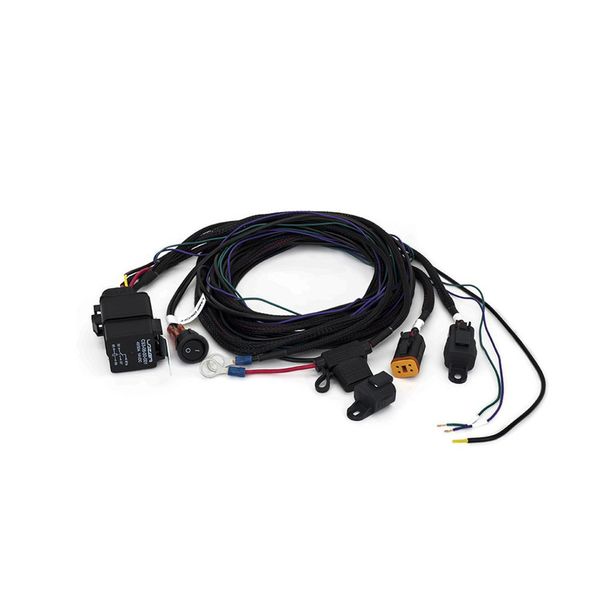

Wiring harness with relay LAZER Two Lamp Wiring Kit, 12V - DT-4

Two-lamp relay wiring kit designed for Lazer high-performance LED auxiliary lights, enabling quick and reliable connection to the vehicle's electrical system. The wiring kit is equipped with 4-pin DT connectors, allowing compatible lights to be connected without cutting or modifying the wiring. The kit allows the lights to be operated either together with the vehicle's standard high beams or independently using a separate switch installed in the cabin.

The wiring kit includes a 12 V relay housed in a waterproof enclosure, a 25 A fuse and a battery connection. The cables leading to the lights are 2.3 metres long, and the cable sections routed through the engine bay are protected with fabric braid for improved durability. An additional extension cable for connecting fog light and E-Mark modes is also included. The relay holder is IP53 rated when installed vertically.

Compatibility

• Lazer Carbon-4 Spot / Drive
• Lazer Carbon-6 Spot / Drive, white low beam
• Lazer RP Hyperspot
• Lazer Utility-50 Beacon
• Lazer Utility-50 Red Tail Light
• Lazer Utility-80 HD Variable
• Lazer Sentinel 7" Elite+

Technical specifications

• Product: Lazer Two Lamp Wiring Kit DT-4
• Intended use: Relay wiring kit for two compatible Lazer lights
• Operating voltage: 12 V
• Relay: 12 V, in waterproof housing
• Fuse: 25 A
• Connectors: DT-4
• Cable length: 2.3 m
• Relay holder IP rating: IP53, when installed vertically
• Optional on/off switch for independent operation included
• Extension cable for connecting fog light and E-Mark modes
• Engine bay cable sections protected with fabric braid
• Warranty: 12 months
