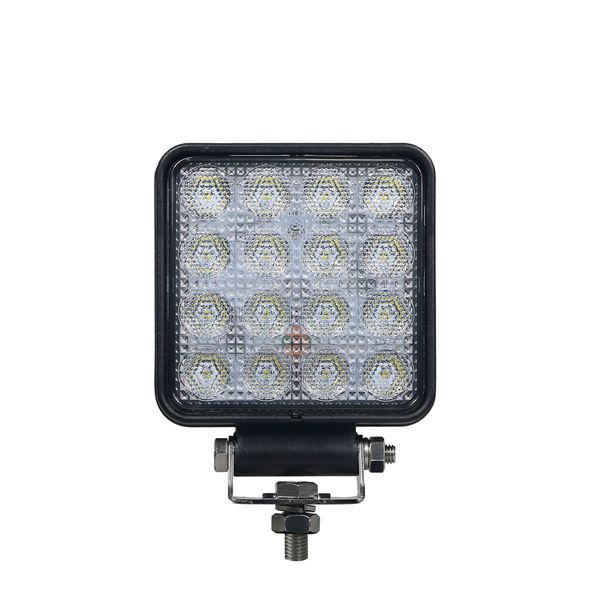

Work light Strands Square Work/Reverse Light - 11 cm / 25W / Wide

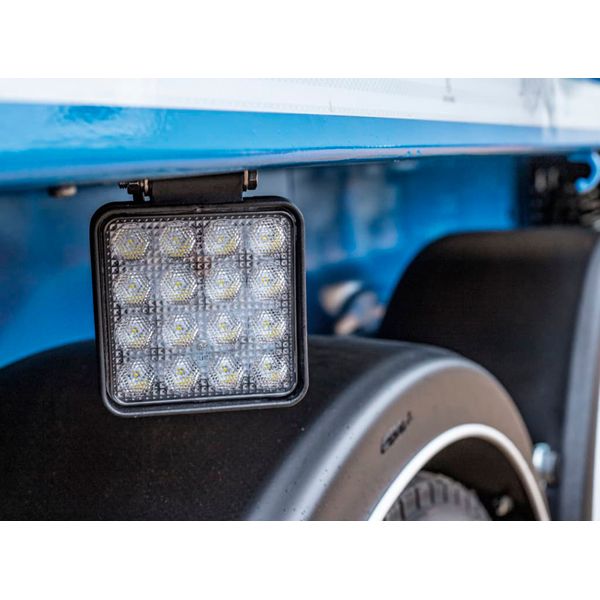

As the name suggests, the Strands Square Work/Reverse Light is a work light that also has reverse light approval. The light can be installed, for example, on the rear skirts of the vehicle or on the roof, from where its wide light beam casts light widely behind the vehicle, making reversing and also working around the vehicle easier. According to the manufacturer, the light output from the lamp is 2200 lumens, and the range with a wide beam is 77 m @ 1 lux. The light's slender frame makes it a perfect choice for even tighter spaces, and the narrow design enables the light to be positioned, e.g. on the skirts of the truck, so that the light remains in the vehicle's body shields, where it is inconspicuous and protected from, e.g., mud and slush splashed by the tires in winter.

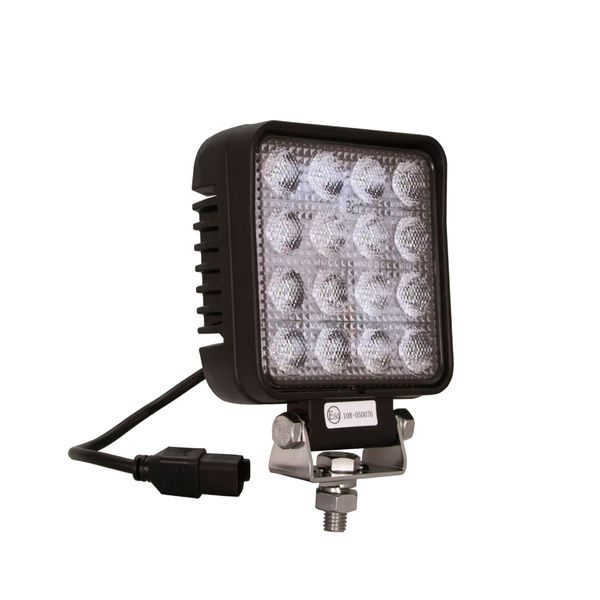

The body of the lamp is made of durable aluminum, the lens is made of polycarbonate, and the mounting leg is made of stainless steel. In addition, the light has the highest possible tightness rating (IP69K), so it can withstand even the toughest work. The light can also be used in vehicles transporting dangerous goods thanks to its ADR approval. The wide operating voltage (12-32V) enables installation in both 12V and 24V voltage, and the DT connector already in place in the power cord facilitates installation. The lamp is protected against radio interference according to the ECE R10 standard. Three-year (36 months) warranty!

Delivery content

• Strands Square Work/Reverse Light
• Power cord with DT connector
• Mounting stand
• Fastening screws and bolts
• Installation and connection instructions

Technical information

• Make and model: Strands Square Work/Reverse Light
• Purpose: As a work and reversing light in vehicles / machinery
• Operating voltage: 12-32V
• Power declared by the manufacturer: 25 W
• Light output stated by the manufacturer: 2200 lm

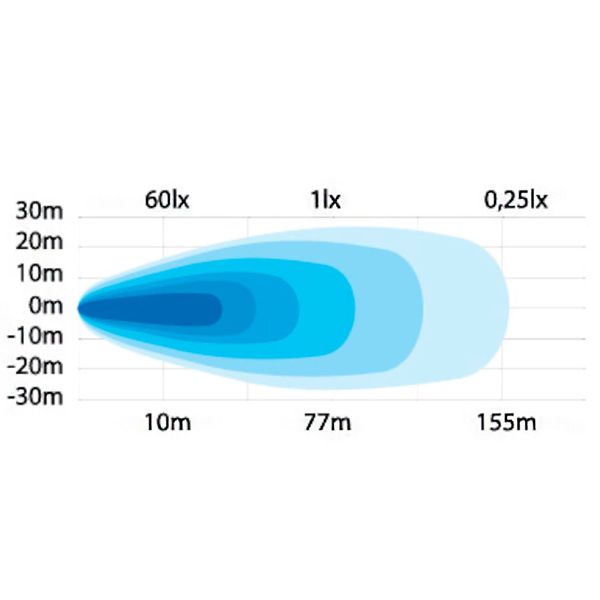

• Range declared by the manufacturer: 77 m @ 1 lux
• Color temperature stated by the manufacturer: 6000K
• Spotlight: Wide
• Mounting: Mounting base
• Connector: DT-2
• Cable length: 1002 mm
• Dimensions: 110 x 110 x 46.52 mm (Height x Width x Depth)
  • Height with foot: 138.83 mm
• IP rating: IP67/IP69K
• Operating temperature: -30°C to +65°C
• Approvals: EMC: ECE: R10, R23
• Warranty: 36 months

Installation guide

Manufacturer's Installation and Wiring Guide: Strands Square Work/Reverse Light Manual (opens in new window).
