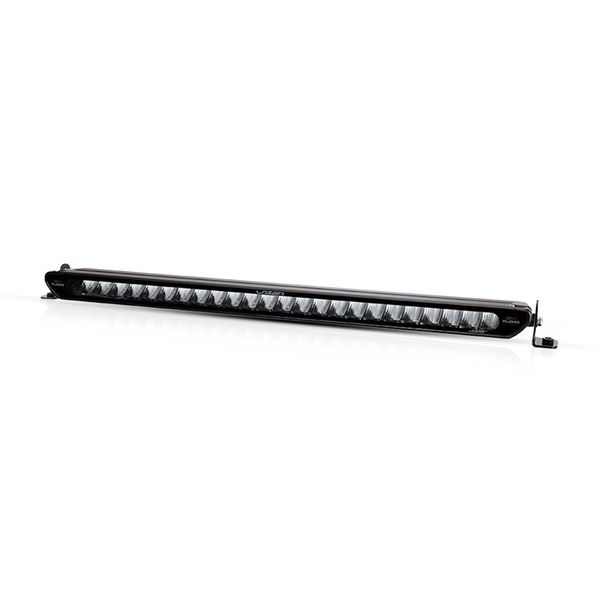

Worklight Lazer Linear-24 Flood - 68 cm / 168W / Wide

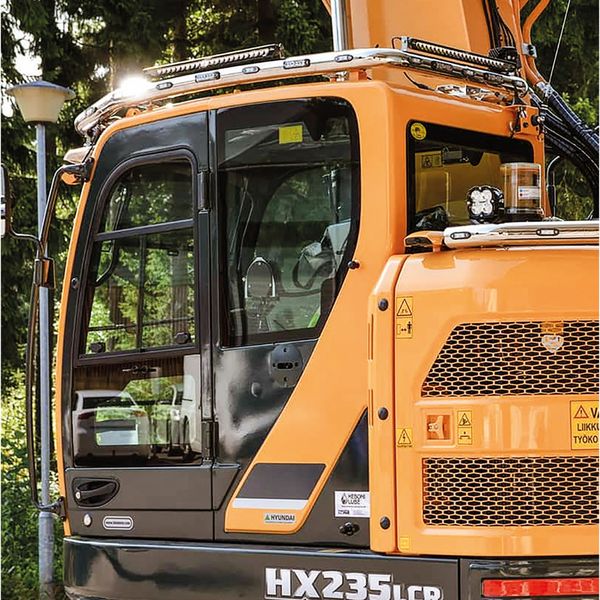

The Lazer Linear-24 Flood is a powerful, low-profile LED work light designed for demanding professional use in construction, forestry, agriculture, and industrial applications. With a manufacturer-declared light output of 11,534 lumens and an exceptionally wide 110° beam pattern, it effectively illuminates the area in front of and to the sides of the vehicle, providing excellent visibility at close range. The neutral white 5000 K color temperature makes details in the working area easy to distinguish, while the slim housing, measuring just 40 mm in height, allows for discreet installation, for example, on the roof of a machine cab. A durable aluminum housing, impact-resistant polycarbonate lens, and IP68/IP69K rating ensure reliable performance even in demanding working conditions.

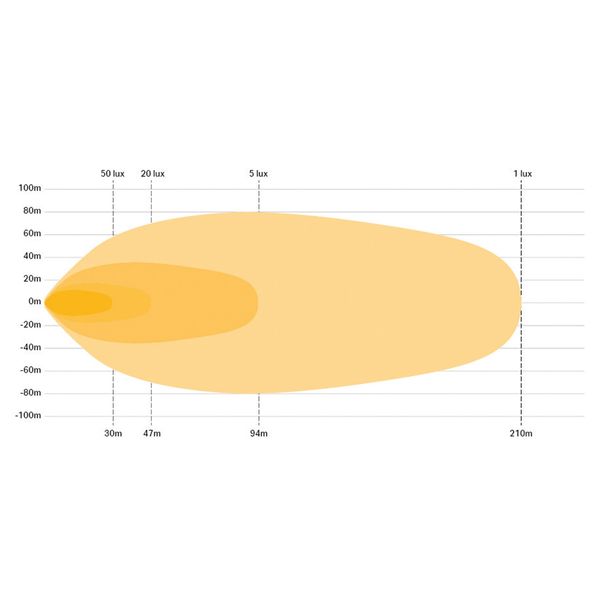

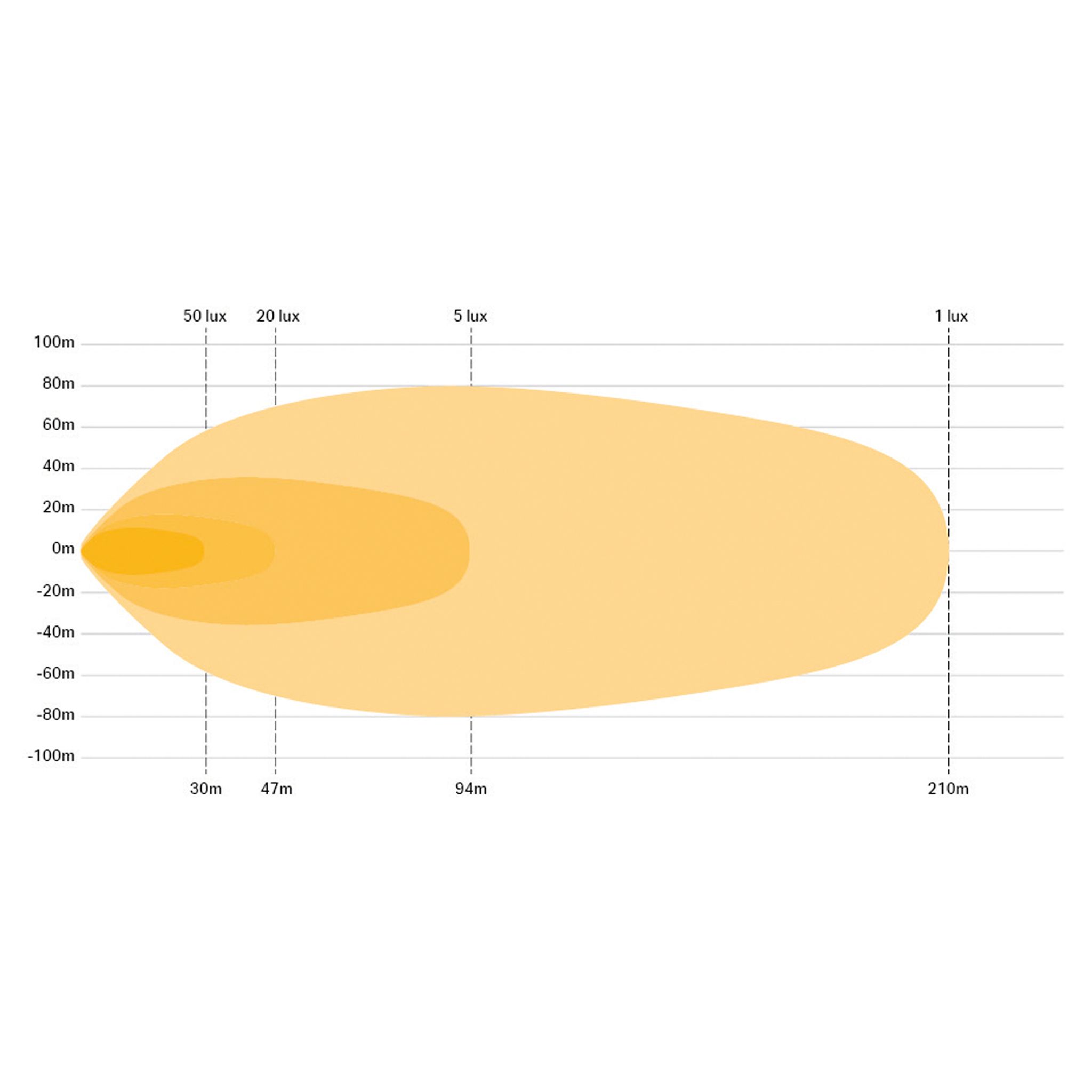

The Linear-24 Flood utilizes the same LED technology as Lazer's Linear Elite series of driving lights. Specially designed reflectors produce a wide, even beam pattern optimized to illuminate the working area within approximately 20 meters of the vehicle. In addition to its wide 110° horizontal beam spread, the light offers a 51° vertical beam angle, ensuring that the ground and working area immediately around the machine are also effectively illuminated. This makes it an excellent choice for excavation, loading, forestry machinery, and other applications requiring powerful illumination across a wide area. Thanks to its high light output, a single Linear-24 Flood can also replace several smaller work lights.

The Linear-24 Flood is built to withstand heavy use and challenging conditions. Its robust aluminum housing and impact-resistant polycarbonate lens protect the light against impacts and other external stresses, while the IP68/IP69K rating provides protection against dust, water, and high-pressure water jets. Built-in electronic thermal management protects the LEDs from overheating, while compliance with CISPR 25 Class 3 helps minimize electromagnetic interference. The light is supplied with stainless steel side mounting brackets and a power cable with Deutsch DT-2 connectors for installation. Five-year (60-month) warranty!

Delivery contents

• Lazer Linear-24 Flood work light
• Anti-theft side mounting kit (1127K), stainless steel
• Power cable with DT-2 connectors

Technical specifications

• Brand and model: Lazer Linear-24 Flood
• Intended use: Work lighting for vehicles and machinery
• Operating voltage: 10–32 V
• Manufacturer-declared power: 168 W
• Manufacturer-declared luminous flux: 11,534 lm
• Manufacturer-declared beam distance: 210 m @ 1 lux
• Color temperature: 5000 K
• Beam pattern: Wide flood
• Connector: DT-2

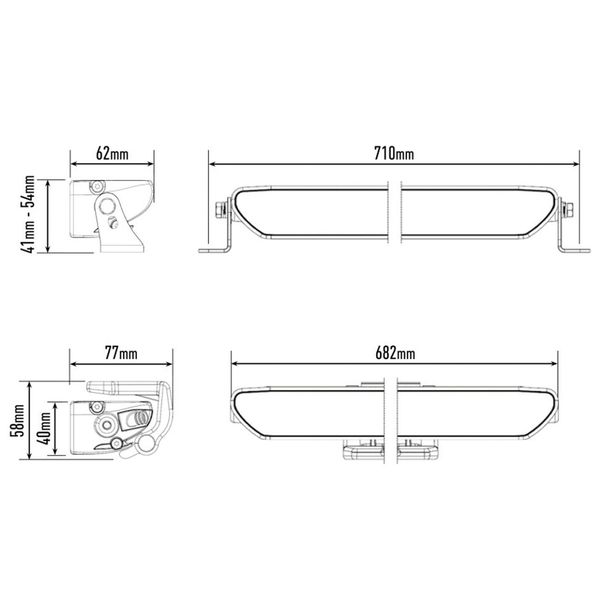

• Dimensions: 682 x 40 x 62 mm (Width x Height x Depth)
• Weight: 1500 g
• IP rating: IP68/IP69K
• Operating temperature: -40 – +90 °C
• Approvals and standards: ECE R10 (EMC), CISPR 25 Class 3, ISO 9227, ISO 7637-2
• Country of manufacture: United Kingdom
• Warranty: 60 months
