Relay wiring harness PURELUX Pro Serie 24V, DT-6

NOTE! The Purelux relay wiring harness is also suitable for connecting non-Purelux auxiliary lights. We also have a range of harnesses with other types of connectors, and of course you can remove the connector from the harness and connect the light directly to the wires.

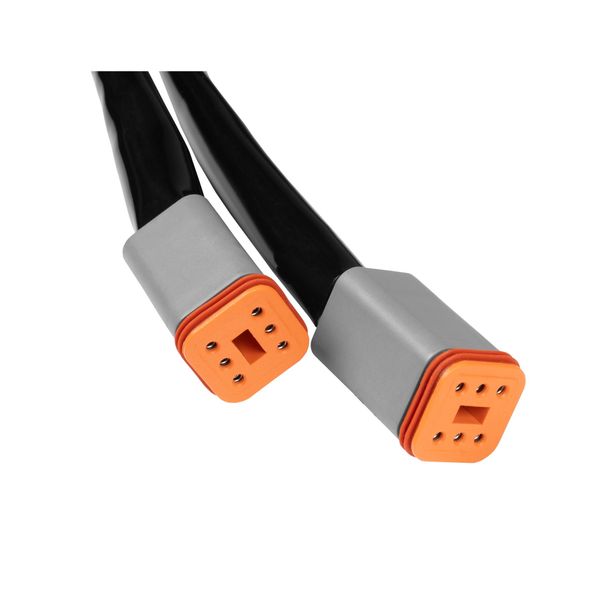

The Purelux ProSeries relay wiring harness is the solution for easy and convenient installation of auxiliary lights. This wiring harness contains everything you need to connect an auxiliary light with DT-6 connector to a 24V system! Other relay wiring harnesses on the market often require the purchase of all kinds of additional connectors etc. depending on the connection method, but this relay harness comes with everything you need. The wiring harness is equipped with two outlets, which means that one or two additional lights can be installed. In addition to the DT-6 connector, the wiring harness also has 4 separate wires for activating, for example, parking light, warning light, heating or boost mode.The wiring harness is suitable for direct 24V power, current rating 360W (180W/connector).

Technical specifications

• What: Relay wiring harness Purelux Pro Serie 12V, DT-6
• Purpose: To connect auxiliary lights to a vehicle
• Voltage: 24V
• Connector: DT-6
• Maximum load: 360W (180W/connector)
• Relay: 40A
• Fuse: 30A
• 2 outputs
• Dimensions:
  • Length from auxiliary light to relay: 300 cm
  • Length from battery to relay: 54 cm
  • Length of excitation cable: 170 cm
  • Length of parking light wires: 80 cm
• Warranty: 12 months

Wiring diagram
