Relay wiring kit Purelux Dualrelay HD, 12V

NOTE! The Purelux relay wiring harness is also suitable for connecting additional lights other than Purelux. Our range also includes wiring harnesses with other connectors, and of course you can remove the connector from the wiring harness and connect the light directly to the wires.

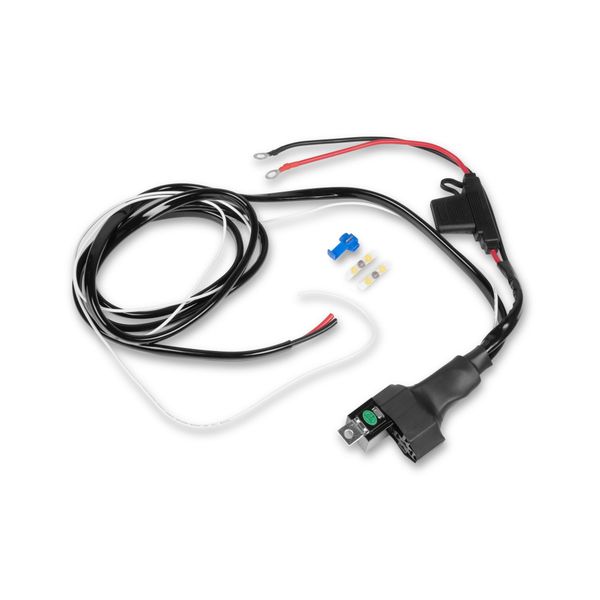

The Purelux Dualrelay relay wiring harness is an innovative and easy solution for installing one max. 500W powerful auxiliary light in can-bus controlled vehicles. This relay wiring harness has an integrated Plug&Play type slot for the XBB relay, which together with the XBB OBD Dongle controller enables the excitation current to be captured for the auxiliary light directly from the can-bus. When used alone, the "problem" of the XBB relay is that it can only handle 180W powerful lights (e.g. 2 x 90W). However, many lights today are much more powerful, so they cannot be directly connected with the XBB. When the XBB relay is connected to the Dualrelay wiring harness, it sends the excitation directly to the wiring harness's own relay, which also enables the connection of more powerful auxiliary lights to the vehicle without the need to make any changes to the wiring harness.

The wiring harness has one output without a connector, so it allows you to connect one light. In addition to the wire for the additional light, the wiring harness also has a wire that is powered by the "Output2" channel of the XBB relay, so it can be used to turn on the parking light, for example (the white wire is connected directly to the parking light wire of the additional lights). The wiring harness is directly connected to 12V power. Max. current capacity 500W.

Note! In addition to the wiring harness, you also need the XBB OBD Dongle & PowerUnit switching relay. On this page you can buy either just the wiring harness or a complete set, which includes the wiring harness, the aforementioned switching relay and the control unit. Select the appropriate option from the product options.

Specifications

• Product: Relay wiring kit Purelux Dualrelay 12V
• Purpose: Connecting additional car lights
• Operating voltage: 12V
• Max. power handling 500W
• Connector: No connector
• 1 output
• Relay: 60A
• Fuse: 50A
• Dimensions:
  • Length from light to relay: 225 cm
  • Length from battery to relay: 54 cm
  • White wire length: 200 cm
• Cable thickness from battery to relay: 4.75 AWG
• Cable thickness from light to relay: 4.75 AWG
• Approvals: CE
• Warranty: 12 months
