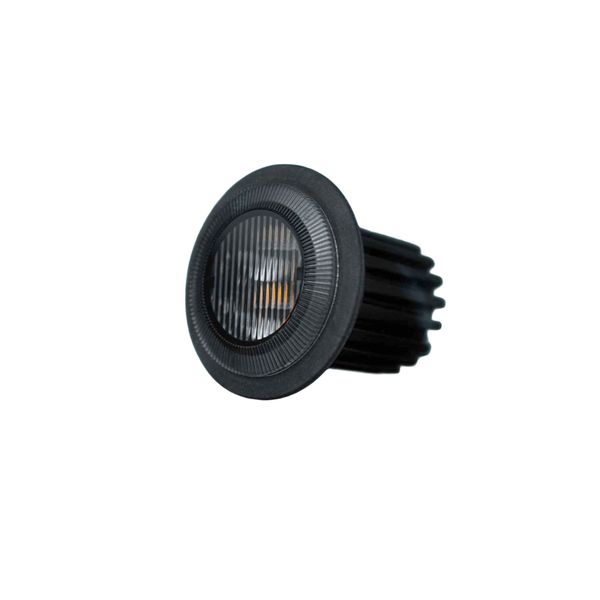

Warning light STRANDS Dark Knight Gloria - 12/24V / 12W / 44 mm

The Strands Dark Knight Gloria is a compact warning light featuring a smoke-tinted lens that perfectly combines high visibility with a stylish and discreet design. The dark lens blends seamlessly into dark vehicles, providing an exclusive, factory-fitted look when not in use. Once activated, the powerful LED-lights ensure excellent visibility. Fully ECE R65 Class 1 approved for road use, the Dark Knight Gloria offers 21 distinct flash patterns. This allows you to easily customize the warning light to perfectly match your vehicle and its intended use.

Designed for professional use, the Strands Dark Knight Gloria is highly versatile. It is an ideal fit for cars, vans, trucks, construction equipment, and service vehicles. Featuring a fully recessed design, this light installs completely flat against the vehicle. This not only creates a sleek, discreet appearance but also protects the unit from physical damage. With three included mounting options, the Gloria can be easily installed on flat surfaces, curved surfaces, or pipes. It is also ideal for grille mounting on light commercial vehicles.

The robust design features no exposed aluminum, significantly reducing the risk of corrosion. Rated IP69K, the light is fully waterproof and dustproof, built to withstand even the harshest environments. The wide operating voltage (10–40V) makes the light compatible with both 12V and 24V systems. Additionally, the light features ECE R10 EMC protection to prevent radio interference. 3-year warranty!

Contents

• Strands Dark Knight Gloria Warning light
• Mounting bracket
• Rubber plate for flat surface
• Concave rubber gasket for tubes
• Mounting screws
• Installation and connection manual

Technical specification

• Brand and model: Strands Dark Knight Gloria
• Purpose: As a warning light / flashing light for vehicles and work machines
• Operating voltage: 10-32 V DC
• Theoretical power: 24 W
• Power declared by the manufacturer: 12 W
• Number of LEDs: 6 pcs
• Light color: Orange
• Number of flashing light patterns: 21
• Dimensions: 36 x 36 x 41 mm (Width x Height x Depth)
  • Hole opening when recessed: 36 mm
• Power cable length: 400 mm
• IP rating: IP69K
• Approvals: EMC: ECE R10, R65 Class 1
• Other: Tinted lens
• Warranty: 36 months

Operating modes

• Single flash (ECE R65)
• Single flash, slow
• Double flash (ECE R65)
• Double flash, slow
• Triple flash
• Quadruple flash, fast (ECE R65)
• Quadruple flash, slow
• Fast eight-flash
• Eight-flash, slow
• Twelve-flash
• Sixteen flash
• Single flash, split pattern
• Double flash, split pattern
• Quadruple flash, split pattern
• Eight-lightning, split pattern
• Single flash, accelerating split pattern
• Double flash, accelerating split pattern
• SOS flash
• Alternating flash sequence 1
• Alternating flash sequence 2
• Fixed light

Quick guide

Wiring:

• Red: Power (+)
• Black: Earth (-)
• Yellow: Pattern selection and synchronization. Connect to earth for less than 1 second to change pattern. Hold to ground for more than 3 seconds to reset.
• White: Connect to black cable to achieve low intensity (night mode).

Note! Synchronization is done by connecting the yellow cables of the devices to be synchronized.

You can find the manufacturer's installation instructions by clicking here (opens in new window)
