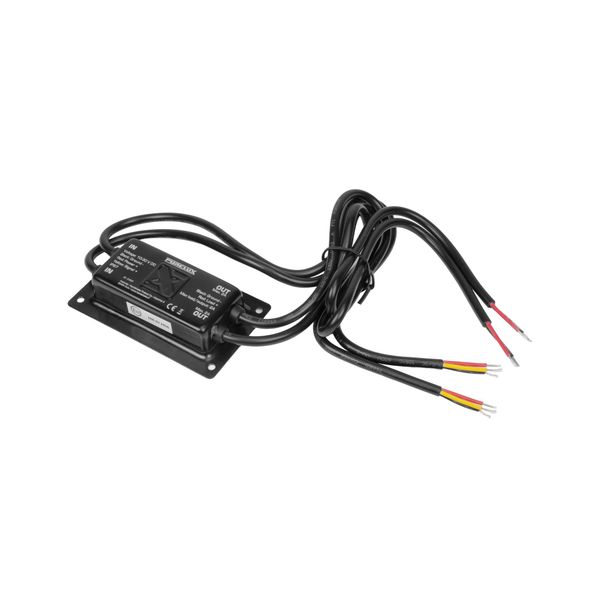

PURELUX Turn Signal Strobe Controller

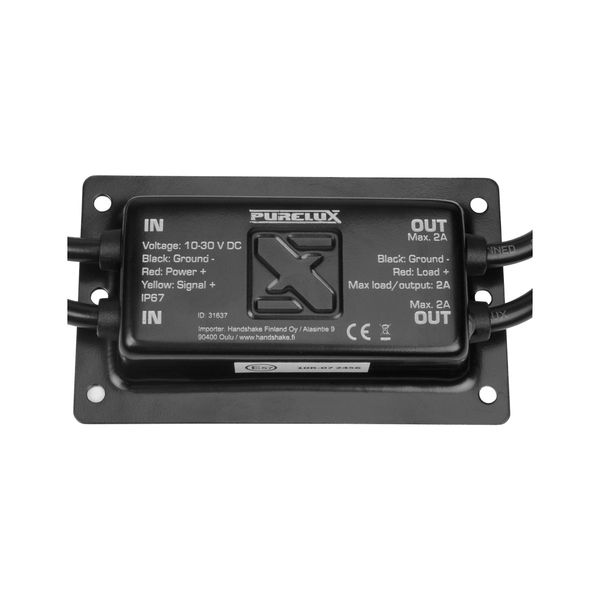

The Purelux Turn Signal Strobe Controller is a two-channel control unit that allows lights installed on a vehicle to be synchronized with the vehicle’s own turn signals and to be used as continuously lit side marker lights. The control unit has two separate circuits: one for the lights on the left side of the vehicle and one for the lights on the right side. The control unit is installed between the lights and the power source so that the lights are connected to the output channels of the control unit and the red wires coming from the input channel are connected to the vehicle’s battery. In this configuration, the side lights remain constantly lit at a steady brightness. The yellow wire can be used to tap the excitation current from the vehicle’s turn signals to the control unit, causing all lights connected to it to always flash in sync with the vehicle’s own turn signals and otherwise remain lit continuously at a steady level. In this way, the same side marker lights can be used both as traditional warning lights and as turn signals. The control unit is compatible with both 12V and 24V voltages.

One or more lights can be connected to each output of the control unit, provided that the combined load of the lights does not exceed 2A (24W/12V or 48W/24V) per output.

Technical Specifications

• Product: Purelux Turn Signal Strobe Controller
• Intended Use: Synchronizing side lights with turn signals
• Operating voltage: 10–30 V
• Maximum Load: 24W (12V) / 48W (24V)
• Dimensions: 130 x 70 x 60 mm (Length x Width x Depth)
• IP rating: IP67
• Warranty: 12 months
