Smart home control panel SHELLY Wall Display XL

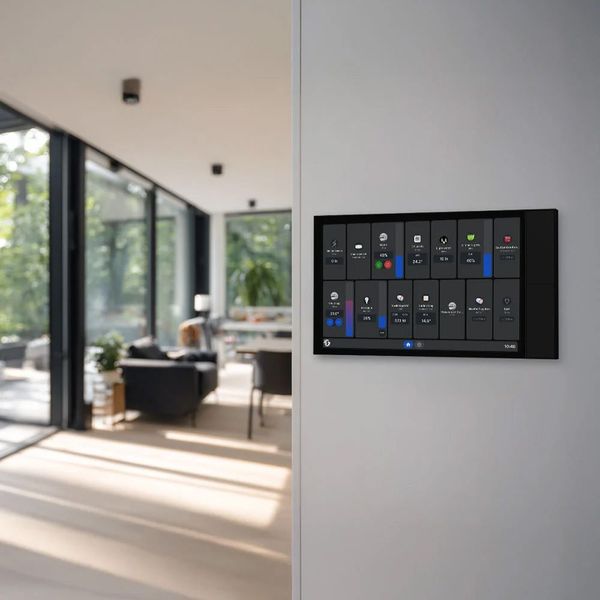

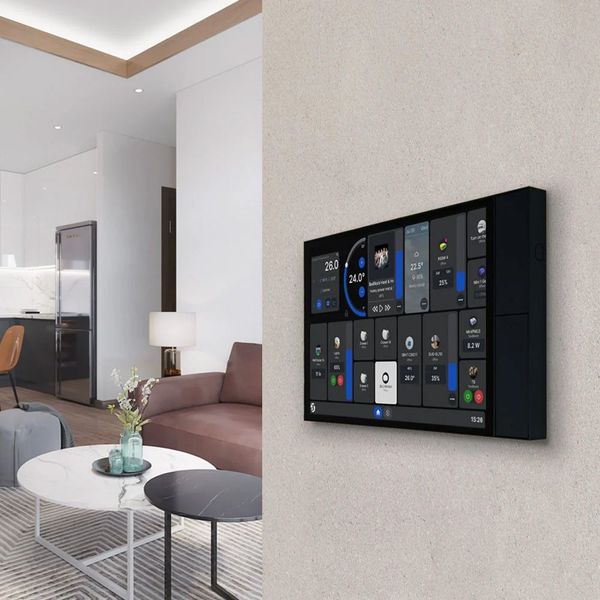

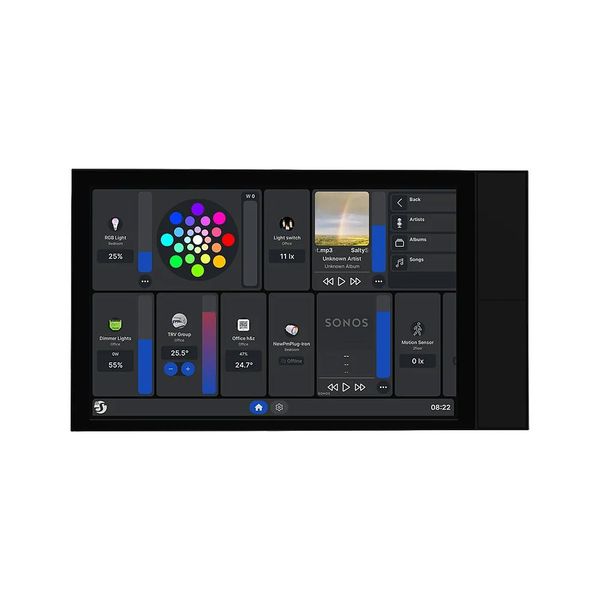

Shelly Wall Display XL is a wall-mounted smart home control panel equipped with a large 10.1-inch HD touchscreen, bringing the key functions of the home together in one clear view. The large display and intuitive interface make it easy to control lighting, heating, appliances and energy consumption, while the fully customizable home screen can be tailored around the most important functions. The built-in light sensor enables automations based on ambient lighting conditions, while the integrated 2 x 2 W speakers together with Bluetooth and Sonos support make the panel versatile for audio and media control as well.

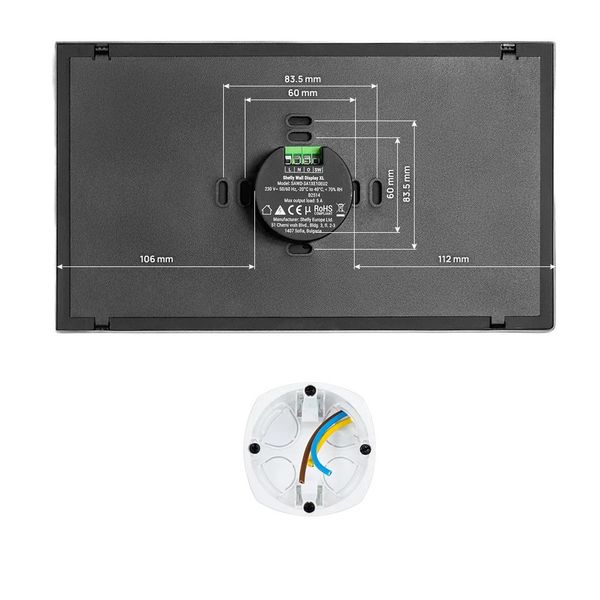

The device can be installed in a standard electrical wall box intended for a light switch, and the built-in relay allows one electrical circuit to be controlled directly from the panel. Next to the display are four customizable physical buttons that can be assigned as quick controls for lighting, devices, automations, views and media functions without opening menus on the touchscreen. The built-in media player also supports internet radio. Two-year (24-month) warranty!

Technical specifications

• Brand and model: Shelly Wall Display XL
• Intended use: Control and monitoring of Shelly smart home devices
• Operating voltage: 100–240 V
• Speaker output: 2 x 2 W
• USB-C:
  • Power input: 5 V, 3 A
  • Output: 5 V, 0.5 A
• Built-in relay:
  • Max. switching voltage: 240 V AC
  • Max. switching current: 5 A
• Wi-Fi: Wi-Fi 6 Dual Band
• RAM: 2 GB
• Storage: 32 GB
• Bluetooth: Bluetooth 5.4
• Display resolution: 1280 x 752 px
• Operating system: Android 11
• Color: Black / silver
• Dimensions (Width x Height x Depth): 272.5 x 155.8 x 38.3 mm
• Weight: 920 g
• Integrations: incl. Amazon Alexa, Google Smart Home and Samsung SmartThings
• Other features: Light sensor, four-microphone array, proximity/motion detection and four customizable physical buttons
• Operating temperature: -20 – +40 °C
• Warranty: 24 months
