Sensor interface SHELLY Plus Add-on

Shelly Plus Add-on is a compact sensor add-on that allows various sensors to be connected to compatible Shelly Plus, Gen3, and Gen4 devices, expanding their automation capabilities. The add-on module enables a wide range of sensor-based automations, such as controlling heating based on temperature, switching on lights using a motion sensor, or activating an irrigation system based on soil moisture levels. In addition, the analog and digital inputs allow various other sensors to be connected. Thanks to its galvanically isolated design, the module is suitable for a variety of home and building automation applications.

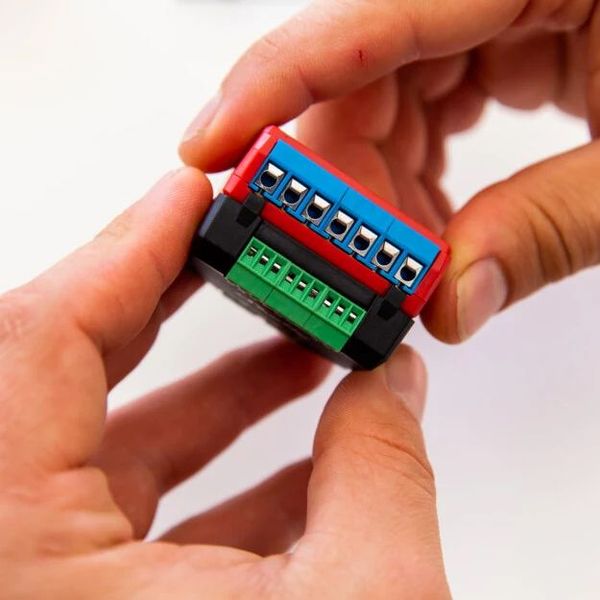

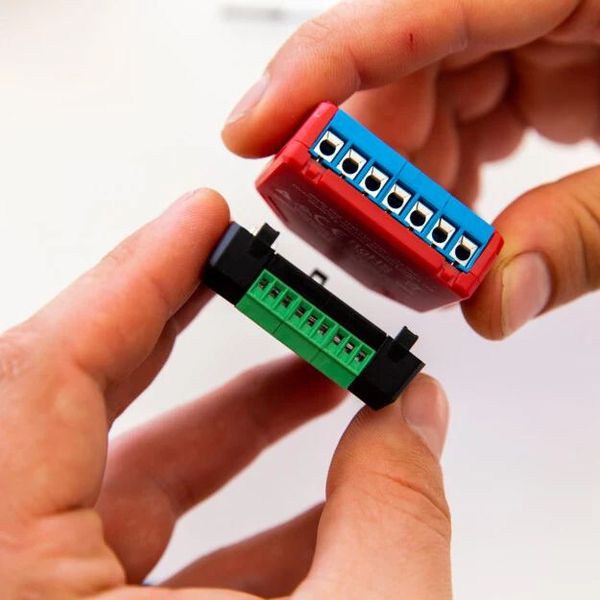

The compact Shelly Plus Add-on connects directly to a compatible Shelly device, which also supplies the power it needs, eliminating the need for a separate power supply. For instance, up to five DS18B20 temperature sensors can be connected to the module. Sensor data can be easily monitored and used in automations directly from a smartphone via the Shelly Smart Control app. The module does not have its own wireless connection, as data communication takes place through the connected Shelly device. Three-year (36 months) warranty!

Compatibility

• Shelly Plus series: Including Plus 1, Plus 1PM, Plus 2PM, and Plus i4
• Shelly Gen3 series: Including 1 Gen3, 1PM Gen3, 2PM Gen3, and DALI Dimmer Gen3
• Shelly Gen4 series: 1 Gen4, 1PM Gen4, and 2PM Gen4

Technical specifications

• Brand and model: Shelly Plus Add-on
• Intended use: Expanding sensor connectivity and automation capabilities of compatible Shelly devices
• Operating voltage: 3.3 V (supplied by a compatible Shelly device)
• Power consumption: Less than 0.5 W (without sensors)

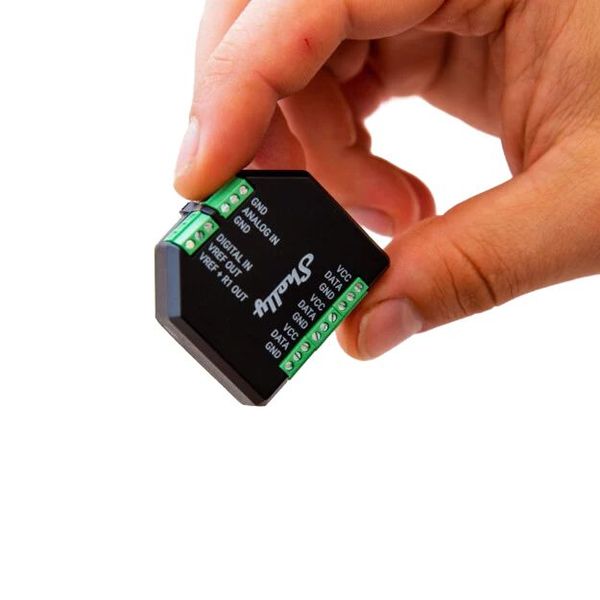

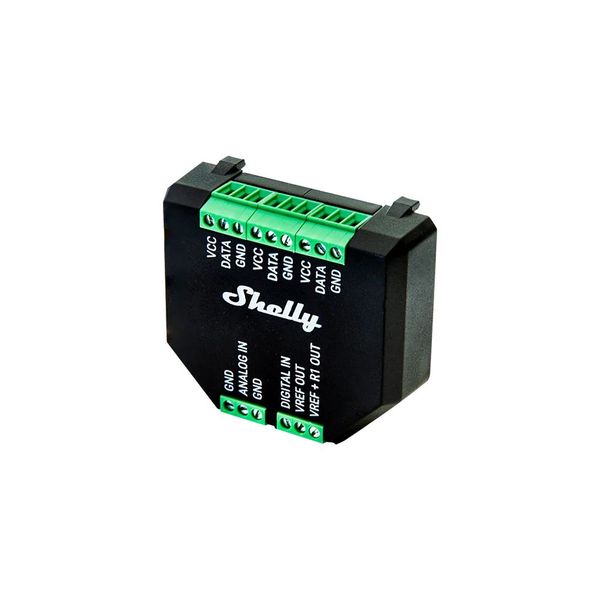

• Sensor connections:
  • 1 × analog input
  • 1 × digital input
  • 1-Wire interface for temperature and humidity sensors
• Supported sensors:
  • DS18B20 temperature sensors: Up to 5 pcs
  • DHT22 temperature and humidity sensor: 1 pc
  • NTC temperature sensors (10 kΩ, β = 4000 K)
  • Light sensors
  • PIR motion sensors
  • Soil moisture sensors
  • Ultrasonic distance sensors
  • Capacitive liquid level sensors
  • Sound sensors
  • Other compatible analog sensors (0–10 V)
• Analog input measurement range: 0–10 V
• Analog measurement accuracy: Better than ±5%
• Sensor supply current: Max. 10 mA (VCC)
• Wireless connectivity: No built-in wireless connection; operates through a compatible Shelly device
• Separate hub required: No, but a compatible Shelly device is required
• Operating temperature: -20 – +40 °C
• Permissible humidity: 30–70% RH
• Material: Plastic
• Color: Black
• Dimensions: 37 × 42 × 15 mm
• Control and monitoring: Through a compatible Shelly device, for example via the Shelly Smart Control app
• Other: Sensors not included; powered by a compatible Shelly device
• Warranty: 36 months
