Relay wiring harness LAZER 6-pin Superseal, 12V
Relay wiring kit for auxiliary lights equipped with Lazer's 6-pin Superseal connector, allowing easy connection of 1-2 lights. Includes everything needed for installation. Suitable for direct 12V power.
Product Faq
Relay wiring kit for auxiliary lights equipped with Lazer's 6-pin Superseal connector, allowing easy connection of 1-2 lights. Includes everything needed for installation. Suitable for direct 12V power.

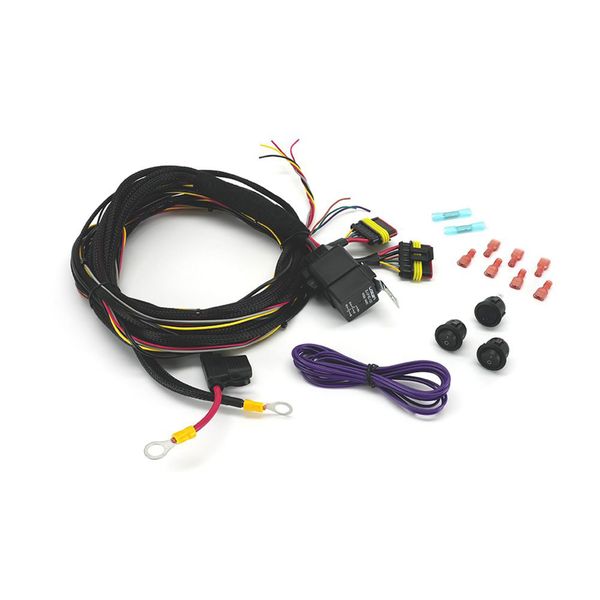

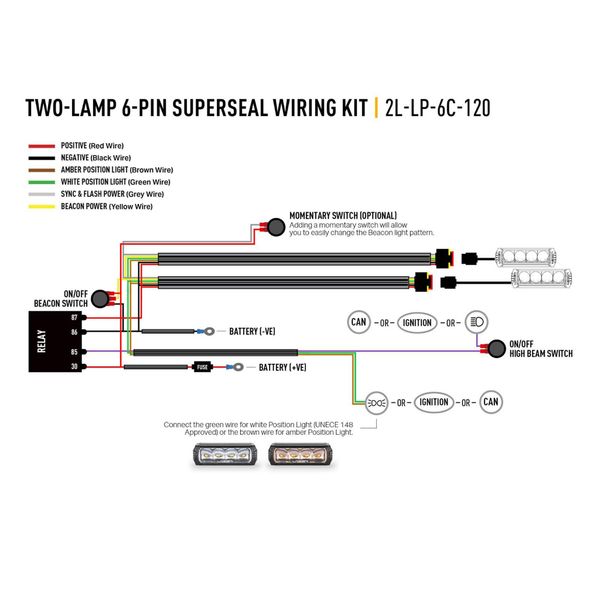

A relay wiring harness designed for connecting auxiliary lights with Lazer's 6-pin Superseal connector, which allows 1-2 lights with the 6-pin Superseal connector to be easily installed in a vehicle. The wiring harness contains everything needed for connection, and its 12V relay is encapsulated to be waterproof. The wiring harness has 2 outputs and its 30A fuse can withstand a maximum load of 360W. The wiring harness allows the connection of auxiliary light(s) alongside the vehicle's own high beams so that they are controlled together with the car's own high beams or with a separate switch. The switches are supplied with the wiring harness.
You can find compatible auxiliary lights below
Specifications
- Make and model: Relay wiring harness Lazer 6-pin Superseal, 12V
- Operating voltage: 12V
- Connector: 6-pin Superseal
- 2 outputs
- Fuse: 30 A (max. load 360W)
- Cable length: 120 cm
- Warranty: 12 months
