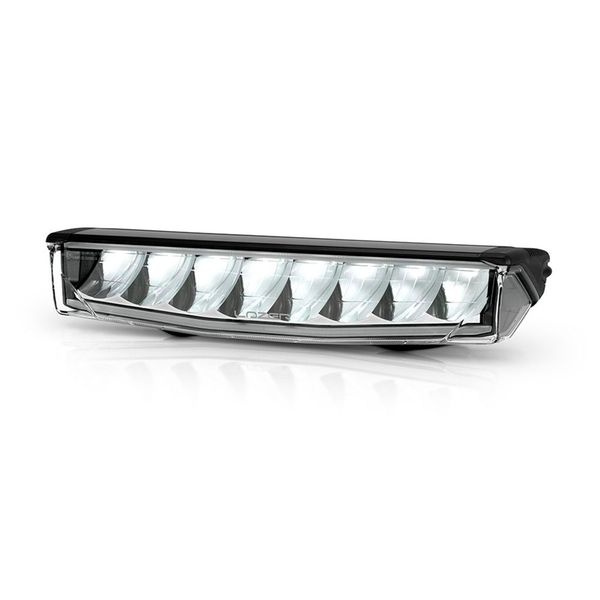

Led bar LAZER AIR-55 Beacon (Red position light) - Straight / 41 cm / 55W / Ref. 40

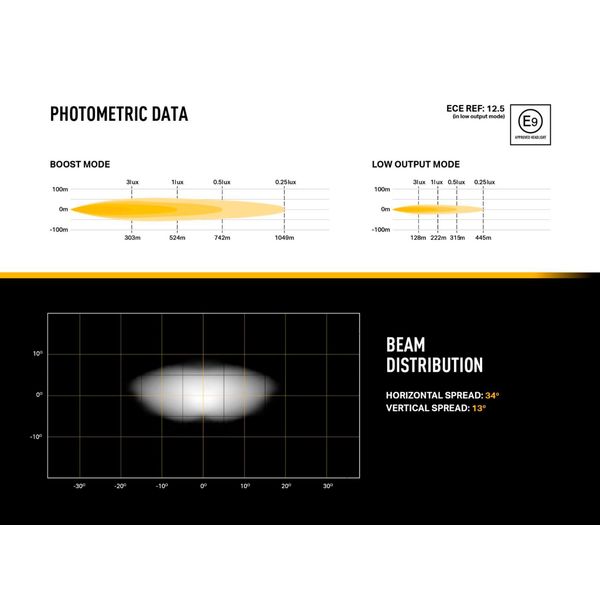

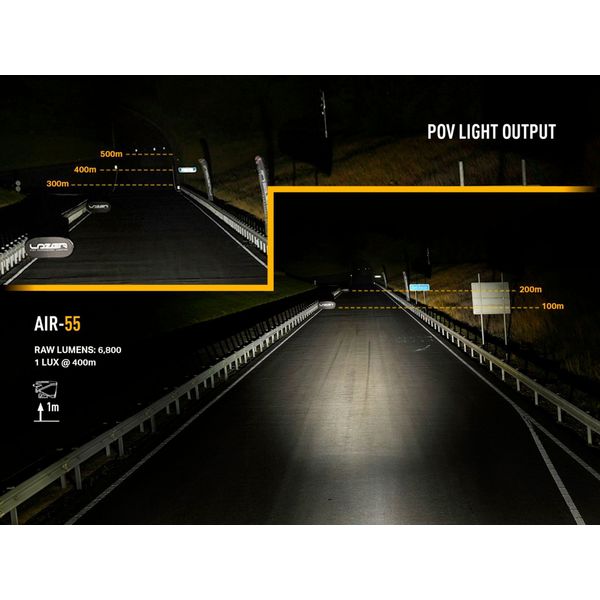

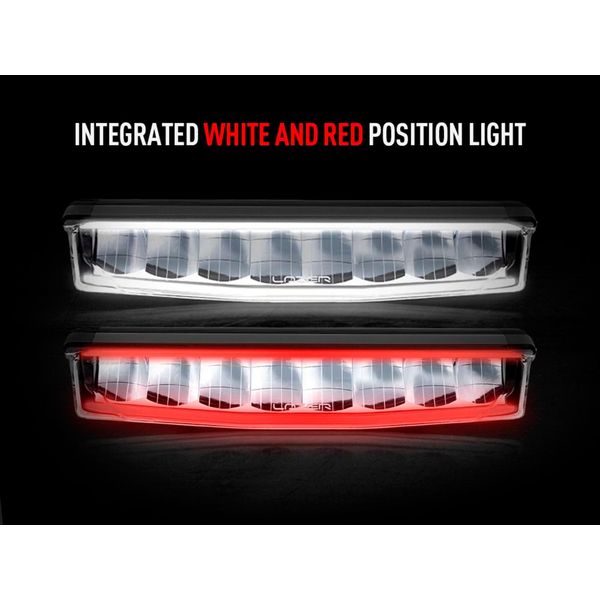

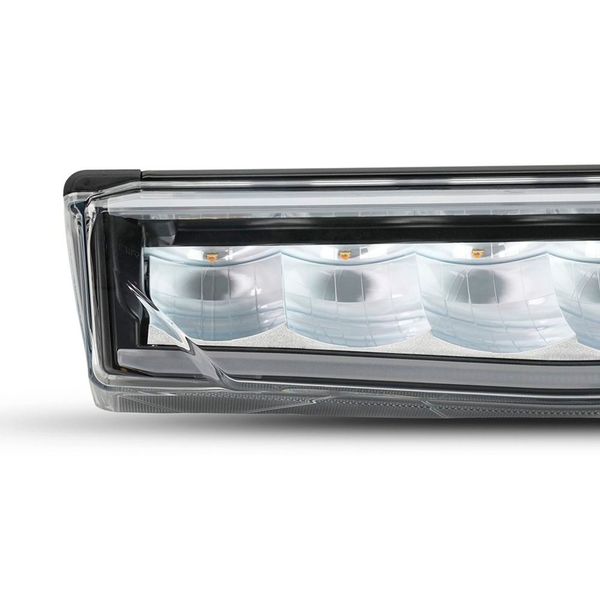

The Lazer AIR-55 is a small but powerful auxiliary light with a modern design, featuring an R65XA1-approved orange warning light, a traditional road-legal white light, an eye-catching red position light, and two power modes. Despite its size, the high-performance AIR-55 Beacon offers a light output of 6800 lumens and a beam reaching up to 524 meters @ 1 lux in the E-Boost mode intended for off-road use, according to the manufacturer. The panel's highly reflective vacuum-metallized reflector surfaces combined with high-performance LEDs create a pleasant combination beam pattern that illuminates both far ahead and wide to the sides of the road. The beam, optimized for heavy machinery, opens perfectly even when mounted high, and thanks to the separate beacon function, this auxiliary light bar is the perfect solution for all vehicles driving on highways, construction sites, and off-road.

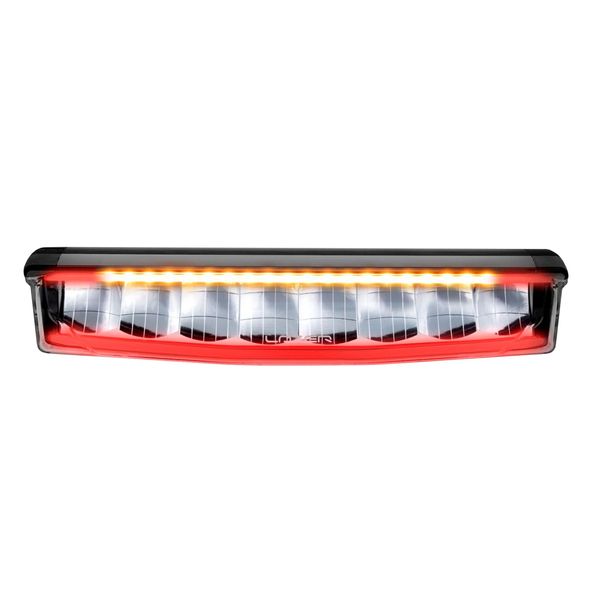

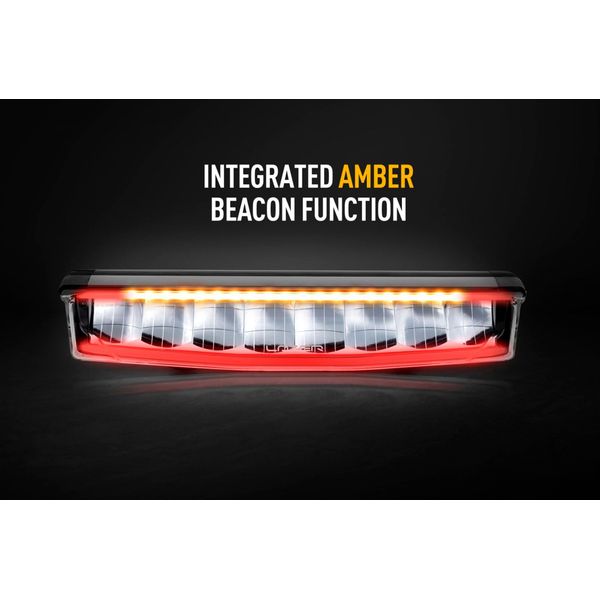

The AIR-55 Beacon's warning light is approved for road use according to the ECE R65XA1 standard, so it can be used normally in traffic. The warning light can be utilized, for example, in special transports, when a vehicle moves from the road to a construction site, or in traffic control. The bright orange beacon light illuminates stylishly at the top edge of the lens, ensuring it won't go unnoticed by anyone even in bright daylight. In addition to excellent lighting properties, the AIR-55 Beacon features a special Welcome mode, where the position light turns on and off dynamically, as well as a "Flash To Dim" function, which allows the driver to easily switch between road-legal and unlimited power modes while driving.

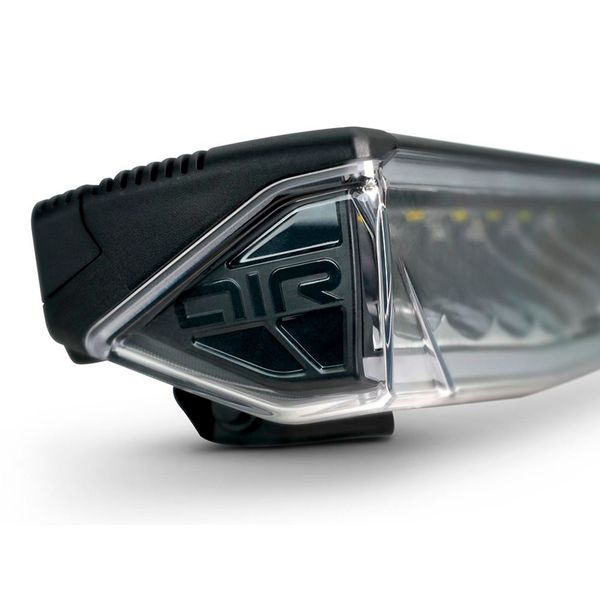

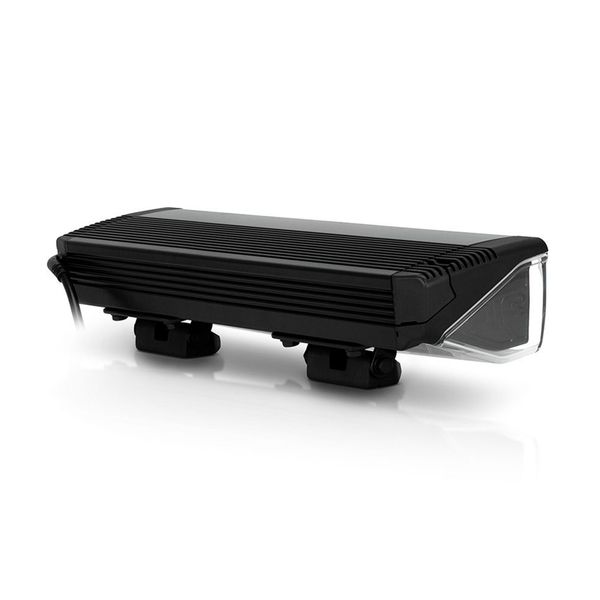

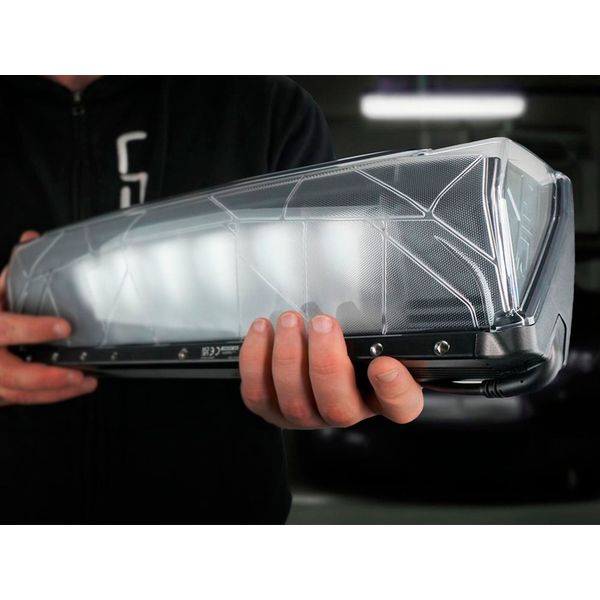

The eye-catching appearance of the AIR product family is largely due to their innovative monocoque lens, which extends beyond the front edge of the panel to the bottom and sides of the lamp. The part of the lens below the panel is textured, further emphasizing the lamp's unique look. The body, made of anodized aluminum, is finished with a high-quality powder coating, which guarantees excellent protection against corrosion and chemicals in addition to style. The lens, in turn, is made of practically unbreakable polycarbonate, and the panel is also completely water- and dustproof according to the IP68 rating. This is an excellent auxiliary light series in terms of lighting properties, appearance, and durability, suitable for daily use on any vehicle. Five-year (60 months) warranty!

Package Contents

• Lazer AIR-55 Beacon (Red position light)
• Power cable with 6-pin Superseal connector, 20 cm
• Centre Mount mounting system
• Wiring and installation instructions

Technical Specifications

• Brand and model: Lazer AIR-55 Beacon
• Intended use: As an auxiliary light for heavy vehicles / off-road vehicles
• Operating voltage: 10-32V
• Reference number: - (E-Boost) / 12.5 (Road legal mode)
• Manufacturer's reported power: 55 W
• Manufacturer's reported current consumption: 2.29A @ 24V
• Manufacturer's reported light output: 6800 lm (E-Boost)
• Manufacturer's reported range: 524 m @ 1 lux / 1048 m @ 0.25 lux (E-Boost)
• Manufacturer's reported color temperature: 5000K
• Connector: 6-pin Superseal
• Cable length: 20 cm

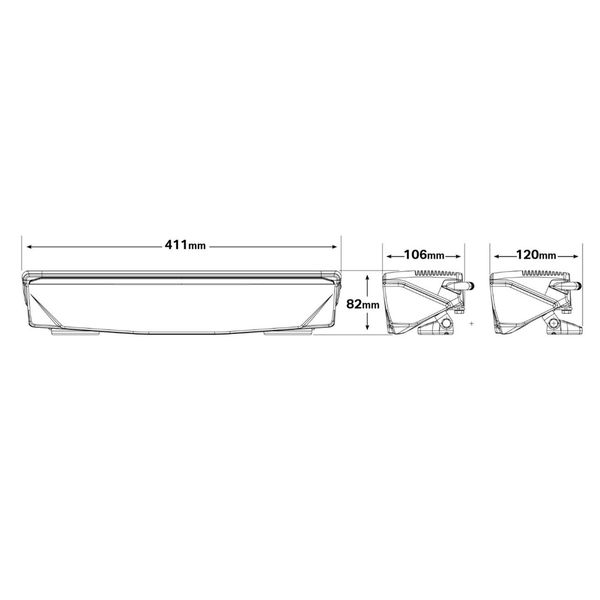

• Dimensions: 411 x 82 x 106 mm (Width x Height x Depth)
  • Height with bracket: 82-98 mm
• Weight: 1650 g
• Body: Anodized aluminum
• IP rating: IP68
• Approvals: EMC: ECE R10, R65XA1, R148, R149*
  • *Road legal approval does not apply to E-Boost mode
• Made in the United Kingdom
• Warranty: 60 months
