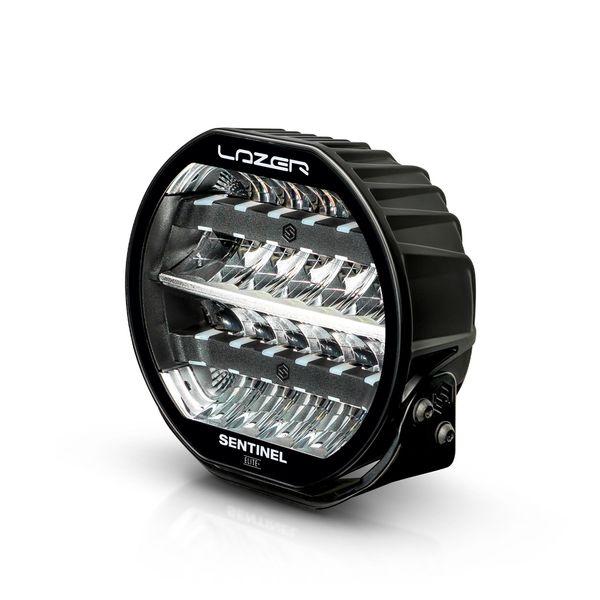

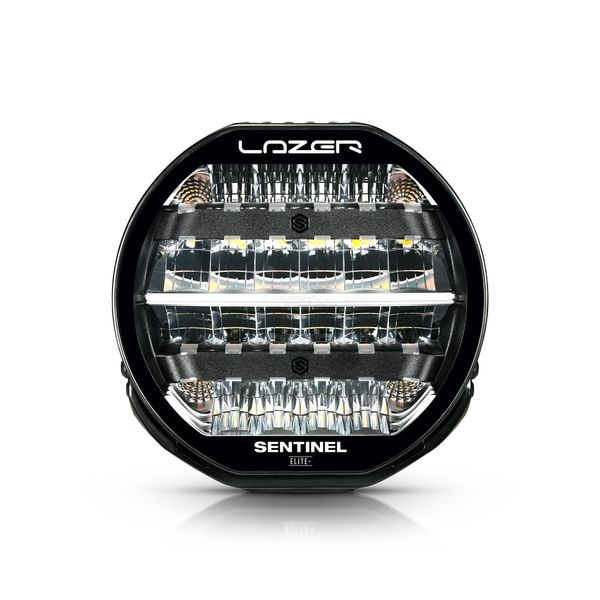

Auxiliary light LAZER Sentinel 9" Elite+ - Round / 23 cm / 300W / Ref. 5

The Lazer Sentinel 9" Elite+ is an extremely powerful round LED auxiliary light combining four lighting modes designed for different driving conditions. In the Elite+ model, the white light is complemented by yellow LEDs, improving versatility especially in challenging driving and weather conditions. In Boost mode, the white LEDs produce up to 22,210 lumens and a range of 985 metres @ 1 lux, according to the manufacturer. In Combo mode, the white and yellow LEDs operate simultaneously, increasing output to an impressive 29,500 lumens and extending the range beyond one kilometre to 1,002 metres @ 1 lux.

Snow/Fog/Dust mode uses only the yellow LEDs, with the beam directed slightly downward and toward the sides of the road to improve visibility in snow, fog, dust and heavy rain. In Combo mode, both white and yellow LEDs operate together to create a powerful beam with a slightly softer overall colour tone. The lighting modes are changed using a momentary switch, and holding the switch for two seconds activates the road-legal Transition Assist mode. In this mode, the light output is reduced, the beam is aimed lower and spread more toward the sides. This helps maintain good visibility as oncoming traffic approaches, right up until the high beams need to be switched off completely.

The Sentinel 9" Elite+ also features a position light that can illuminate in white or amber. With the Flash-To-Change function, the position light colour can be switched easily between white and amber, while the optional dynamic Welcome Mode provides two different start-up animations. Designed for demanding use, the light is IP68 rated. Five-year (60-month) warranty!

Basic delivery contents

• Lazer Sentinel 9" Elite+
• Mounting bracket
• Mounting hardware
• Wiring and installation instructions

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux
• 2 x Wiring Kit LAZER for Sentinel 9" Elite+ Auxiliary Light
• Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (3 pcs - Complete set)

• 3 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux HD, for 3 lights
• 3 x Wiring Kit LAZER for Sentinel 9" Elite+ Auxiliary Light
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (4 pcs - Complete set)

• 4 x Basic delivery contents
• Auxiliary light bracket Purelux HD, for 4 lights
• 4 x Wiring Kit LAZER for Sentinel 9" Elite+ Auxiliary Light
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Technical specifications

• Brand and model: Lazer Sentinel 9" Elite+

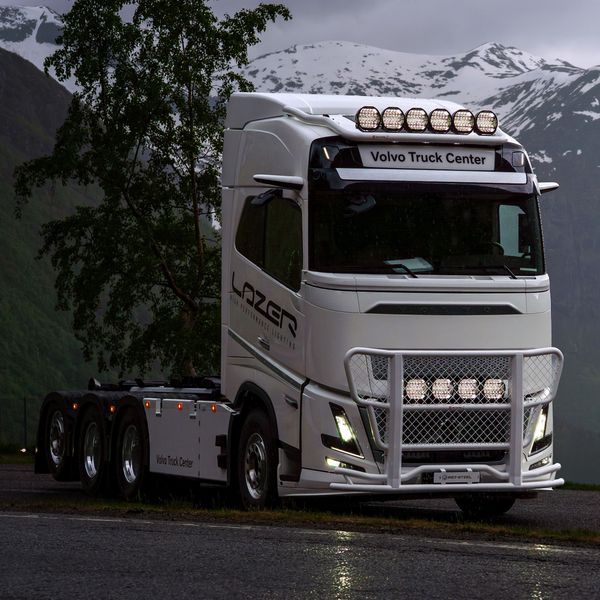

• Intended use: Auxiliary light for cars / work machines
• Operating voltage: 10–32 V
• Reference number: 5 (Transition Assist)
• Lighting modes:
  • Boost: white
  • Combo: white + yellow
  • Snow/Fog/Dust: yellow
  • Transition Assist: white, road legal
• Manufacturer-stated light output:
  • Boost: 22,210 lm
  • Combo: 29,500 lm
  • Snow/Fog/Dust: 7,290 lm
  • Transition Assist: 2,220 lm

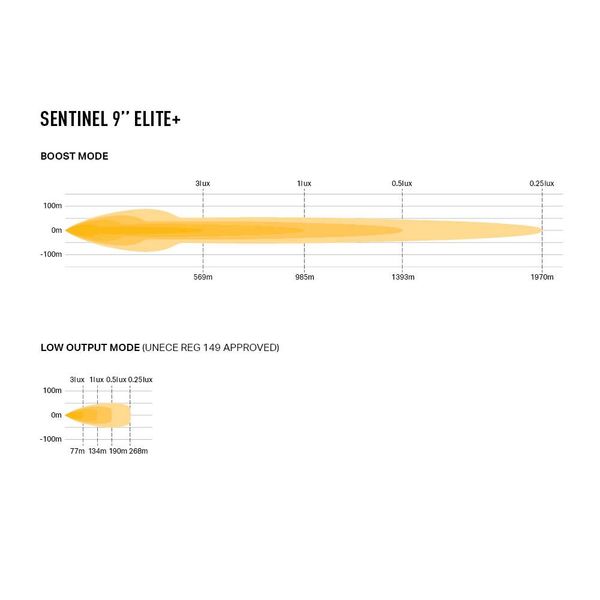

• Manufacturer-stated range @ 1 lux:
  • Boost: 985 m
  • Combo: 1,002 m
  • Snow/Fog/Dust: 200 m
  • Transition Assist: 134 m
• Manufacturer-stated power:
  • Boost: 210 W
  • Combo: 300 W
  • Snow/Fog/Dust: 80 W
  • Transition Assist: 20 W
• Manufacturer-stated colour temperature: 5000 K (white light)

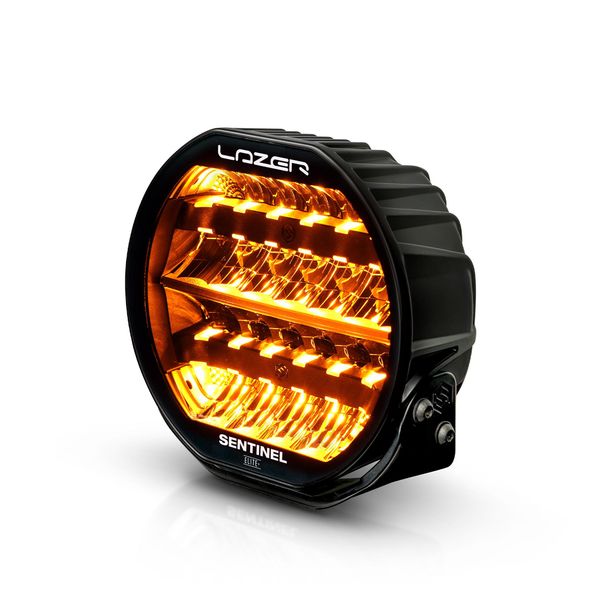

• Position light: White / amber
• Mounting: Mounting bracket
• Mounting adjustment range: ±3°
• Connector: 4-pin Aptiv

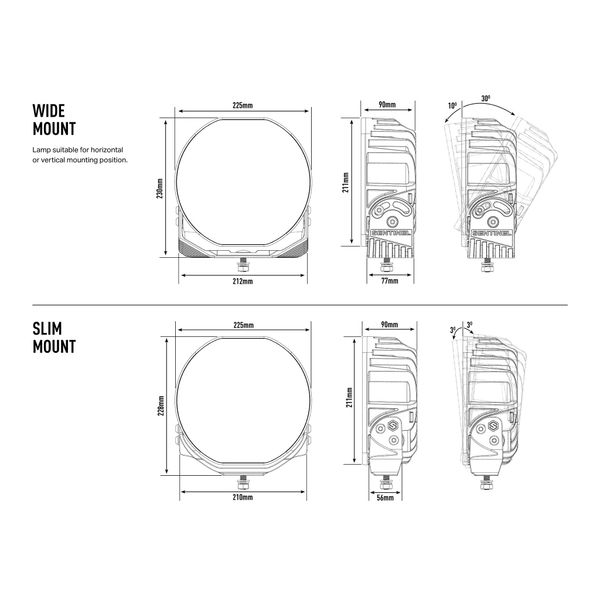

• Dimensions: 225 x 211 x 86 mm (Width x Height x Depth)
• Height with bracket: 228 mm
• Weight: 2400 g
• IP rating: IP68
• Approvals: ECE R10 (EMC), ECE R149, ECE R148
• Warranty: 60 months

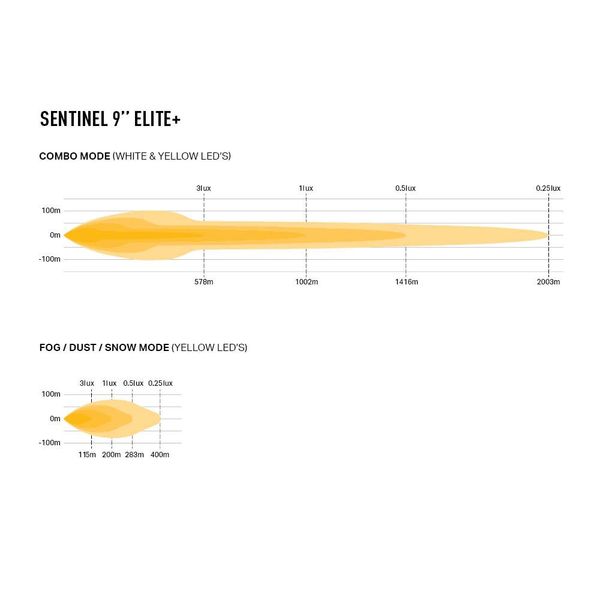

Lighting modes

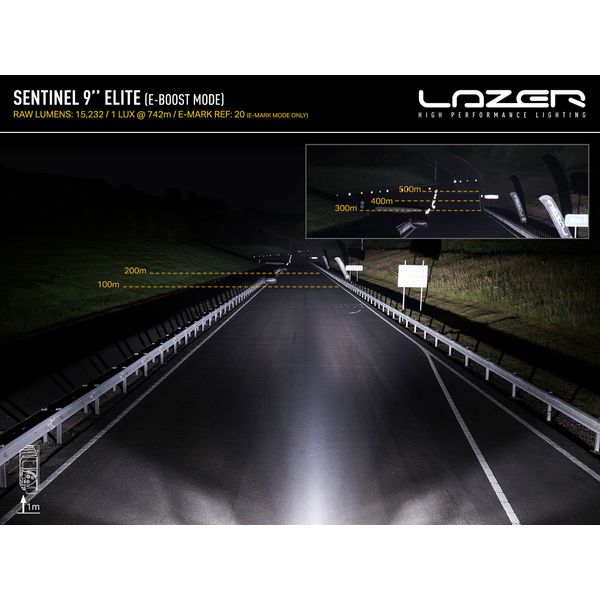

• Boost: White LEDs at full power. Light output 22,210 lm and range 985 m @ 1 lux.
• Combo: White and yellow LEDs illuminate simultaneously. Light output 29,500 lm and range 1,002 m @ 1 lux.
• Snow/Fog/Dust: Yellow LEDs only. The beam is directed slightly downward and toward the sides to improve visibility in snow, fog, dust and heavy rain. Light output 7,290 lm and range 200 m @ 1 lux.

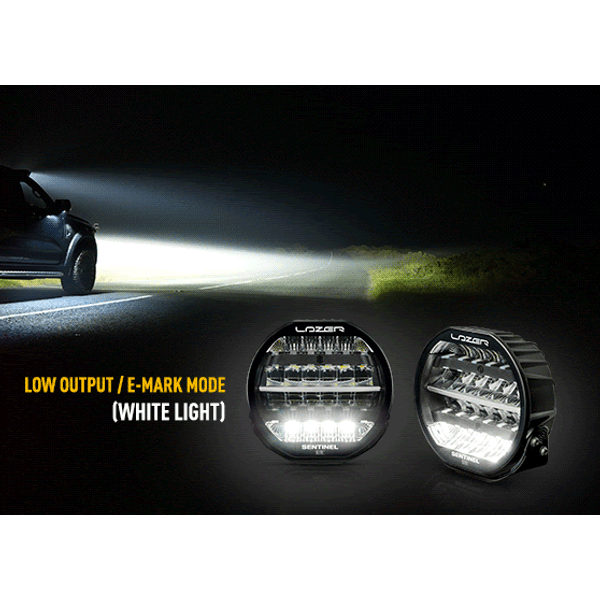

• Transition Assist: Road-legal, reduced-output lighting mode. Light output is reduced to 2,220 lumens, while the beam is aimed lower and spread more toward the sides. Range 134 m @ 1 lux.

The lighting modes are changed using a momentary switch. Pressing the switch cycles through the different lighting modes. Holding the switch for two seconds switches the light directly to the road-legal Transition Assist mode.

Installation guide

Manufacturer's user manual (PDF) Manufacturer's function instructions (PDF)
