Auxiliary light LAZER Sentinel 7" Elite PL2 - Round / 18 cm / 120W / Ref. 12.5

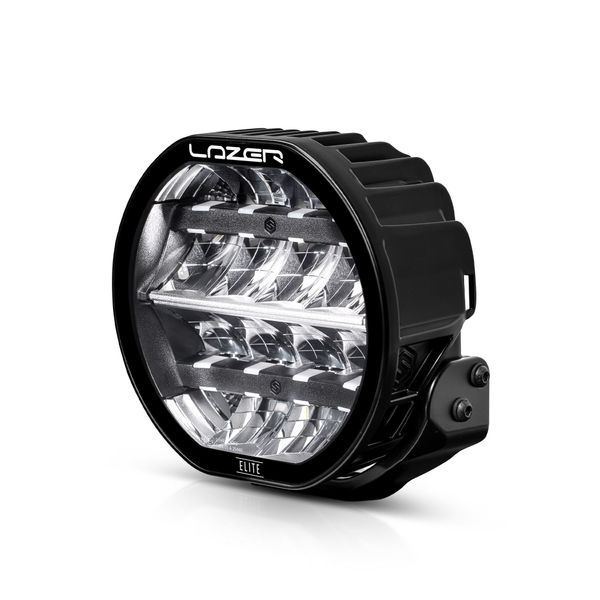

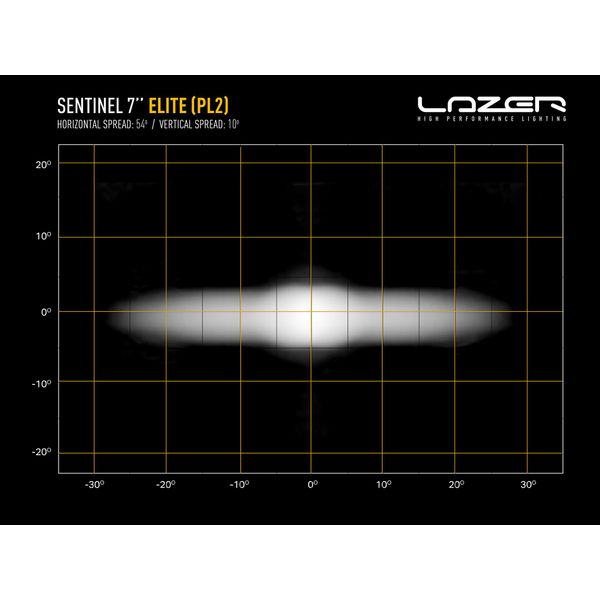

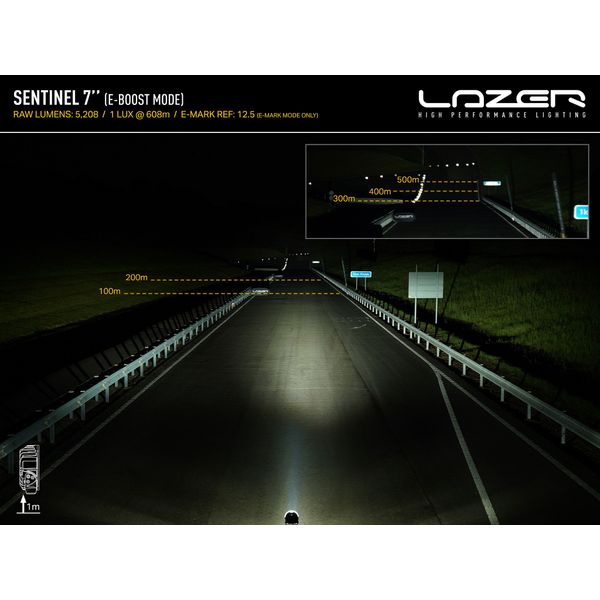

The Lazer Sentinel 7" Elite PL2 is a powerful round LED auxiliary light in a compact 7-inch format, with a dark design that gives the light a refined appearance. Its 24 high-power LEDs produce up to 13,464 lumens and a range of 721 metres @ 1 lux in Boost mode, according to the manufacturer. The beam spreads 54° horizontally, providing effective illumination not only at long range but also toward the sides of the road. The 5000 K colour temperature produces a natural-looking light that helps distinguish road surface contours, obstacles and other details clearly, even during long drives.

The Sentinel 7" Elite PL2 uses Lazer's dual-output E-Boost technology, providing both a full-power Boost mode and a road-legal Low Output / E-Mark mode. The modes can be switched quickly using the Flash-to-Dim function by briefly switching the high beams off and back on. This allows the light output to be reduced when needed, for example to minimise glare from reflective road signs, without the need for separate controls. The light can also be configured to operate continuously in either full-power or reduced-output mode.

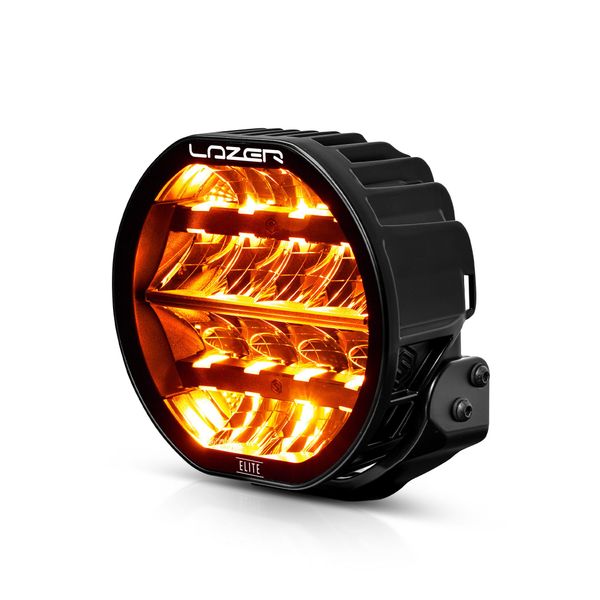

The PL2 model features a dynamic position light that can be set to white or amber. In addition, the light includes an optional dynamic Welcome Mode function. At start-up, the position light can be programmed either to brighten gradually or to alternate between white and amber during the animation. Designed for demanding use, the auxiliary light is IP68 rated, and its polycarbonate lens offers excellent resistance to impacts and scratches. Five-year (60-month) warranty!

Basic delivery contents

• Lazer Sentinel 7" Elite PL2
• Slim mounting bracket
• Mounting hardware
• Lazer stone guard
• Wiring and installation instructions

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux
• Relay cable set 12V LAZER lights, with Position light
• Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (3 pcs - Complete set)

• 3 x Basic delivery contents
• Auxiliary light bracket for EU licence plate, Purelux HD, for 3 lights
• 2 x Relay cable set 12V LAZER lights, with Position light
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Delivery contents (4 pcs - Complete set)

• 4 x Basic delivery contents
• Auxiliary light bracket Purelux HD, for 4 lights
• 2 x Relay cable set 12V LAZER lights, with Position light
• 2 x Adjustable support bracket pair Purelux Stabilizer
  • The support brackets can be attached, for example, to the cooling fins of the light

Technical specifications

• Brand and model: Lazer Sentinel 7" Elite PL2
• Intended use: Auxiliary light for cars / work machines
• Operating voltage: 10–32 V
• Reference number: 12.5 (Low Output / E-Mark)
• Power modes:
  • Boost: full power
  • Low Output / E-Mark: road legal
• Manufacturer-stated light output:
  • Boost: 13,464 lm
  • Low Output / E-Mark: 2,690 lm

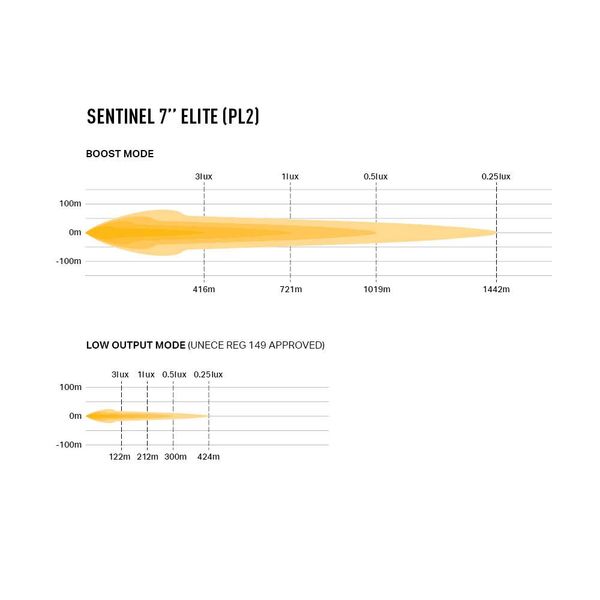

• Manufacturer-stated range @ 1 lux:
  • Boost: 721 m
  • Low Output / E-Mark: 212 m
• Manufacturer-stated power:
  • Boost: 120 W
  • Low Output / E-Mark: 18 W
• Manufacturer-stated colour temperature: 5000 K
• Position light: White / amber
• Mounting: Slim mounting bracket
• Mounting adjustment range: ±6°
• Connector: 3-pin Superseal

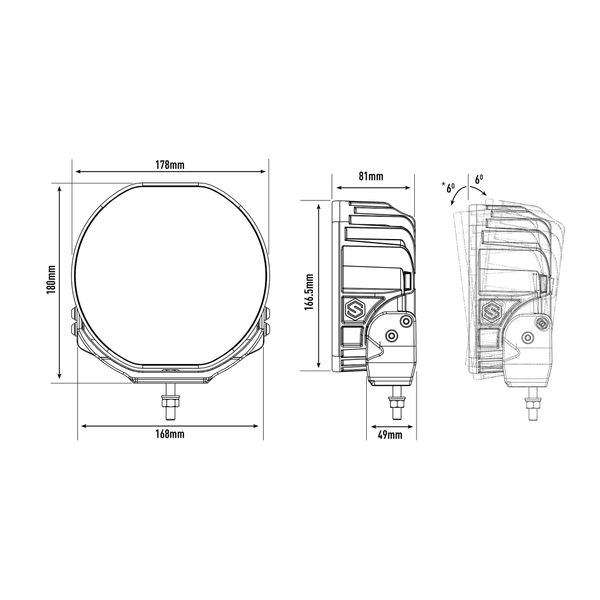

• Dimensions: 178 x 166.5 x 81 mm (Width x Height x Depth)
• Height with bracket: 198 mm
• Weight: 1500 g
• IP rating: IP68
• Approvals: ECE R10 (EMC), ECE R149, ECE R148
• Warranty: 60 months

Power modes

• Boost: White LEDs at full power. Light output 13,464 lm and range 721 m @ 1 lux.
• Low Output / E-Mark: Road-legal high beam mode. Light output 2,690 lm and range 212 m @ 1 lux.

Boost and Low Output / E-Mark modes are switched using the Flash-to-Dim function, allowing the power mode to be changed quickly while driving.

Installation guide

Manufacturer's user manual (PDF) Manufacturer's function instructions (PDF)
