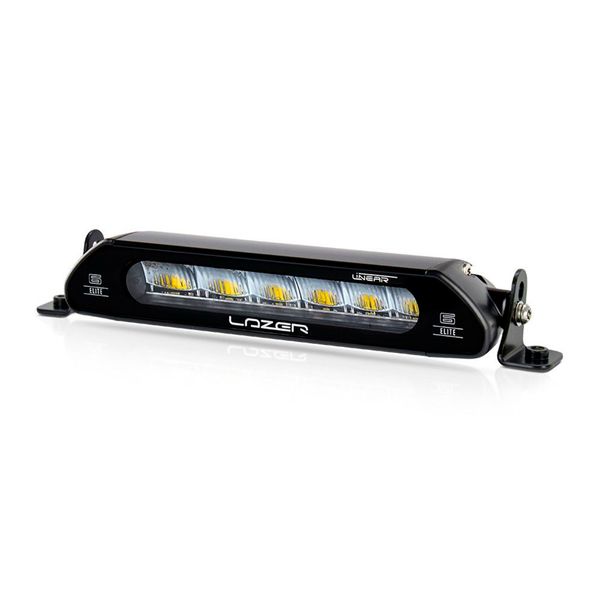

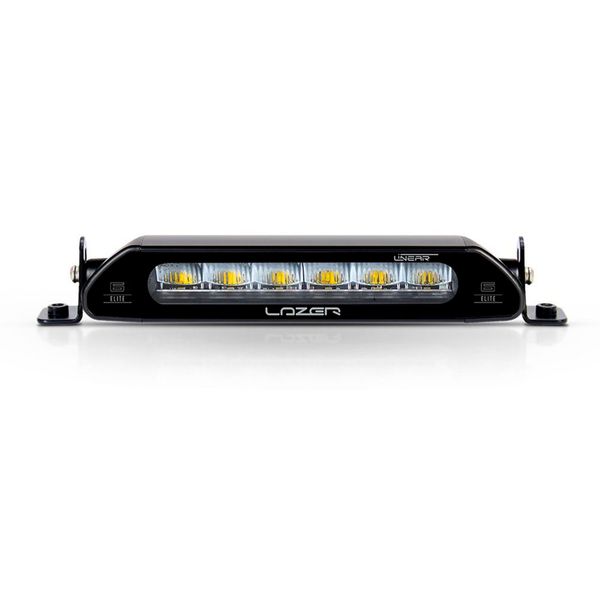

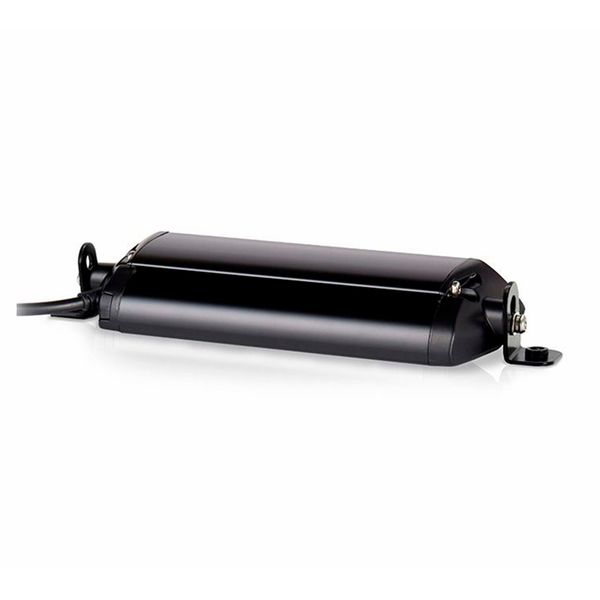

Led bar LAZER Linear 6 Elite (Yellow) - Straight / 23 cm / 42W / Off-Road

The Linear 6 Elite Yellow brings a yellow beam optimized for challenging road conditions to the manufacturer's super popular, stylish and aerodynamic Linear 6 Elite auxiliary light panel. Like other lights in the Linear series, this panel also combines amazing performance with a truly agile and graceful design, which together allow for maximum visibility without major changes to the front of the vehicle! According to the manufacturer, one small panel produces up to 4320 lumens of light output and a high-quality combined beam that reaches up to 268 meters @ 1 lux. Due to its unique design, this power pack is well suited for the front of even smaller cars and tight installation locations, as the panel is only 232 mm long and weighs only 495 grams!

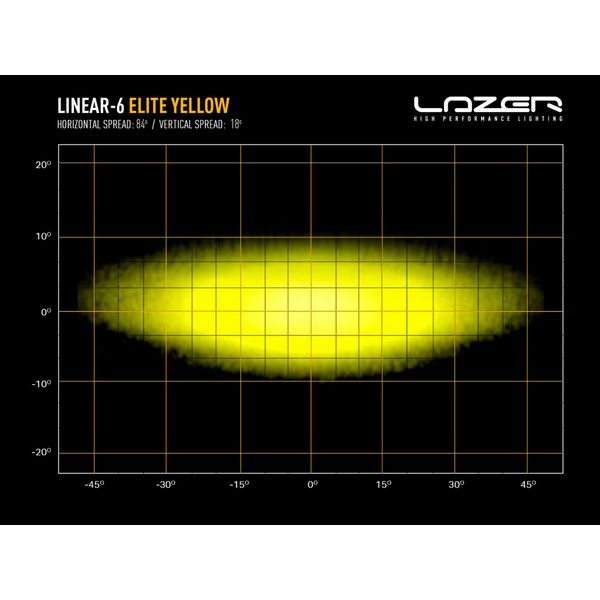

The Linear 6 Elite's incredible size-to-power ratio is explained by the panel's 12 highly efficient "premium bin" LEDs and highly reflective, vacuum-metallized optics, developed using the latest CAD design and light simulation software. The tightly defined vertical light pattern cuts out unnecessary light, and makes the lamp shine exactly where it is needed most - straight ahead and wide to the sides of the road.

As is customary with Lazer's luminaires, this model is also made in the UK from durable materials and high-quality components, thanks to which the functionality of the light does not need to be questioned even in extreme conditions after installation. The innovative control modulation built into the luminaire regulates the light output in extreme environmental and temperature conditions, which protects the electronics from thermal damage and ensures that the luminaire operates at the same level as the first time it was used, even years later. Five-year (60-month) warranty!

Basic delivery content

• Lazer Linear 6 Elite (Yellow)
• Anti-theft brackets
• Connection and installation instructions
• End legs
  • Note! The lamp does not include width-adjustable rail brackets. If desired, it can be purchased separately here: Rail bracket, Lazer.

Delivery content (2 pcs - Complete set)

• 2 x Basic delivery contents
• 2 x Rail mounts for extra light bar, Lazer
• Lazer relay wiring kit
• Extra light holder for mounting on registration plate

Delivery content (1 pc - Complete set / End fixing)

• Basic delivery content
• Relay cable set Purelux AMP 2-pin Superseal, 12V
• Extra light holder Purelux Twisted Single Bracket

Specifications

• Brand and model: Lazer Linear 6 Elite (Yellow)
• Intended use: As an additional light in cars / work machines
• LEDs: 12 x 3W
• Operating voltage: 10-32 V
• Reference number: - (NOT E-approved)
• Manufacturer's declared power: 42W
• Manufacturer's declared luminous efficacy: 4320 lm

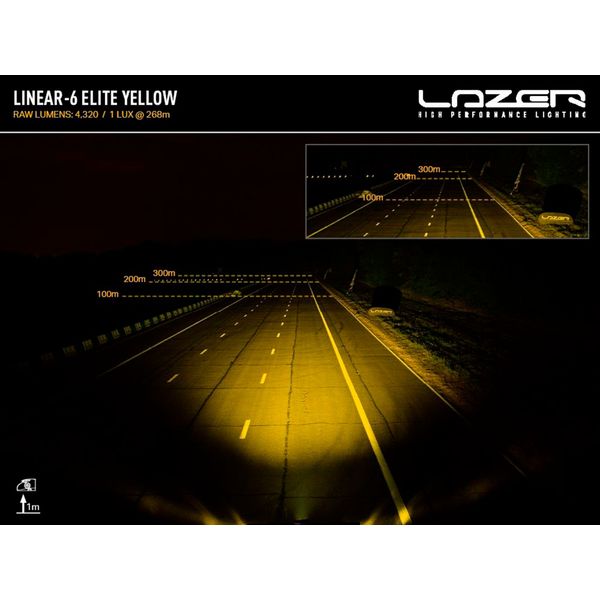

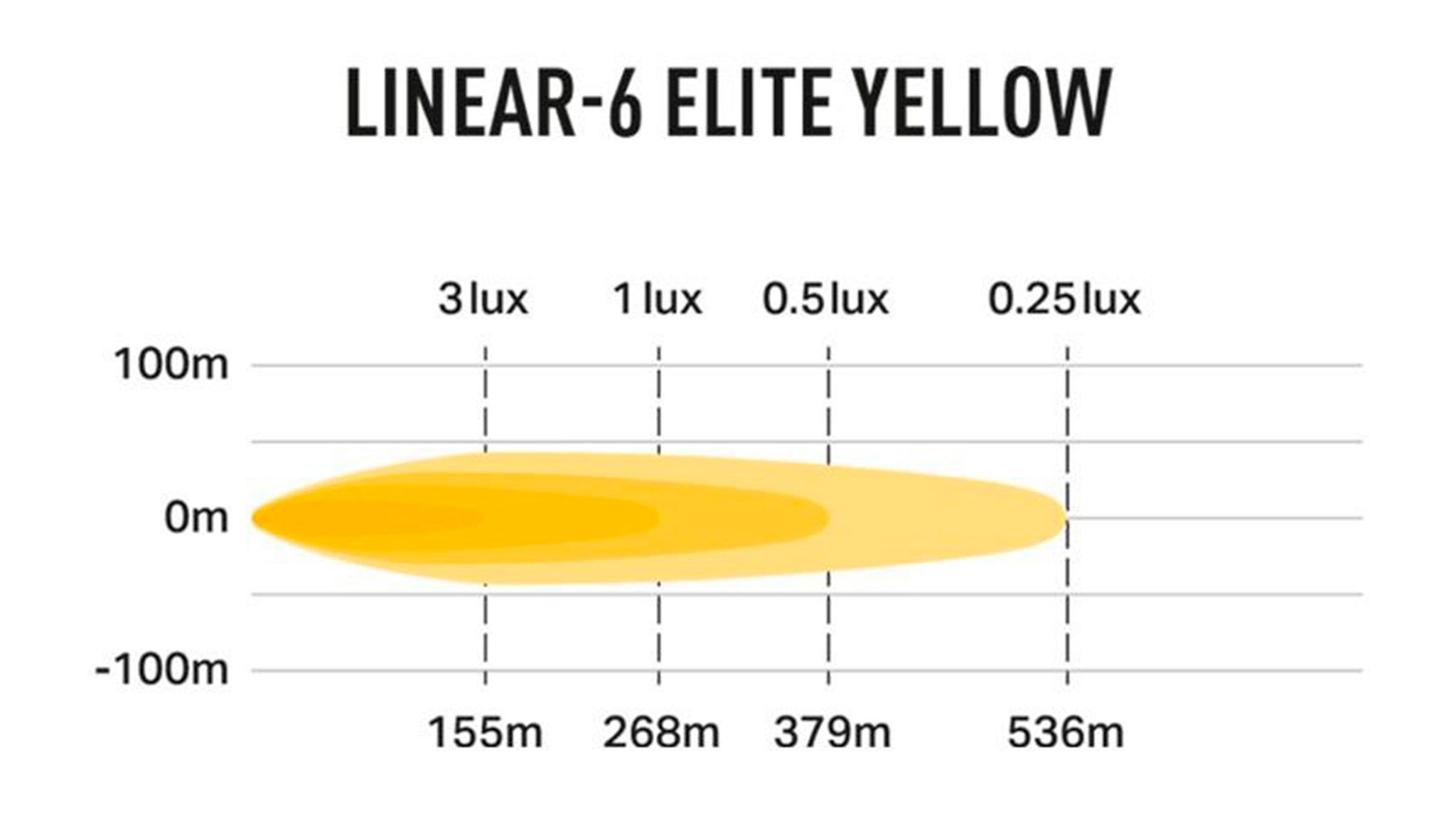

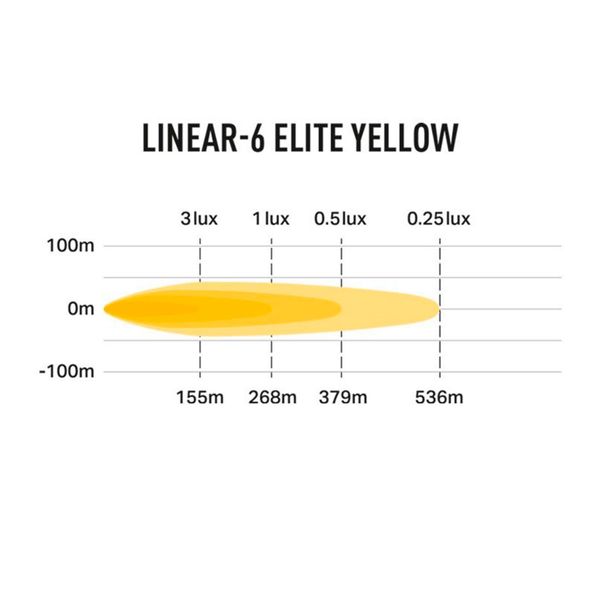

• Manufacturer's stated range: 268 m @ 1 lux / 379 m @ 0.25 lux
• Attachment: End feet
• Connector: AMP 2-pin

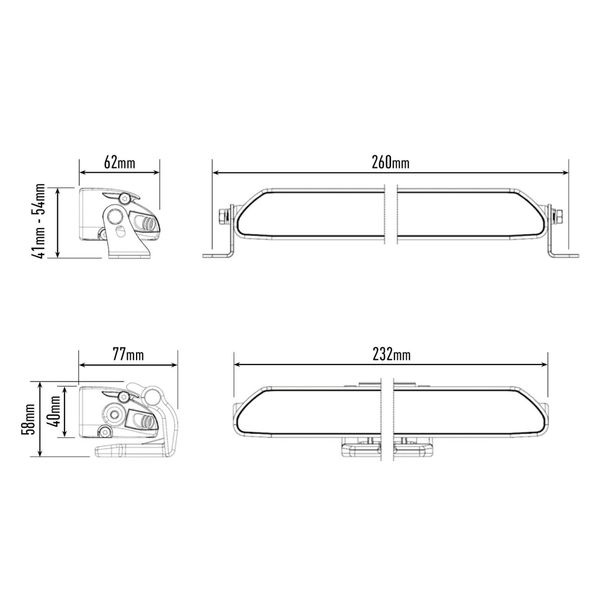

• Dimensions: 232 x 40 x 62 mm (Width/Height/Depth)
• Weight: 495g
• Material: Aluminum frame, polycarbonate lens
• IP rating: IP68
• Approvals: EMC: ECE R10
• Country of manufacture: United Kingdom
• Warranty: 60 months
  • Polycarbonate lens with lifetime warranty

Installation guide

You can find the manufacturer's installation and connection instructions (EN) by clicking here (opens in a new window).
