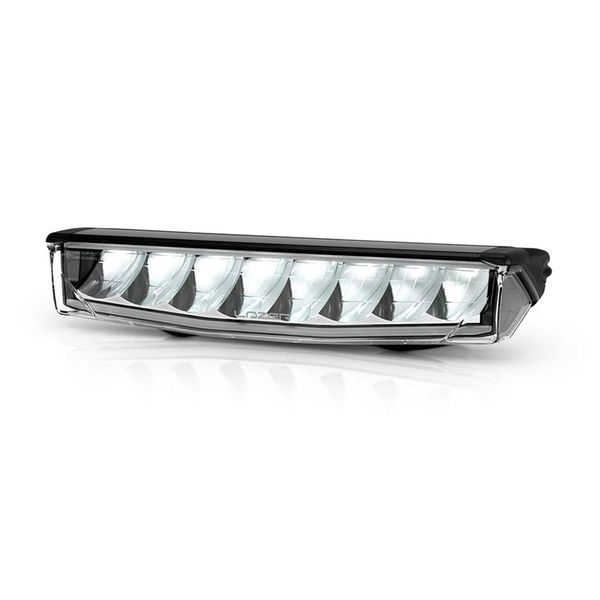

Auxiliary light LAZER AIR-55 Beacon (Blue position light) - Straight / 41 cm / 55W / Ref. 40

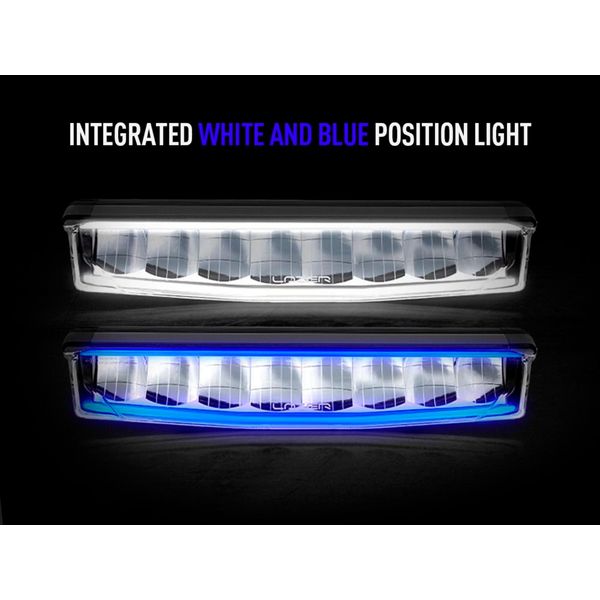

Lazer AIR-55 is a small but powerful auxiliary light representing modern design, featuring an R65XA1-approved amber warning light, traditional road-legal white light, as well as an eye-catching blue position light and two power modes. High-performing for its size, the AIR-55 Beacon offers, according to the manufacturer, a light output of 6800 lumens and a beam reaching up to 524 meters @1 lux in the E-Boost mode intended for off-road use. The panel's highly reflective vacuum-metallized reflector surfaces combined with high-performance LEDs create a pleasant combo beam pattern that illuminates both far ahead and wide onto the roadsides. The beam, optimized for heavy-duty vehicle use, opens perfectly even when mounted high, and thanks to the separate beacon function, this auxiliary light bar is the perfect solution for all vehicles operating on both highways, construction sites, and off-road.

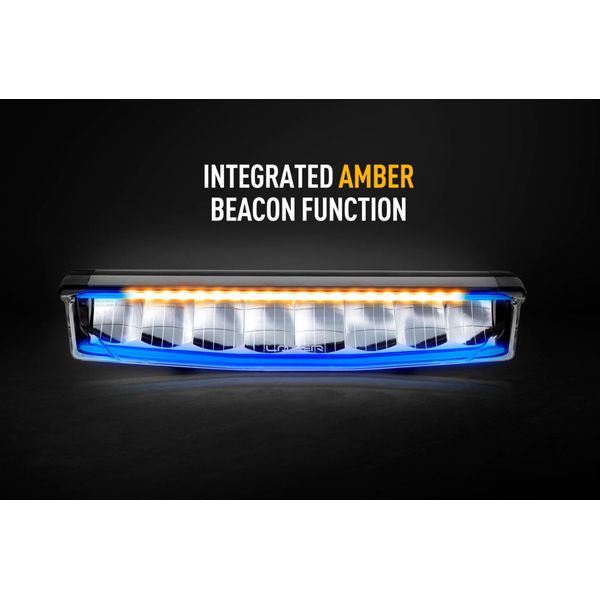

The AIR-55 Beacon's warning light is approved for road use according to the ECE R65XA1 standard, so it can be used normally in traffic. The warning light can be utilized, for example, in special transports, when a vehicle moves from the highway to a construction site, or in traffic control. The bright amber beacon light illuminates stylishly at the top edge of the lens, ensuring it won't go unnoticed by anyone even in bright daylight. In addition to excellent lighting properties, the AIR-55 Beacon features a special Welcome mode, where the position light turns on and off dynamically, as well as a so-called "Flash To Dim" function, allowing the driver to easily switch between the road-legal and unrestricted power modes while driving.

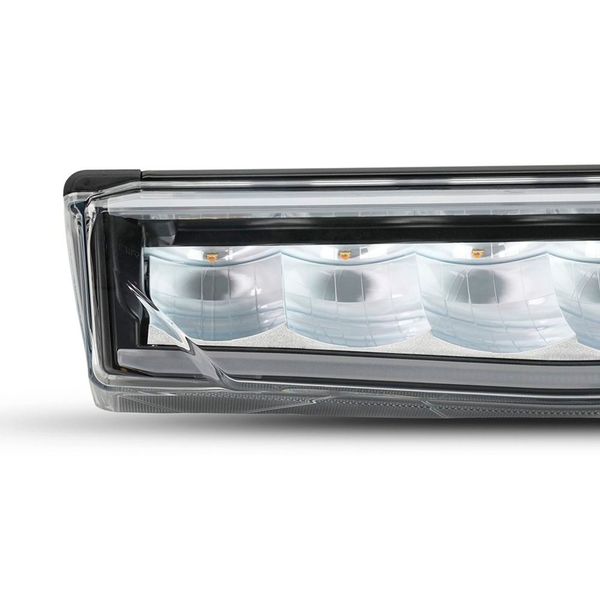

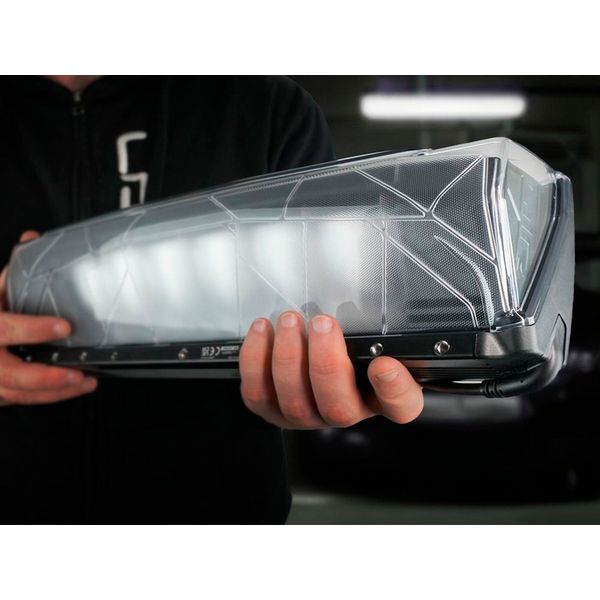

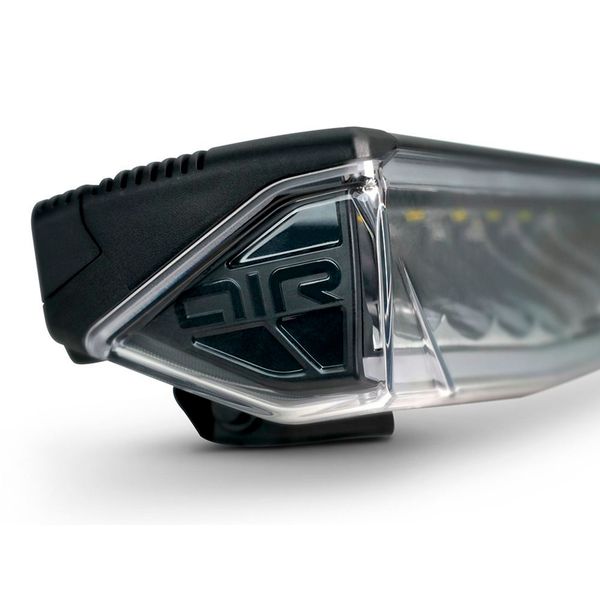

The eye-catching appearance of the AIR product family is largely due to their innovative monocoque lens, which extends beyond the front edge of the panel to the bottom and sides of the light. The portion of the lens remaining below the panel is textured, further emphasizing the light's unique look. The housing, made of anodized aluminum, is finished with a high-quality powder coating, which guarantees excellent protection against corrosion and chemicals in addition to style. The lens, in turn, is made of virtually unbreakable polycarbonate, and the panel is also completely water- and dustproof according to the IP68 rating. This is therefore an excellent auxiliary light series in terms of lighting properties, appearance, and durability, suitable for daily use on any vehicle. Five-year (60 months) warranty!

Package Contents

• Lazer AIR-55 Beacon (Blue position light)
• Power cable with 6-pin Superseal connector, 20 cm
• Centre Mount mounting system
• Connection and installation instructions

Technical specifications

• Brand and model: Lazer AIR-55 Beacon
• Intended use: As an auxiliary light for heavy-duty vehicles / off-road vehicles
• Operating voltage: 10-32V
• Reference number: - (E-Boost) / 12.5 (road legal mode)
• Manufacturer's stated power: 55 W
• Manufacturer's stated current consumption: 2.29A @ 24V
• Manufacturer's stated light output: 6800 lm (E-Boost)

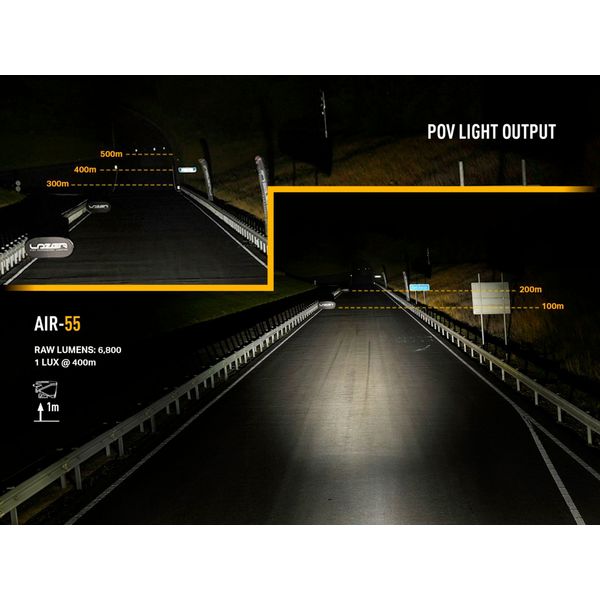

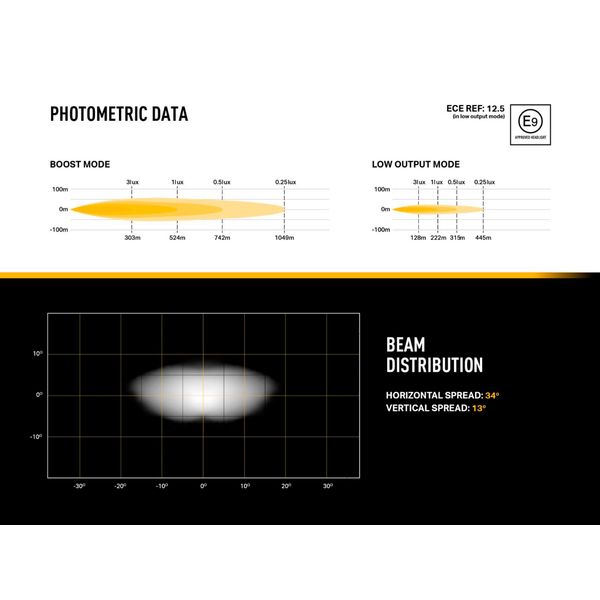

• Manufacturer's stated range: 524 m @ 1 lux / 1048 m @ 0.25 lux (E-Boost)
• Manufacturer's stated color temperature: 5000K
• Connector: 6-pin Superseal
• Cable length: 20 cm

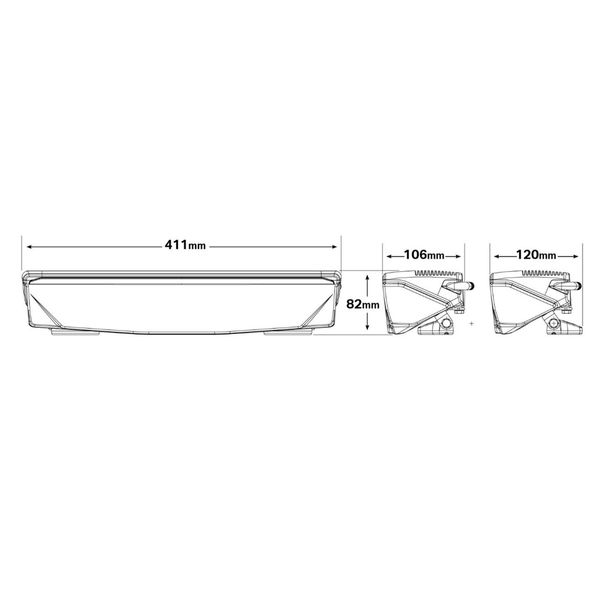

• Dimensions: 411 x 82 x 106 mm (Width x Height x Depth)
  • Height with bracket: 82-98 mm
• Weight: 1650 g
• Body: Anodized aluminum
• IP rating: IP68
• Approvals: EMC: ECE R10, R65XA1, R148, R149*
  • *Road legal approval does not apply to E-Boost mode
• Made in the United Kingdom
• Warranty: 60 months

Installation Guide

General connection and installation instructions can be found here: Auxiliary light installation guide. The link provides the most common installations, e.g., using a relay wiring harness, as well as a guide for installing auxiliary lights to the CAN bus.
