Auxiliary light set STRANDS Ford Transit Courier (2024+)

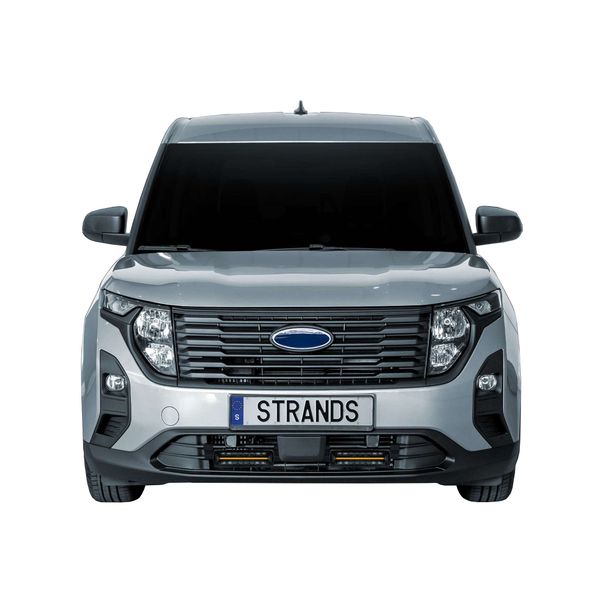

A complete, all-in-one make and model specific auxiliary light package for 2024 and newer Ford Transit Courier vans. With this set, 2 Strands Siberia XP DR 8" or Siberia XPA DR 8" auxiliary light panels can be neatly installed on the front grille of the above-mentioned item so that the panel remains stylishly flush with the front grille. The installation does not disturb the appearance of the vehicle, but rather improves it even more, and it is safer to drive with the help of additional lights. You can find more information about additional lights below!

In addition to the additional light panels, the package includes all the brackets and screws needed for installation, a ready-made wiring harness, and installation and connection instructions. The brackets made of stainless steel and a strong aluminum alloy hold the panel firmly in place, even if the vehicle is constantly at the mercy of the weather. UV radiation, severe frost, or constant rain do not weaken the structures of the brackets or the additional light itself, but the installation remains neat and safe year after year.

Note! In many new cars, especially those equipped with LED and Xenon lights, the lights are controlled via the so-called CAN bus. For this reason, the lights no longer have their own power cable. If there is no cable in the trunk from which the excitation current can be tapped for the additional light, the excitation will have to be taken from the car's CAN bus. Installing an additional light on the CAN bus is slightly different from the traditional installation, and this connection requires a separate relay, such as the XBB - OBD Dongle & PowerUnit. If you suspect that you need a CAN relay for your connection, the car's importer or dealer will certainly help you with this.

Strands Siberia XP DR 8"

Siberia XP DR 8" is a small auxiliary light panel with two different power modes and a wide combination beam. According to the manufacturer, the Xperience power mode, intended for off-road use, produces up to 4300 lumens of light output and a beam that can reach 544 meters @ 1 lux. The more moderate power mode, intended for road traffic, has a light output of 1275 lumens and a range of 300 m @ 1 lux. In addition, the panel is equipped with a color temperature of 5700 Kelvin, which maintains a good state of alertness and maximizes sharpness and accuracy. The panel also has a white and yellow parking light.

• Light output: 4300 lm (Xperience) / 1275 lm (Road mode)
• Range: 544 m @ 1 lux (Xperience) / 300 m @ 1 lux (Road traffic mode)
• Reference number: 20
• Light dimensions: 208 x 76 x 723 mm (Width x Height x Depth)

Strands Siberia XPA DR 8"

Strands Siberia XPA DR 8" is a small but powerful auxiliary light panel that offers both performance and top quality in a stylish package. Equipped with a combination beam, the XPA DR 8" produces, according to the manufacturer, a light output of 2002 lumens and a beam of up to 435 meters @ 1 lux, which is excellent performance for a panel of this size. In addition, the panel is equipped with a color temperature of 5700 Kelvin, which works more effectively than cooler tones even in poor conditions, such as snow and rain. The panel also has a white and orange parking light.

• Light output: 2002 lm
• Range: 435 m @ 1 lux
• Reference number: 2 x 45
• Light dimensions: 205 x 76 x 71.6 mm (Width x Height x Depth)

Delivery content

• 2 x additional light panels of your choice
• Relay wiring harness
• Brand and model-specific mounts
• Installation and connection instructions

Installation guide

You can find the manufacturer's connection and installation instructions (EN) by clicking here (opens in a new window).
