Additional light set Ford Ranger Platinum (2023+), Lazer Triple-R 750

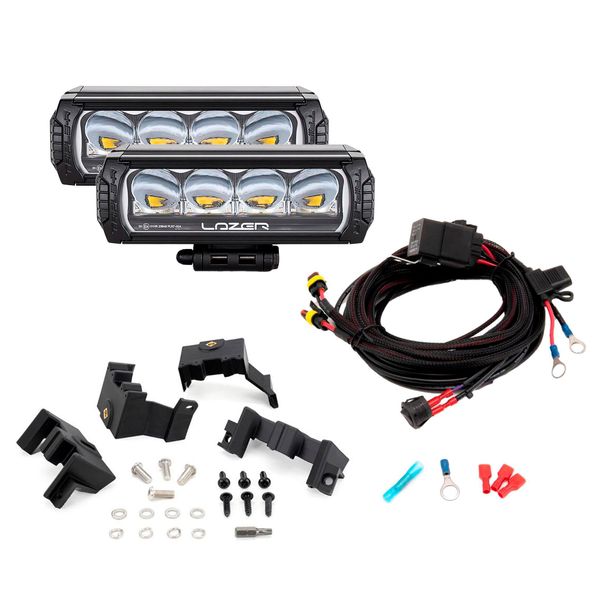

The package includes two Lazer Triple-R 750 GEN2 auxiliary light panels of your choice, all the necessary brackets and screws for installation, a ready-made wiring harness, and installation and connection instructions. The brackets that come with the front grille are made of highly durable ASA (Acrylonitrile Styrene Acrylate), which is particularly known for its strength and excellent resistance to UV radiation. The brackets are also completely weather and chemical resistant, ensuring that the installation remains neat year after year.

Note! In many new cars, especially those equipped with LED and Xenon lights, the lights are controlled via the so-called CAN bus. For this reason, the lights no longer have their own power cable. If there is no cable in the trunk from which the excitation current can be tapped for the auxiliary light, the excitation will have to be taken from the car's CAN bus. Installing the auxiliary light on the CAN bus is slightly different from the traditional installation, and this connection requires a separate relay, such as the XBB - OBD Dongle & PowerUnit. If you suspect that you need a CAN relay for your connection, the car's importer or dealer will certainly help you with this.

Lazer Triple-R 750 GEN2

The Lazer Triple-R 750 Gen2 is an additional light panel that utilizes the latest LED and reflector technology, and also features a striking parking light that can be set to white or a stylish yellow-orange. The Triple-R 750 Gen2 is a high-performance light with a spot-like beam that is well suited for both road and off-road use. The light offers a whopping 4620 lm of light output and a range of 433 m (1 lux), which is an incredible achievement for a light of this size. The subtle design updates of the panel make the light blend even better into the front of modern, aesthetically pleasing cars. The aluminum frame, polycarbonate lens with a lifetime warranty (against breakage) and advanced Gore-Tex seal (which allows moisture to escape from the inside of the light) ensure that the light will not disappoint even in the toughest use. The perfect choice for both road and motorsports! Approved for road use (E9).

• Light output: 4620 lm
• Range: 433 m @ 1 lux - With two lights 612 m @ 1 lux
• Reference number: 2 x 35
• Dimensions of individual lamp: 230 x 73 x 105 mm (WxHxD)
• Weight of individual lamp: 1000 g

Lazer Triple-R 750 Wide GEN2

The Lazer Triple-R 750 Wide GEN2 lamp expands its series by introducing an additional light, which focuses on an even wider light pattern, where a bright main beam illuminates the road evenly from side to side. The Triple-R 750 Wide is equipped with a light output of 4620 lumens and a range of 293 m (@ 1 lux), and when two lamps are installed side by side, for example, the range increases to over 400 meters, while the light beam opens up even wider to illuminate embankments. The wide light pattern is achieved by combining high-power LEDs with a unique reflector technology, which means that the light beam does not form a single point-like and intense spot, but a wider main beam that directs light widely across the entire width of the road. Thanks to the wider beam, the reference number of the lamp has also been kept low (20), which allows the installation of more additional lights on the vehicle in an approved manner. In addition, the Triple-R 750 Wide is equipped with a neutral 5000K color temperature, which ensures excellent visibility even in challenging conditions. The neutral color temperature also helps you perceive your surroundings even when your eyes are already tired from the dark, as the lighting optimized for the eyes maximizes accuracy and sharpness.

• Light output: 4620 lm
• Range: 293 m @ 1 lux - With two lights 414 m @ 1 lux
• Reference number: 2 x 35
• Dimensions of individual lamp: 230 x 73 x 105 mm (WxHxD)
• Weight of individual lamp: 1000 g

Lazer Triple-R 750 Beacon GEN2

The Lazer Triple-R 750 Beacon GEN2 is the next generation of Lazer's popular Triple-R 750 product family, with even more features. In addition to the same impressive performance and orange/white parking light, the Beacon version has two different power modes, , a slightly wider beam, a special Welcome mode, Flash-to-Dim function and an R65-approved warning light, making it an excellent choice for both on-road and off-road use. The Triple-R 750 Beacon is specifically designed for the demands of heavy vehicles and construction machinery. In E-Boost mode, the manufacturer claims a whopping 5400 lumens of light output for its size and a range of up to 442 m (@ 1 lux). Thanks to its small size and low reference number (12.5), several luminaires can easily be installed in parallel, thereby further increasing both the range and width of the light beam. The Triple-R 750 Beacon is equipped with a neutral 5000K color temperature, which reduces eye strain and makes using the lights more pleasant.

• Light output: 5400 lm
• Range: 442 m @ 1 lux - With two lamps 625 @ 1 lux
• Reference number: 2 x 12.5
• Dimensions of individual lamp: 230 x 73 x 105 mm (WxHxD)
• Weight of individual lamp: 1000 g

Lazer Triple-R 750 Elite GEN2

The Lazer Triple-R 750 Gen2 is an led bar that utilizes the latest LED and reflector technology, and is also equipped with Lazer's E-BOOST technology. Thanks to the improved technology, the led bar provides a higher luminous flux, longer range and wider light pattern than the previous version. In E-BOOST mode, the led bar provides an incredible 5068 lm luminous flux and a range of 517 m (1 lux), which is quite an achievement for a bar of this size. The ledbar's fine-tuned and modern design means it blends in seamlessly wherever it is fitted, even on newer and more aesthetically designed vehicles. The patented E-BOOST technology means that the led bar can be used at lower power in road traffic to be E-approved (E9), and at higher power outside normal road traffic. Link to the product page for the extra light here.

• Light output: 5068 lm (E-Boost) / 1267 lm (E-Mark Mode)
• Range: 517 m @ 1 lux - With two lights 731 m @ 1 lux (E-Boost)
• Reference number: 2 x 12.5 (E-Mark Mode)
• Dimensions of individual lamp: 230 x 73 x 105 mm (WxHxD)
• Weight of individual lamp: 1000 g

Delivery content

• 2 x Lazer Triple-R 750 additional lights selected from product options
• Relay wiring harness (12V) for two lights
• Brand and model-specific mounts
• Anti-theft screws
• Installation and connection instructions

Installation guide

You can find the manufacturer's connection and installation instructions (EN) by clicking here (opens in a new window).
